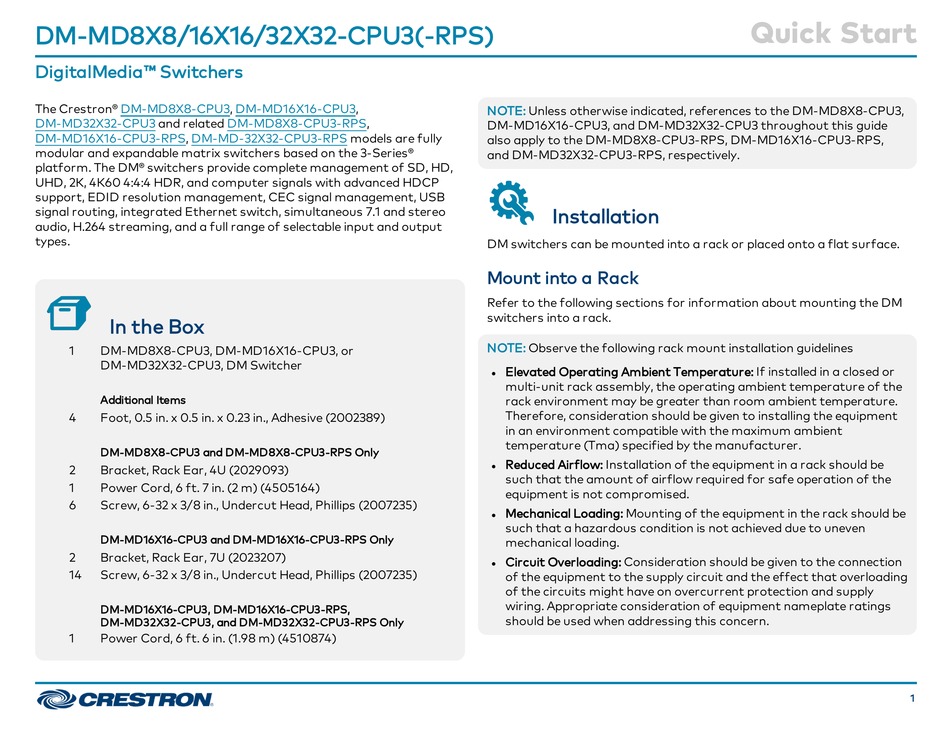

DM-MD8X8/16X16/32X32-CPU3(-RPS)
DigitalMedia™ Switchers

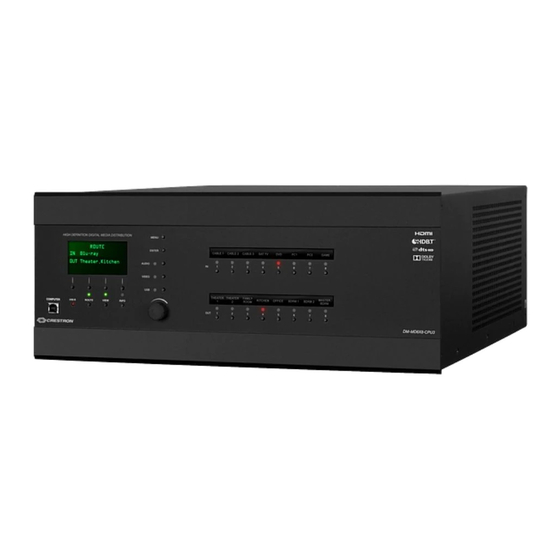

The Crestron® DM-MD8X8-CPU3, DM-MD16X16-CPU3,
DM-MD32X32-CPU3
and related DM-MD8X8-CPU3-RPS,
DM-MD16X16-CPU3-RPS,
DM-MD-32X32-CPU3-RPS
modular and expandable matrix switchers based on the 3-Series®
platform. The DM® switchers provide complete management of SD, HD,
UHD, 2K, 4K60 4:4:4 HDR, and computer signals with advanced HDCP
support, EDID resolution management, CEC signal management, USB
signal routing, integrated Ethernet switch, simultaneous 7.1 and stereo
audio, H.264 streaming, and a full range of selectable input and output
types.
In the Box
1
DM-MD8X8-CPU3, DM-MD16X16-CPU3, or
DM-MD32X32-CPU3, DM Switcher
Additional Items
4
Foot, 0.5 in. x 0.5 in. x 0.23 in., Adhesive (2002389)
DM-MD8X8-CPU3 and DM-MD8X8-CPU3-RPS Only
2
Bracket, Rack Ear, 4U (2029093)
1
Power Cord, 6 ft. 7 in. (2 m) (4505164)
6
Screw, 6-32 x 3/8 in., Undercut Head, Phillips (2007235)
DM-MD16X16-CPU3 and DM-MD16X16-CPU3-RPS Only
2
Bracket, Rack Ear, 7U (2023207)
14
Screw, 6-32 x 3/8 in., Undercut Head, Phillips (2007235)
DM-MD16X16-CPU3, DM-MD16X16-CPU3-RPS,
DM-MD32X32-CPU3, and DM-MD32X32-CPU3-RPS Only
1
Power Cord, 6 ft. 6 in. (1.98 m) (4510874)
NOTE:
Unless otherwise indicated, references to the DM-MD8X8-CPU3,
DM-MD16X16-CPU3, and DM-MD32X32-CPU3 throughout this guide
models are fully
also apply to the DM-MD8X8-CPU3-RPS, DM-MD16X16-CPU3-RPS,
and DM-MD32X32-CPU3-RPS, respectively.
DM switchers can be mounted into a rack or placed onto a flat surface.
Mount into a Rack
Refer to the following sections for information about mounting the DM
switchers into a rack.
NOTE:
Observe the following rack mount installation guidelines
Elevated Operating Ambient Temperature: If installed in a closed or
l
multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient temperature.
Therefore, consideration should be given to installing the equipment
in an environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
Reduced Airflow: Installation of the equipment in a rack should be
l
such that the amount of airflow required for safe operation of the
equipment is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
l
such that a hazardous condition is not achieved due to uneven
mechanical loading.
Circuit Overloading: Consideration should be given to the connection
l
of the equipment to the supply circuit and the effect that overloading
of the circuits might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Installation
Quick Start
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DigitalMedia DM-MD8X8-CPU3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron DigitalMedia DM-MD8X8-CPU3

  • Page 1 Quick Start DM-MD8X8/16X16/32X32-CPU3(-RPS) DigitalMedia™ Switchers The Crestron® DM-MD8X8-CPU3, DM-MD16X16-CPU3, NOTE: Unless otherwise indicated, references to the DM-MD8X8-CPU3, DM-MD32X32-CPU3 and related DM-MD8X8-CPU3-RPS, DM-MD16X16-CPU3, and DM-MD32X32-CPU3 throughout this guide DM-MD16X16-CPU3-RPS, DM-MD-32X32-CPU3-RPS models are fully also apply to the DM-MD8X8-CPU3-RPS, DM-MD16X16-CPU3-RPS, modular and expandable matrix switchers based on the 3-Series®...
  • Page 2 Quick Start DM-MD8X8/16X16/32X32-CPU3(-RPS) DigitalMedia™ Switchers Rack Ear Attachment (DM-MD8X8-CPU3 Shown) Reliable Earthing: Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips). Electrical Connection “This product must be connected to an earthed mains socket-outlet.”...
  • Page 3 Quick Start DM-MD8X8/16X16/32X32-CPU3(-RPS) DigitalMedia™ Switchers DMC-4KZ-C-DSP Input Card Connect the DMC Cards DMC cards consist of the DMC-CPU3 card and various input and output cards. The DMC-CPU3 card is included with the switchers. The input and output cards are sold separately and are installed at the factory prior to shipment of the switchers.
  • Page 4 To enable the DM IN or DM OUT port to use PoDM or PoDM+: For PoDM, connect the corresponding POE IN port to a compatible PoDM or PoE power source. Compatible power sources (sold separately) include the Crestron DM-PSU-8-PLUS, DM-PSU-16-PLUS, DM-PSU-ULTRA-MIDSPAN, and CEN-SWPOE-16. Third-party 802.3af or 802.3at PoE Power Sourcing Equipment (PSE) can also be used.
  • Page 5 Quick Start DM-MD8X8/16X16/32X32-CPU3(-RPS) DigitalMedia™ Switchers Powering DM 8G+ Devices Using PoDM Route Inputs Route inputs to one or more of the available outputs by using the front panel controls or the web interface. Route Inputs Using the Front Panel Controls To route inputs using the front panel controls: 1.
  • Page 6 1. Find the IP address of the device by using the Device Discovery Tool in In a DM system containing a single DM switcher, the DM switcher is the Crestron Toolbox™ software. the only DM device that uses an IP address in the public network. When 2.
  • Page 7 Connect to the XiO Cloud® Service Assign a Unique System ID Using the Front Panel The XiO Cloud® service allows supported Crestron devices across an enterprise to be managed and configured from one central and secure Controls location in the cloud.
  • Page 8 Quick Start DM-MD8X8/16X16/32X32-CPU3(-RPS) DigitalMedia™ Switchers DM-MD32X32-CPU3 Visit the Product Page Scan the QR code to visit the product page. www.crestron.com/model/6509619 DM-MD8X8-CPU3 DM-MD32X32-CPU3-RPS www.crestron.com/model/6509617 www.crestron.com/model/6509622 DM-MD8X8-CPU3-RPS www.crestron.com/model/6509620 DM-MD16X16-CPU3 www.crestron.com/model/6509618 DM-MD16X16-CPU3-RPS www.crestron.com/model/6509621...
  • Page 9 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, 3-Series, Crestron Toolbox, XiO Cloud, DM, and DM 8G+ are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Blu-ray is either a trademark or registered trademark of the Blu-ray Disc Association in the United States and/or other countries.
