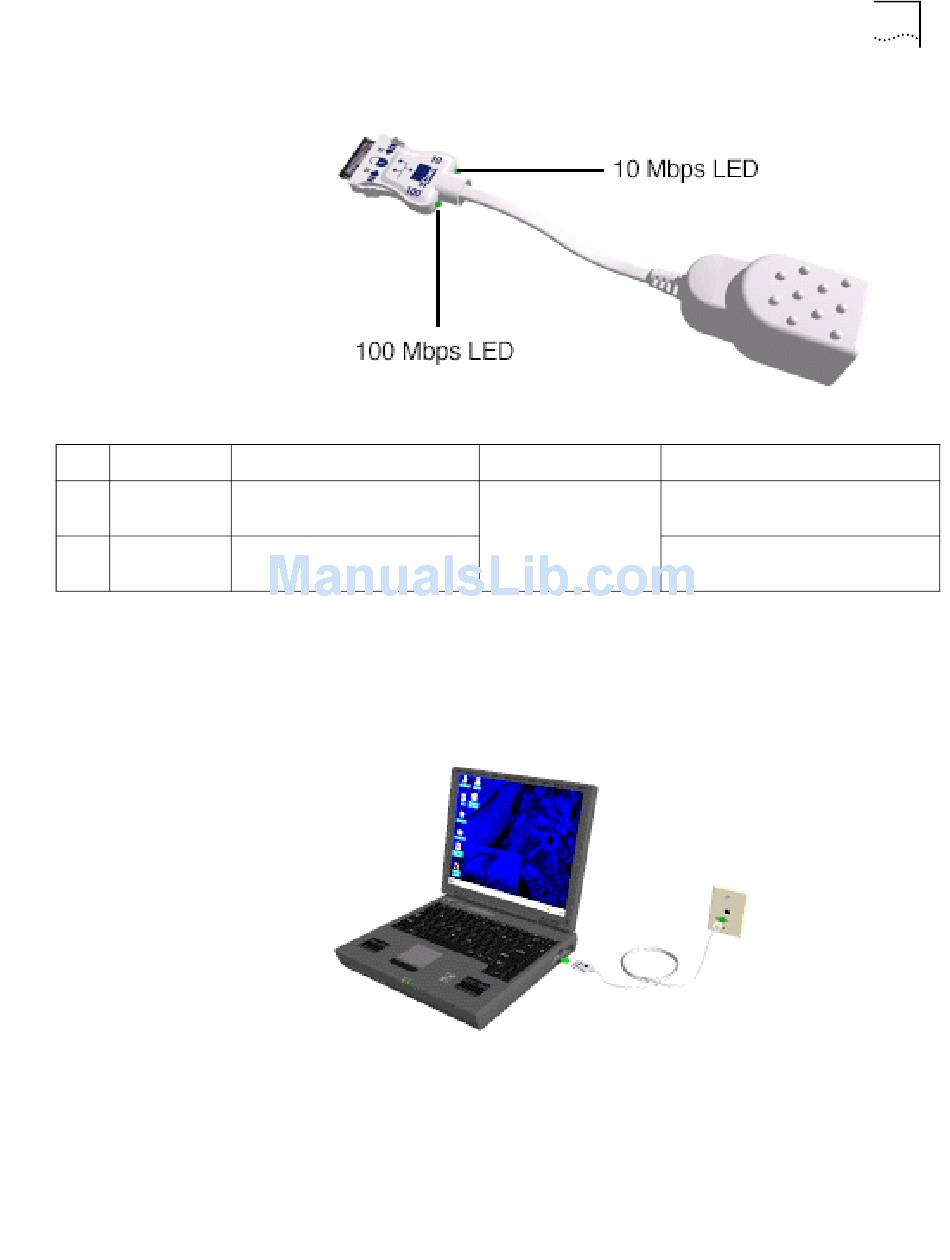

LAN Connector LEDs

LED Description
10 Link integrity
100 Link integrity
Connecting to a
Telephone Line
The LEDs on the network connector display the status of your network link.
Steady
Good 10BASE-T connection
between PC Card and hub
Good 100BASE-TX connection
between PC Card and hub
You can use the LEDs to verify link integrity, but the LAN+Modem card must be
connected to the network and the network drivers must be installed.
To connect the LAN+Modem card to a telephone line, attach the modem cable to
the modem port (See "Identifying the LAN+Modem Card Ports" on page 1). Next,
attach the other end of the modem cable to the telephone wall plug.
Blinking
Faulty connection.
Alternatively, speed set
manually but
connector attached to
wrong speed.
LAN Connector LEDs
Off
No connection between card and hub.
(Off when 100 LNK LED is on.)
No connection between card and hub.
(Off when 10 LNK LED is on.)
3
