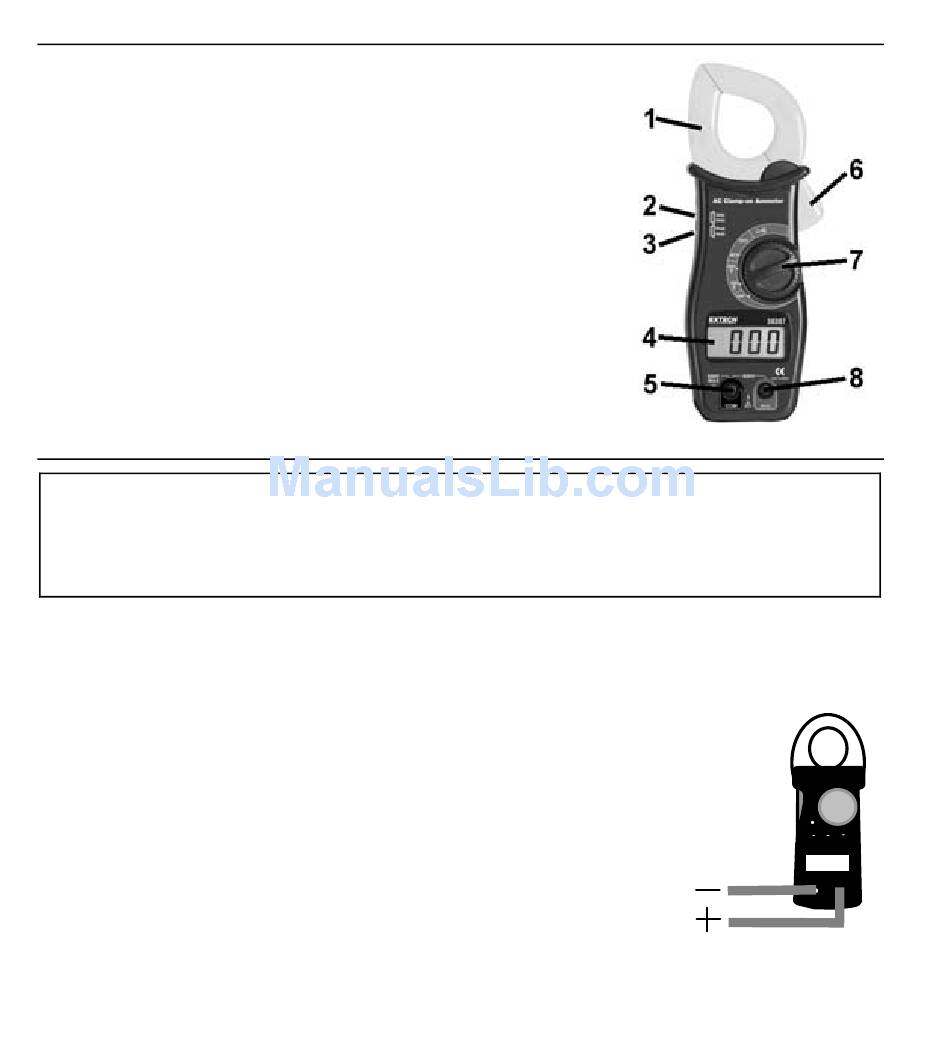

Meter Description

1. Transformer jaws
2. Data Hold button
3. Peak Hold button
4. LCD Display
5. COM Input Terminal
6. Jaw opening trigger
7. Function select switch
8. Voltage, Resistance Input Terminal

Operation

NOTICES: Read and understand all warning and precaution
statements listed in the safety section of this operation manual prior to
using this meter. Set the function select switch to the OFF position
when the meter is not in use.
AC/DC Voltage Measurements
1. Insert the black test lead into the negative COM terminal and the
red test lead into the positive V terminal.
2. Set the function switch to the AC or DC voltage
range position (ACV or DCV).
3. Connect the test leads in parallel to the circuit
under test.
4. Read the voltage measurement on the LCD
display.
