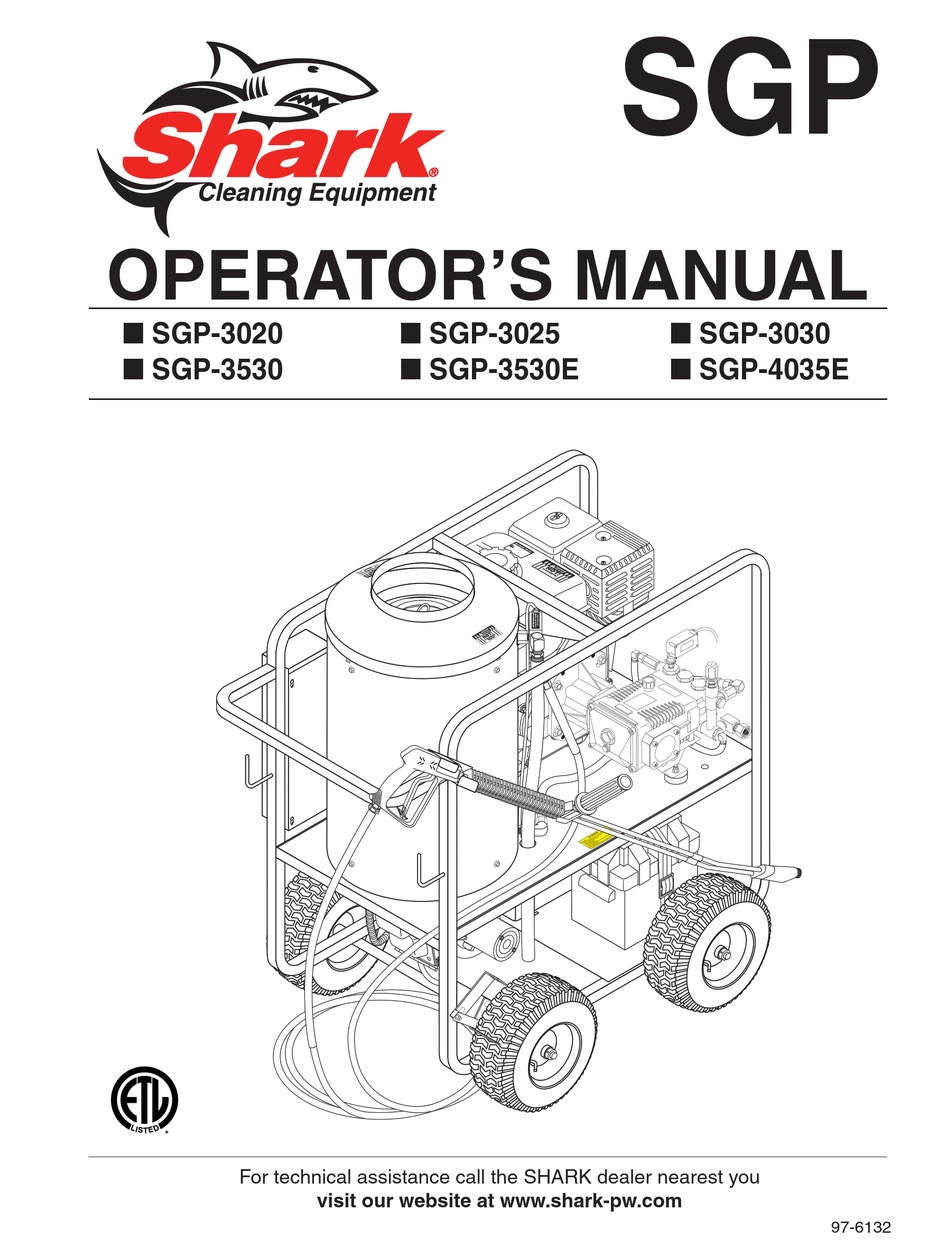

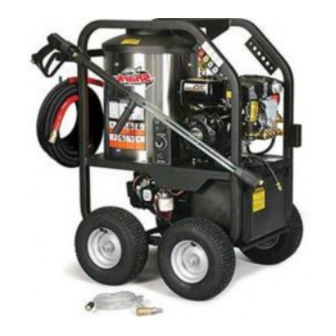

  • Page 1 OPERATOR’S MANUAL  SGP-3020  SGP-3025  SGP-3030  SGP-3530  SGP-3530E  SGP-4035E ® For technical assistance call the SHARK dealer nearest you visit our website at www.shark-pw.com 97-6132...

  • Page 2: Table Of Contents

    Burner Specifications VBA35 Unloader Exploded View and Parts List SG Pump Exploded View and Parts List 34-35 SG-1 Pump Exploded View and Parts List 36-37 SS Pump Exploded View and Parts List 38-39 Warranty Shark SGP • 97-6132 • REV. 4/07...

  • Page 3: Introduction & Important Safety Instructions

    SPRAy AWAy fROM utility company or the selling d. with an allowance made for expansion of the ELECTRICAL WIRING. distributor for specific details. fuel should the equipment be exposed to a higher ambient temperature. Shark SGP • 97-6132 • REV. 4/07...

  • Page 4: Important Safety Information

    14. Never make adjustments on through the pump. machine while in operation. 22. Never run pump dry or leave spray gun closed TRIGGER GUN kICkS longer than 1-2 minutes. bACk - hOLD WITh bOTh hANDS Shark SGP • 97-6132 • REV. 4/07...
  • Page 5 28. In oil burning models, use only kerosene, No. 1 home heating fuel, or diesel. If diesel is used, add a soot remover to every tankful. Follow the maintenance instructions specified in the manual. Shark SGP • 97-6132 • REV. 4/07...

  • Page 6: Component Identification

    Note: If trigger on spray gun is released for more than 1-2 minutes, water will leak from valve. Warm water will discharge from pump protector onto floor. This system prevents internal pump dam- age. Shark SGP • 97-6132 • REV. 4/07...

  • Page 7: Assembly Instructions

    Use 30 wt. (non detergent) oil. Garden hose Pump Water Inlet STEP7: Connect the garden hose to pump water inlet. Inspect inlets. CAUTION: Do not run the pump without water or pump damage will result. Shark SGP • 97-6132 • REV. 4/07...

  • Page 8: Operating Instructions

    Push the choke lever to the "Closed" When the engine is not in use, leave the fuel valve in position. To restart a warm engine, leave the choke the "OFF" position. lever in the "Open" position. Shark SGP • 97-6132 • REV. 4/07...
  • Page 9 Selection of high or low pressure is accompanied by turning the handle. apply detergent select the black Note: High pressure nozzle must be inserted at end of wand to obtain nozzle. high pressure. To apply soap read operator's manual. Shark SGP • 97-6132 • REV. 4/07...

  • Page 10: Detergents And Cleaning Tips

    Apply safety latch to spray gun. Remove black soap nozzle from the quick coupler. Select and install the desired high pressure nozzle. NOTE: You can also stop detergent from flowing by simply removing detergent siphon tube from bottle. Shark SGP • 97-6132 • REV. 4/07...

  • Page 11: Shut-Down And Clean Up

    3. Pour about one teaspoon of engine oil through the gine manufacturer's manual for service and maintenance spark plug hole, pull the starter grip several times and replace the plug. Then pull the starter grip slowly of the engine. Shark SGP • 97-6132 • REV. 4/07...

  • Page 12: Maintenance

    Reinstall wand assembly to spray Damage due to freezing is not covered by warranty. gun. Adhere to the following cold weather procedures when- ever the washer must be stored or operated outdoors under freezing conditions. Shark SGP • 97-6132 • REV. 4/07...
  • Page 13 Adjustment 5/32" Electrode Screw Pressure Adjustment Screw Return Line 7-00098 fuel Pump 1/4" To fuel Nozzle Tank 5/32" Top view Side view Periodically check wiring connections. If necessary to adjust electrodes, use diagram. Shark SGP • 97-6132 • REV. 4/07...

  • Page 14: Fuel Pressure Adjustment

    3. Lift the coil out of the outer wrap. CAUTION: The coil weighs about 80 lbs. Use proper lifting techniques. 4. Clean, repair and replace the coil by reversing the above steps. Shark SGP • 97-6132 • REV. 4/07...

  • Page 15: Troubleshooting

    Burner nozzle is clogged Clean as required. Thermostat has malfunctioned Test and replace if needed. Fuel solenoid has malfunctioned Test and replace if needed. Shark SGP • 97-6132 • REV. 4/07...

  • Page 16: Troubleshooting

    Oil seal is worn Check and replace if necessary. WATER IN OIL Air humidity is high Check and change oil twice as often. Packing is worn or bad Check and replace if necessary Shark SGP • 97-6132 • REV. 4/07...
  • Page 17 Control switch is defective Replace switch. There is a loose wire Check and replace or tighten wiring. Burner motor is defective Replace motor. RELIEf vALvE Relief valve is defective Replace or repair relief valve. LEAkS WATER Shark SGP • 97-6132 • REV. 4/07...

  • Page 18: Maintenance & Oil Change Charts

    Annually (if there are any signs of wear) OIL CHANGE RECORD NO. Of OPERATING NO. Of OPERATING DATE OIL ChANGED DATE OIL ChANGED hOURS SINCE hOURS SINCE MONTh/DAy/yEAR MONTh/DAy/yEAR LAST OIL ChANGE LAST OIL ChANGE Shark SGP • 97-6132 • REV. 4/07...

  • Page 19: Exploded View And Parts List - 3020, 3025

    ExPLODED vIEW - 3020, 3025 MODELS for brake Detail See view A-A for Detail See Control box Illus. 42,75,76 Regulator (Reversed view) Shark SGP • 97-6132 • REV. 4/07...
  • Page 20 Filter, Parker Fuel/Oil/H (302017) (10 Micron), Generic 2-00601 Elbow, 1/2" JIC x 3/8" Female, 90° (302517) 5-3329 Unloader, VBA35 2-1100 Adapter, 1/2" x 1/2" Pipe 2-10942 Swivel, 1/2" MP x 3/4" GHF w/Strainer Shark SGP • 97-6132 • REV. 4/07...
  • Page 21 Plug, 1/4" Countersunk 90-1999 Screw, 10/32" x 3/4" BH SOC CS 90-1007 Bolt, 5/16" x 1", NC HH  Not Shown 90-017 Nut, 10/32" Kep 2-10866 Hose Barb, 1/4" Barb x 3/8", Double Shark SGP • 97-6132 • REV. 4/07...

  • Page 22: Exploded View And Parts List - 3030, 3530, 3530E, 4030E

    Exploded view - 3030, 3530, 3530E, 4030E Models Detail See Control box Illus. Reversed view of Component for brake honda Electric Detail See Start Only view A-A (Enlarged) Shark SGP • 97-6132 • REV. 4/07...
  • Page 23 ExPLODED vIEW - 3030, 3530, 3530E, 4030E MODELS brake Assy. Detail Shark SGP • 97-6132 • REV. 4/07...
  • Page 24 (3030, 3530E, 3530) 2-10942 Swivel, 1/2" MP x 3/4" GHF 10-09004 Label, Hot Water Outlet w/Strainer 2-11063 Plug, Push-On, Oil Drain, Honda 2-1088 Hose Barb, 1/4" Barb x 1/8" ML (3030, 3530, 3530E) Pipe, 90° Shark SGP • 97-6132 • REV. 4/07...
  • Page 25 Nipple, 1/2" x 2-1/2", Galvanized (3030, 3530, 3530E) 4-02100000 Hose, 1/4 14" 90-19960 Screw, 3/8" x 1-1/4" Whiz Loc (3030, 3530, 3530E) 2-1089 Elbow, 1/4" Hose Barb x 1/4" Pipe, (Steam Option) 2-10818 Reducer, M14x1/4"F Shark SGP • 97-6132 • REV. 4/07...
  • Page 26 CONTROL PANEL - 3030, 3530, 3530E, 4035E MODELS Shark SGP • 97-6132 • REV. 4/07...

  • Page 27: Control Panel- 3030, 3530, 3530E, 4030E & Parts List

    95-07102231 Box, Electric, 16 Gauge MS 90-19942 Screw, 10/32" x 3/4", HEX 90-2006 Nut, 5/16" Hex 2-011681 Cap, Capacitor, 1.37 x 1.5 x .06 6-0611 Rectifier, Bridge (3530E, Blk, w/o Hole (3030, 3530) 4035E) Shark SGP • 97-6132 • REV. 4/07...

  • Page 28: Control Panel- 3020, 3025 & Parts List

    Ground Label 90-19708 Screw, 1/4" x 1-1/4" Hex, Whiz 90-1994 Screw, 10/32" x 1-1/4" (Ground) 90-19711 Screw, 1/4" x 1/2" HH NC, Whiz Loc 90-200012 Nut, 1/4" Whiz Loc 90-2000 Nut, 1/4", ESNA, NC Shark SGP • 97-6132 • REV. 4/07...

  • Page 29: Hose & Spray Gun Assembly

    (3030, 3530, 3530E, 4035E) (3030) 4-011183 Detergent Injector Assy #2 4-12803025 Nozzle SAQMEG 2503, Green (3020, 3025) (3030) 4-12803040 Nozzle SAQMEG 4003, White (3030) 4-12803000 Nozzle SAQMEG 0003, Red (3030)  Not Shown Shark SGP • 97-6132 • REV. 4/07...

  • Page 30: Hose Reel Option

    4-02755030 Hose Reel, 100' Non-Pivot, E-ZEE w/Pin Lock 90-1996 Screw, 3/" x 3/4" HH NC, Whiz Loc 4 90-20040 Nut, 3/8" Flange, Whiz Loc, NC 95-072900901 Bracket, E-ZEE Hose Reel Right, Wrinkle Black Shark SGP • 97-6132 • REV. 4/07...

  • Page 31: Downstream Injector Assembly

    3-12021 Injector, Detergent, Non-Adjust #3, (4-011184) 3-1202 Injector, Detergent, Non-Adjust #2, (4-011183) 2-9040 Clamp, Hose, UNI .46 - .54 4-02080000 Tube, 1/4" x 1/2", Clear Vinyl 6 ft. 2-1904 Strainer, 1/4", Hose Barb Shark SGP • 97-6132 • REV. 4/07...

  • Page 32: Burner Specifications

    7-578727 303037 7-00031 7-01215 7-515242 7-21699 7-00098 7-21754U 7-578727 353037 7-00031 7-0101 7-515242 7-21699 7-00098 7-21754U 7-578727 353037E 7-00031 7-0101 7-515242 7-21699 7-00098 7-21754U 7-578727 403537E 7-00031 7-0102 7-515242 7-21699 7-00098 7-21754U 7-578727 Shark SGP • 97-6132 • REV. 4/07...

  • Page 33: Vba35 Unloader Exploded View And Parts List

    70-140734 Connector 70-000918 Teflon Ring kit A 70-262813 O-Ring Repair Kit 70-120611 Stem kit b 70-262814 Outlet Kit 70-140702 Connector, Female kit C 70-262815 Stem Repair Kit 70-060119 O-Ring A, B 70-090004 Spring Shark SGP • 97-6132 • REV. 4/07...

  • Page 34: Sg Pump Exploded View And Parts List

    Valve Assembly 70-020011 Needle Roller Bearing 70-060122 O-Ring Ø2.62 x 18.77 70-050096 Engine Flange 70-160147 Valve Plug 70-140002 Spring Washer 70-060308 Washer, Copper 70-180126 Flange Screw 70-160121 Brass Plug G1/4 70-180118 Manifold Stud Bolt Shark SGP • 97-6132 • REV. 4/07...
  • Page 35 15 mm Seal Packing 15 mm Seals ITEM NUMBERS 2, 3, 4, 5, 38, 39, 40, 3, 5, 6 11, 12, 13 INCLUDED 6, 7 41, 42 NUMBER OF CYLINDERS KIT WILL SERVICE Shark SGP • 97-6132 • REV. 4/07...

  • Page 36: Pump Exploded View And Parts List

    O-Ring Ø2.62 x 18.77 70-160147 Valve Plug 70-020010 Needle Roller Bearing 70-060308 Washer, Copper 70-050055 Engine Flange 70-160121 Brass Plug G1/4 70-140002 Spring Washer 70-180118 Manifold Stud Bolt 70-180132 Flange Screw 70-140001 Washer Shark SGP • 97-6132 • REV. 4/07...
  • Page 37 Complete Valve 15mm Seal Packing 15mm Seals ITEM NUMBERS 2, 3, 4, 5, 39, 40, 41, 3, 5, 6 11, 12, 13 INCLUDED 6, 7 42, 43 NUMBER OF CYLINDERS KIT WILL SERVICE Shark SGP • 97-6132 • REV. 4/07...

  • Page 38: Ss Pump Exploded View And Parts List

    O-Ring Ø2.62 x 20.29 70-140304 Spring Washer 70-160130 Valve Plug 70-180128 Flange Screw 70-180103 Manifold Stud Bolt 70-180220 Engine Screw, 5/16" 70-140001 Washer 70-140051 Washer 70-060306 Copper Washer 3/8" 70-140103 Spring Washer 70-160117 Brass Plug 3/8" Shark SGP • 97-6132 • REV. 4/07...
  • Page 39 Seal Packing Plunger 15mm Complete Valve 15mm Seals 15mm ITEM NUMBERS 3, 4, 5, 44, 45, 46, 47, 4, 5, 7 12, 13, 14 INCLUDED 6, 7, 8 NUMBER OF CYLINDERS KIT WILL SERVICE Shark SGP • 97-6132 • REV. 4/07...
  • Page 41 PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representa- tion or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. While SHARK attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product.
  • Page 42 Form #97-6132 / 8.914-335.0 • Revised 4/07 • Printed in U.S.A.
