Summary of Contents for advidia A-47

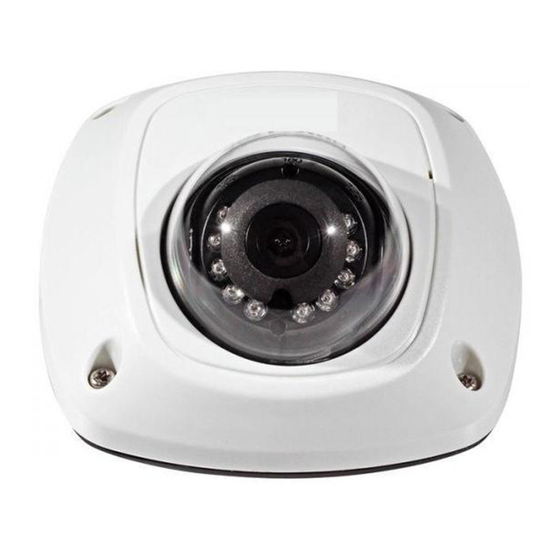

- Page 1 A-47 IR Network Mini Dome Camera Quick Operation Guide...
- Page 2 A-47 IR Mini Dome Camera • Quick Operation Guide Thank you for purchasing the Advidia A-47 IR mini dome camera. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual applies to the following models.
-
Page 3: Regulatory Information
A-47 IR Mini Dome Camera • Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 A-47 IR Mini Dome Camera • Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instruction
A-47 IR Mini Dome Camera • Quick Operation Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. - Page 6 A-47 IR Mini Dome Camera • Quick Operation Guide specifications for detailed information. ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket.
- Page 7 A-47 IR Mini Dome Camera • Quick Operation Guide sensor will not be exposed to the laser beam. ● Do not place the camera in extremely hot, cold (the operating temperature shall be-30℃~+60℃,or -40°C ~ 60°C if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
-
Page 8: Table Of Contents
A-47 IR Mini Dome Camera • Quick Operation Guide Table of Contents 1 Appearance Description ..............8 2 Installation ..................10 Ceiling Mounting ............11 Ceiling Mounting with a Gang Box ........ 15 Pendant Mount Installation ......... 177 Wall Mount Installation ..........200 Install the Micro SD Card .......... -
Page 9: Appearance Description
A-47 IR Mini Dome Camera • Quick Operation Guide 1 Appearance Description Figure 1-1 Overview (1) - Page 10 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 1-2 Overview (2) Table 1-1 Physical Description Description Housing Camera Body Micro SD Card Slot Network Cable Lens IR LED Power Cable Audio/Alarm Cables- Not included on A-47 IR Wi-Fi Antenna- Not included on A-47 IR...
-
Page 11: Installation
A-47 IR Mini Dome Camera • Quick Operation Guide 2 Installation Before you start: Make sure the device in the package is in good condition and all the assembly parts are included. Make sure all the related equipment is powered off during the ... -
Page 12: Ceiling Mounting
A-47 IR Mini Dome Camera • Quick Operation Guide the lens causing reflection. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly. - Page 13 A-47 IR Mini Dome Camera • Quick Operation Guide 2. Use the supplied Allen wrench to loosen the screws on the camera’s housing to remove. Figure 2-2 Disassemble the Camera 3. Attach the adapter plate to the ceiling with the supplied screws.
- Page 14 A-47 IR Mini Dome Camera • Quick Operation Guide 4. Attach the camera housing with the supplied screws. Figure 2-4 Attach the camera body 5. Connect the power cable (if not using PoE), and network cable, Use pliers to remove the removable tab and route the cables via side outlet (as shown in Figure 2-3) if no cable hole is drilled in step 1, and connect the corresponding cables.
- Page 15 A-47 IR Mini Dome Camera • Quick Operation Guide 6. View the image via the web browser. 7. Slightly loosen the hex screw beside the RESET button to adjust the surveillance angle. 8. Use the supplied adjusting tool to adjust the pan [±30°], tilt [0~80°], and rotation direction [0~360°].
-
Page 16: Ceiling Mounting With A Gang Box
A-47 IR Mini Dome Camera • Quick Operation Guide Figure 2-7 Install the Front Cover 11. Remove the protective film carefully to complete the installation. Do not remove the protective film until the installation is complete. To avoid fingerprints, do not touch the inside dome of the ... - Page 17 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 2-8 Attach the Adapter Plate 2. Attach the camera body to the adapter plate with the supplied PM4X8 screws. Figure 2-9 Attach camera body 3. Connect the power cable (if not using PoE), and network cable.
-
Page 18: Pendant Bracket Installation
A-47 IR Mini Dome Camera • Quick Operation Guide set screws on the front cover. Figure 2-10 Install the Front Cover 5. Tear off the protective film carefully to complete the installation. Do not remove the protective film until the installation is complete. - Page 19 A-47 IR Mini Dome Camera • Quick Operation Guide The optional pendant mount for the A-47 IR is the A-46-PM 2. Attach the adapter plate to the ceiling bracket with the supplied PM4X8 screws. Figure 2-11 Attach the Adapter Plate...
- Page 20 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 2-12 Attach camera body 4. Place the camera housing over the camera body and tighten the set screws to complete the installation.
-
Page 21: Wall Bracket Installation
Wall Bracket Installation Steps: 1. Install the wall bracket to the wall with the supplied screws in the wall bracket package. The optional wall mount with junction box for the A-47 IR is part# A-46-WM. Figure 2-14 Install Wall Bracket... - Page 22 A-47 IR Mini Dome Camera • Quick Operation Guide 2. Fix the adapter plate to the wall bracket. Figure 2-15 Attach the Adapter Plate 3. Attach the camera body to the wall bracket with the supplied screws. Figure 2-16 Install the Camera 4.
-
Page 23: Install The Micro Sd Card
housing with your hands. Install the Micro SD Card The A-47 IR supports local storage; please refer to the following steps to install the micro SD card. Steps: 1. Remove the housing by loosening the set screws on it. - Page 24 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 2-18 Remove the housing 2. Insert the micro SD card to the card slot until you hear a click. 3. To Remove the SD card, push it back in slightly so it will eject.
-
Page 25: Setting The Network Camera Over The Lan
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the Advidia Camera finder utility to find and change the IP of network camera. - Page 26 A-47 IR Mini Dome Camera • Quick Operation Guide Search online devices automatically: After launching the Advidia A Series Camera finder software, it will automatically search for A series camera every 15 seconds from the subnet where your computer is connected.
-
Page 27: Modify Device Information
A-47 IR Mini Dome Camera • Quick Operation Guide Devices will be displayed in the list within 15 seconds after it goes online; it will be removed from the list in 45 seconds after it goes offline. Search online devices manually:... - Page 28 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 3-3 Select a Device Figure 3-4 Modify Network Parameters 3. Enter the IP address of network camera in the address field of the web browser to view the live video.
- Page 29 A-47 IR Mini Dome Camera • Quick Operation Guide The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”. For accessing the network camera from different subnets, please set the gateway for the network camera after you log...
-
Page 30: Accessing Via Web Browser
A-47 IR Mini Dome Camera • Quick Operation Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher... - Page 31 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation...
- Page 32 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 4-2 Download Plug-in...
- Page 33 A-47 IR Mini Dome Camera • Quick Operation Guide Figure 4-3 Install Plug-in (1) Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to...
