www.Advidia.com

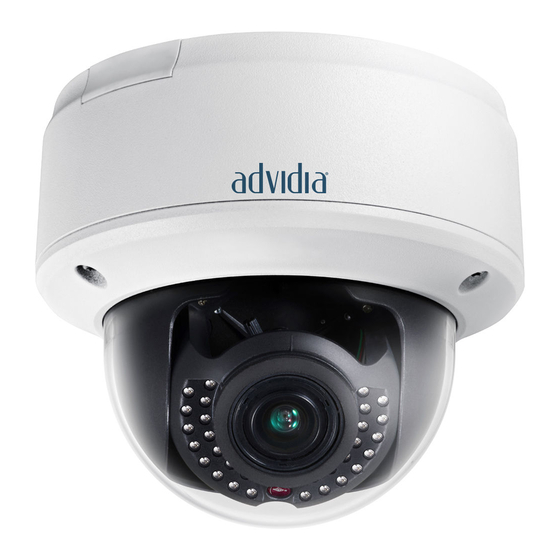

Quick Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for advidia A-44

Summary of Contents for advidia A-44

  • Page 1 Quick Setup Guide...

  • Page 2: Table Of Contents

    Advidia A-44 Dome Camera Table of Contents Camera Physical Description ......................3 Installation ............................5 Search and Modify IP ........................8 Preview via Web Browser....................... 11  Channel Parameters DisplaySetting ................... 14  Channel Parameters Video Settings .................... 15 ...

  • Page 3: Camera Physical Description

    Advidia A-44 Dome Camera A. Camera Physical Description Serial Description 10M/100M self-adaptive Ethernet interface INITIAL SET: Reset the camera AUDIO OUT: Audio output interface MIC IN: Audio input interface D+, D-: RS-485 interface 1A, 1B, 2A, 2B: Alarm output interface...
  • Page 4 Advidia A-44 Dome Camera 4/10/2012 Page 4...

  • Page 5: Installation

    Advidia A-44 Dome Camera B. Installation Note:  Please check if all the items on the package list have been included with your camera.  Read the following contents carefully before the installation.  Make sure that all the related equipment is power-off during the installation.
  • Page 6 Advidia A-44 Dome Camera Step 2: Loosen the set screws with a hexagonal screw driver (attached with the camera), and take down the dome cover. Step 3: While viewing the video on the monitor, adjust the camera’s view angle for your need.
  • Page 7 Advidia A-44 Dome Camera Step 4: Install the dome cover and tighten the screws. 4/10/2012 Page 7...

  • Page 8: Search And Modify Ip

    Advidia A-44 Dome Camera C. Search and Modify IP SADP (Search Active Devices Protocol) software can automatically search the IP address of network cameras in the same local area network (LAN) with connection diagram as following: 4/10/2012 Page 8...
  • Page 9 Advidia A-44 Dome Camera The operation of searching and modifying IP address is described as following: 1. Install the SADP software, and then run the “sadpdlg.exe”. 2. Search IP address 4/10/2012 Page 9...
  • Page 10 Advidia A-44 Dome Camera 3. Modify IP address. 4/10/2012 Page 10...

  • Page 11: Preview Via Web Browser

    Advidia A-44 Dome Camera D. Preview via Web Browser The default IP of network cameras is ‘192.0.0.64’ with ‘admin’ as the administrator, Note: ‘12345’ as the password, and ‘8000’ as the default port. For monitoring camera images, a computer running the Microsoft Windows Operating System and Internet Explorer (Version 6.0 or later) are required.
  • Page 12 Advidia A-44 Dome Camera 2. Input the IP address of the camera and press [Enter], and then click the dialog box that pops 3. Click [Run] to install the ActiveX control. 4/10/2012 Page 12...
  • Page 13 Advidia A-44 Dome Camera 4. Input “Username” (Default: admin), “Password” (Default: 12345) and “Port” (Default: 8000) of the camera, then click [Login] 5. View the image 4/10/2012 Page 13...

  • Page 14: Channel ParametersDisplaysetting

    Advidia A-44 Dome Camera E. Web Interface Configuration Channel ParametersDisplaySetting According to different requirements, enable the display of Date&Time and Week by clicking the checkbox. Different date formats can be selected. There are two Time format: 24 hour and 12 hour.

  • Page 15: Channel ParametersVideo Settings

    Advidia A-44 Dome Camera Channel ParametersVideo Settings Parameter Description Channel Name Input the channel name for your need Encode Parameters Main stream or Sub stream optional Stream Type Video&Audio or Video optional Resolution Select the resolution for your need Image Quality...

  • Page 16: Channel ParametersMotion Detection Setting

    Advidia A-44 Dome Camera Video Encode Type Select the video encode type for your need Channel ParametersMotion Detection Setting Select the checkbox of Enable motion detection to enable this function. Zone Settings:Click Start draw button to draw motion detection zone by clicking and dragging the mouse in the live video image.

  • Page 17: Channel ParametersFront Para Config

    Advidia A-44 Dome Camera Channel ParametersFront Para Config In this page, user can adjust the parameters like brightness, contrast, saturation, sharpness, etc. Shutter: User can set the shutter time according to the different camera models. IrisMode:There are two modes: IrisFirst and manual optional.

  • Page 18: Network ParametersNtp Setting

    Advidia A-44 Dome Camera Network ParametersNTP Setting Click the checkbox of Enable NTP to enable this function. Input the Server Address and Port of NTP. If the public network is applied, please input the NTP Server Address with provision of time sync service, e.g., 210.72.145.44.

  • Page 19: Alarm ParametersAlarm Input Setting

    Advidia A-44 Dome Camera Alarm ParametersAlarm Input Setting Set the type of Relay Status to NC or Note: Please reboot the network camera to validate the modified parameters. The Linkage can be selected to E-mail link, Trigger alarm output or Trigger recording.

  • Page 20: User Management

    Advidia A-44 Dome Camera User Management When the current login user is admin, it is allowed to create other users. Up to 15 users can be created. Add User Click Add to enter the settings interface as shown here. Input the user name,...

  • Page 21: Adding Camera To Monitor Station

    Advidia A-44 Dome Camera F. Adding Camera to Monitor Station Using Auto discovery, enter the default credentials described above and click Start. Using Manual add on, choose to add a camera and select the following from the dropdown: 4/10/2012 Page 21...
  • Page 22 Advidia A-44 Dome Camera 4/10/2012 Page 22...
