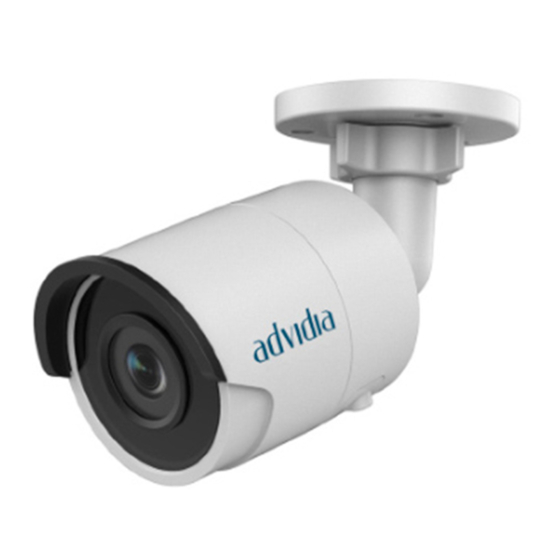

- Page 1 Network Bullet Camera Quick Start Guide...
- Page 2 Network Bullet Camera·Quick Start Guide About this Manual This Manual is applicable to A-18, A-28, A-38 Network Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 Network Bullet Camera·Quick Start Guide Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 Network Bullet Camera·Quick Start Guide EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted...
- Page 5 Network Bullet Camera·Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 6 Network Bullet Camera·Quick Start Guide ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
- Page 7 Network Bullet Camera·Quick Start Guide ● Do not place the camera in extremely hot, cold (the operating temperature shall be-30°C ~+60°C, dusty or damp locations, and do not expose it to high electromagnetic radiation. ● To avoid heat accumulation, good ventilation is required for operating environment.
-
Page 8: Table Of Contents
Network Bullet Camera·Quick Start Guide Table of Contents 1 Appearance Description ..............8 Overview of Type I Bullet Camera(A-18, A-38) ....8 Overview of Type II Bullet Camera(A-28) ....... 10 2 Installation ..................12 Installation of Memory Card ......... 13 Installation of the Bullet Camera ........ -
Page 9: Appearance Description
Network Bullet Camera·Quick Start Guide 1 Appearance Description Overview of Type I Bullet Camera(A-18, A-38) - Page 10 Network Bullet Camera·Quick Start Guide Type I Bullet Camera Description Description Description Mounting Base Lens Back Case Sun Shield Front Case Power Cable Reset Button GND Screw 10/100M Self-adaptive Ethernet Interface Type I camera does not support the function of Wi-Fi or SD card. ...
-
Page 11: Overview Of Type Ii Bullet Camera(A-28)
Network Bullet Camera·Quick Start Guide Overview of Type II Bullet Camera(A-28) Type II Bullet Camera... - Page 12 Network Bullet Camera·Quick Start Guide Description Description Description Mounting Base Grounding Screw 10/100M Self-adaptive Back Case Ethernet Interface (PoE) Front Case Power Supply (DC 12V) Lens Memory Card Slot Sun Shield Reset Button This type of bullet camera supports PoE power supply. You can ...
-
Page 13: Installation
Network Bullet Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC, please make sure your power supply matches with your camera. -
Page 14: Installation Of Memory Card
Network Bullet Camera·Quick Start Guide Installation of Memory Card Type II and Type III camera support memory card function. Follow the steps to mount and unmount a memory card. Steps: 1. Unscrew the cover on back case to expose memory card slot. Unscrew the Cover 2. -
Page 15: Installation Of The Bullet Camera
Network Bullet Camera·Quick Start Guide 3. (Optional)To unmount the memory card, push to get it ejected. 4. Screw the cover back to the camera. Installation of the Bullet Camera Both wall mounting and ceiling mounting are suitable for the bullet camera. - Page 16 Network Bullet Camera·Quick Start Guide Secure the Camera to the Ceiling 4. Connect the cables and power on the camera to view live view image. 5. Adjust the surveillance angle. Adjusting Nut Pan: 0° to 360° Rotate: 0° to 360° Tilt: 0°...
-
Page 17: Installation Of Network Cable Water-Proof Jacket
Network Bullet Camera·Quick Start Guide 3). Adjust the tilt direction [0° to 90°]. 4). Rotate the camera [0° to 360°] to adjust the lens to the surveillance angle. 5). Tighten the adjusting nut to complete the installation. Installation of Network Cable Water-proof Jacket Purpose: If the camera is installed outdoor, you can adapt the water-proof... - Page 18 Network Bullet Camera·Quick Start Guide Components Waterproof Endcap Waterproof Rubber Gasket Lock Nut Network Cable from Router/Switch Align the snap and notch. i. Insert into ⑤ ④ ii. Secure with ⑥ ④ Camera Switch/Router Water-proof Accessory Installation Steps:...
- Page 19 Network Bullet Camera·Quick Start Guide Feed the plugless network cable ⑦ through the lock nut ⑥, waterproof rubber gasket ⑤ (rubber gasket inset ridge must face waterproof endcap), and the water-proof endcap ④ in order. Crimp an RJ-45 network plug ③onto the end of the cable, taking care to insert the twisted pairs of wires in correct order.
-
Page 20: Setting The Network Camera Over The Lan
Network Bullet Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.
