- Page 1 Advidia A-44 & A-54 Installation Manual...
- Page 2 Installation Manual of Network Camera Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. This manual may contain inaccuracies or printing errors, and the content is subject to change without notice.
-
Page 3: Safety Instruction
Installation Manual of Network Camera Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are neglected. Cautions: Injury or equipment damage may be caused if any of these cautions are neglected. - Page 4 Installation Manual of Network Camera Notice: Make sure the power supply voltage is correct before using the camera. Do not drop the camera or subject it to physical shock. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.
-
Page 5: Table Of Contents
Installation Manual of Network Camera Table of Contents CHAPTER 1 INTRODUCTION .......................... 1 ............................1 PPLICATIONS ............................1 REPARATIONS CHAPTER 2 DOME CAMERA INSTALLATION ....................2 A-44/A-54 ........................2 AMERA 2.1.1 Appearance Description ........................2 2.1.2 Installation ............................3... -
Page 6: Chapter 1 Introduction
Applying the latest processing chip and hardware platform, Advidia network cameras can be widely applied to various surveillance and image processing systems with high reliability and stability. -
Page 7: Chapter 2 Dome Camera Installation

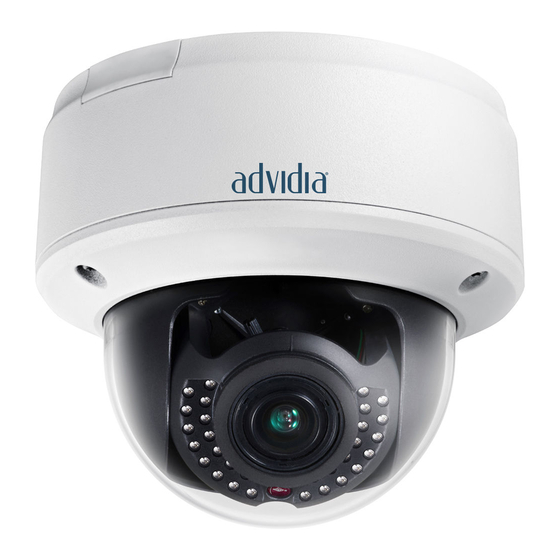

A-44 & A-54 Installation Manual Chapter 2 Dome Camera Installation 2.1 Dome Camera A-44, A-44IR & A-54 2.1.1 Appearance Description Camera description: Overview Figure 2-1 Description Table 2-1 Description 10M/100M self-adaptive Ethernet interface INITIAL SET: Reset button AUDIO OUT: Audio output interface... -
Page 8: Installation
A-44 & A-54 Installation Manual Wiring Diagram Figure 2-2 2.1.2 Installation Ceiling mounting: Note: If required, you can use a plier to remove the clip (one or two) on the side of the back box and then route cables through the opening to secure the cables on the ceiling. - Page 9 A-44 & A-54 Installation Manual Mount the Camera Figure 2-4 2. Loosen the set screws with the hex key (supplied) to remove the lower dome. Remove the Lower Dome Figure 2-5 3. Connect the RCA analog video output toa monitor to view the image of the camera.
- Page 10 A-44 & A-54 Installation Manual Adjust the image Figure 2-6 4. Reinstall the lower dome and tighten the screws. Reinstall the Lower Dome Figure 2-7 In-ceiling mounting: Steps: 1. Secure the mounting base to the in-ceiling mounting base with screws.
- Page 11 A-44 & A-54 Installation Manual Secure the Mounting Base Figure 2-8 2. Push the dome camera to the in-ceiling mounting base, rotate the dome camera for 10 degrees counterclockwise and then fasten the lock screws to fix the camera. Fix the Camera Figure 2-9 3.
- Page 12 A-44 & A-54 Installation Manual in-ceiling mounting base into the hole. Note: The thickness of the ceiling should be less than 30 mm. Mount the Camera Figure 2-10 4. It is strongly recommended that you use a safety cable to secure the in-ceiling mounting base to the roof.
- Page 13 A-44 & A-54 Installation Manual Secure the Camera Figure 2-12 6. Remove the lower dome and connect the RCA analog video output to a monitor to view the image of the camera. Loosen the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle.
