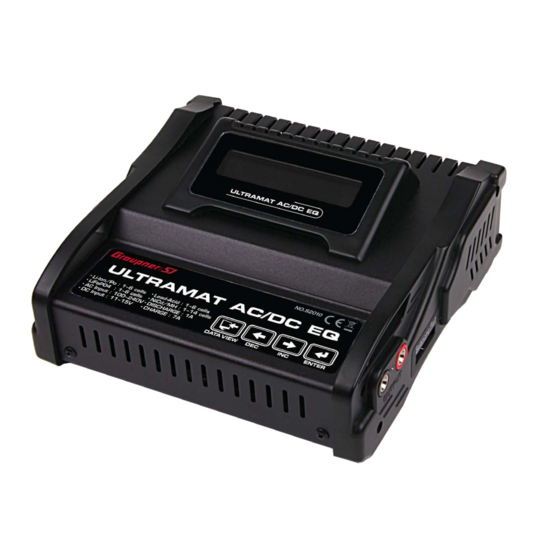

ULTRAMAT
AC/DC EQ
OPERATING INSTRUCTION
Prior to use, please read this manual thoroughly.
Keep this manual in a convenient place for quick and easy reference.

Advertisement

Table of Contents

   Related Manuals for GRAUPNER ULTRAMAT AC/DC EQ

   Summary of Contents for GRAUPNER ULTRAMAT AC/DC EQ

  • Page 1 ULTRAMAT AC/DC EQ OPERATING INSTRUCTION Prior to use, please read this manual thoroughly. Keep this manual in a convenient place for quick and easy reference.
  • Page 2 LiPo balancer 14~15P Pb CHARGE/DISCHARGE Pb charge Pb discharge DISPLAYS DURING CHARGE/DISCHARGE 15~16P 16~17P ERROR MESSAGES BATTERY CHARGE TIME CALCULATION NEW BATTERY CHARGE Pb BATTERY SAFETY LiIon, LiPo, LiFe BATTREIES SAFETY 18~19P ENVIRONMENT PROTECTION NOTES SAFETY APPROVAL ULTRAMAT AC/DC EQ...
  • Page 3: Customer Support

    ◎ BEFORE USE Thank you for purchasing ULTRAMAT AC/DC EQ charger. This system is extremely versatile and may be used by beginners and pros alike. In order for you to make the best use of your system, please read this manual carefully. If...
  • Page 4 15. Please comply with LiIon, LiPo, LiFe safety before charging 16. Do not use the damaged AC Power cord. ◎ ◎◎ ◎◎◎ ◎ BOX CONTENTS 1. Charger 1EA 2. AC Power cord 1EA 3. Balance board 1EA 4. Balance cable 1EA 5. Charge cable 1set (RED/BK) ULTRAMAT AC/DC EQ...
  • Page 5 7. Support 10~1000mA discharge current, NiCd / NiMH 1-14cells, 1.2-16.8V 8. Support cycle mode (Charge to discharge / Discharge to charge). 9. Prevent form reverse connecting of Input, output terminal. Built in cell balancer 10. Built in DC 12V, 5.0A power supplier, 110-220V AC input. ULTRAMAT AC/DC EQ...
  • Page 6 11V or above 15V. In this case, please recheck the input power supply to make sure adequate power is present. If AC power is being used as input power, do NOT try to connect the 12V DC power! ULTRAMAT AC/DC EQ...
  • Page 7 Press ENTER button then battery type blinks and press ENTER button again then other value blinks. If you leave it for more than 3 sec without operating, the blinking is stopped. Press and hold ENTER button to start charge or discharge. ULTRAMAT AC/DC EQ...
  • Page 8 ◎ MEMORY SETUP ULTRAMAT AC/DC EQ has 10 memories It is used to store specific battery, charge, discharge and safety parameters, as well as being used to initiate charging, discharging, cycling/store mode functions ① Press ENTER button then the memory number blinks. Press INC/DEC buttons to select the memory number.
  • Page 9: Battery Check

    ④ Press ENTER button then the value of delta peak blinks, press DEC/INC buttons to set the desired value of delta peak. Nixx CHARGE C=3.0A d=25mV/c ⑤ Press and hold ENTER button to start charge battery. BATTERY CHECK PLEASE WAIT..ULTRAMAT AC/DC EQ...
  • Page 10 D=1.0A ※ D->C : Discharge to Charge/ C->D : Charge to Discharge ④ Press ENTER button then the number of cycle blinks, press DEC/INC buttons to set the desired number of cycle Nixx CYCLE C->D1 C=3.0A D=1.0A ULTRAMAT AC/DC EQ...
  • Page 11 ④ Press ENTER button shortly then the value of cell voltage blinks, press DEC/INC but- tons to set the desired cell voltage LiPo CHARGE C=6.0A 4.20V/C ⑤ Press and hold ENTER button to start to charge battery BATTERY CHECK PLEASE WAIT..ULTRAMAT AC/DC EQ...
  • Page 12 ④ Press and hold ENTER button to start to discharge battery. BATTERY CHECK PLEASE WAIT..Lithium battery is no needed to discharge, just discharge 20% when battery is stored ※ The discharge voltage setup LiPo = 3.0V~4.0V LiIon = 2.9V~3.9V LiFe = 2.2V~3.2V ULTRAMAT AC/DC EQ...
  • Page 13 CYCLE C->D1 C=6.0A D=1.0A ⑥ Press ENTER button to start charge cycle BATTERY CHECK PLEASE WAIT..- LiPo store ① Press INC button to access to LiPo STORE mode from LiPo DISCHARGE mode LiPo STORE C=6.0A D=1.0A ULTRAMAT AC/DC EQ...
  • Page 14 LiPo BALANCER ①3.83②3.78③0.00V CAUTION Lithium battery is very sensitive to temperature. Much careful to the sudden temperature change ◎ Pb CHARGE/DISCHARGE - Pb charge ① Set the battery type, cell, capacity at MEMORY mode Profile [03] 12Vpack ULTRAMAT AC/DC EQ...
  • Page 15 ③ Press and hold ENTER button to start to discharge battery BATTERY CHECK PLEASE WAIT..※ Pb battery don’t have cycle function. ◎ DISPLAYS DURING CHARGE/DISCHARGE Operating mode Operating time Charge/Discharge capacity 0:00 00000 +3.00 7.200V Charge/Discharge current Battery type Battery voltage ULTRAMAT AC/DC EQ...
  • Page 16 BATTERY When input voltage is below 11.0V or exceeds 15V. VOLTAGE ERROR BATTERY When a battery is not connected to the charger’s output OUTPUT BATTERY When a battery is connected to the output in reverse REVERSE POLARITY ULTRAMAT AC/DC EQ...
  • Page 17 Do not use the battery, if the charged capacity of battery exceeds battery capacity in specification. If such a phenomenon arises, repeat to charge and discharge more over 5 times and charge again. Such a phenomenon might arise till the third time charge. ULTRAMAT AC/DC EQ...
  • Page 18 13. Never charge Lithium Polymer battery packs at greater than 4.2V per cell, Lithium Ion at 4.1V volts per cell or LiFe at greater than 3.7V per cell as this will cause irreversible damage to the cells and will invalidate all warranty claims. ULTRAMAT AC/DC EQ...
  • Page 19 ◎ SAFETY APPROVAL DECLARATION OF CONFORMITY We hereby declare that the flowing product Product: Graupner/SJ ULTRAMAT AC/DC EQ Charger Confirms with the essential protective requirements as laid down in the directive for harmonizing the statutory directives of the member states concerning electro-magnetic...
