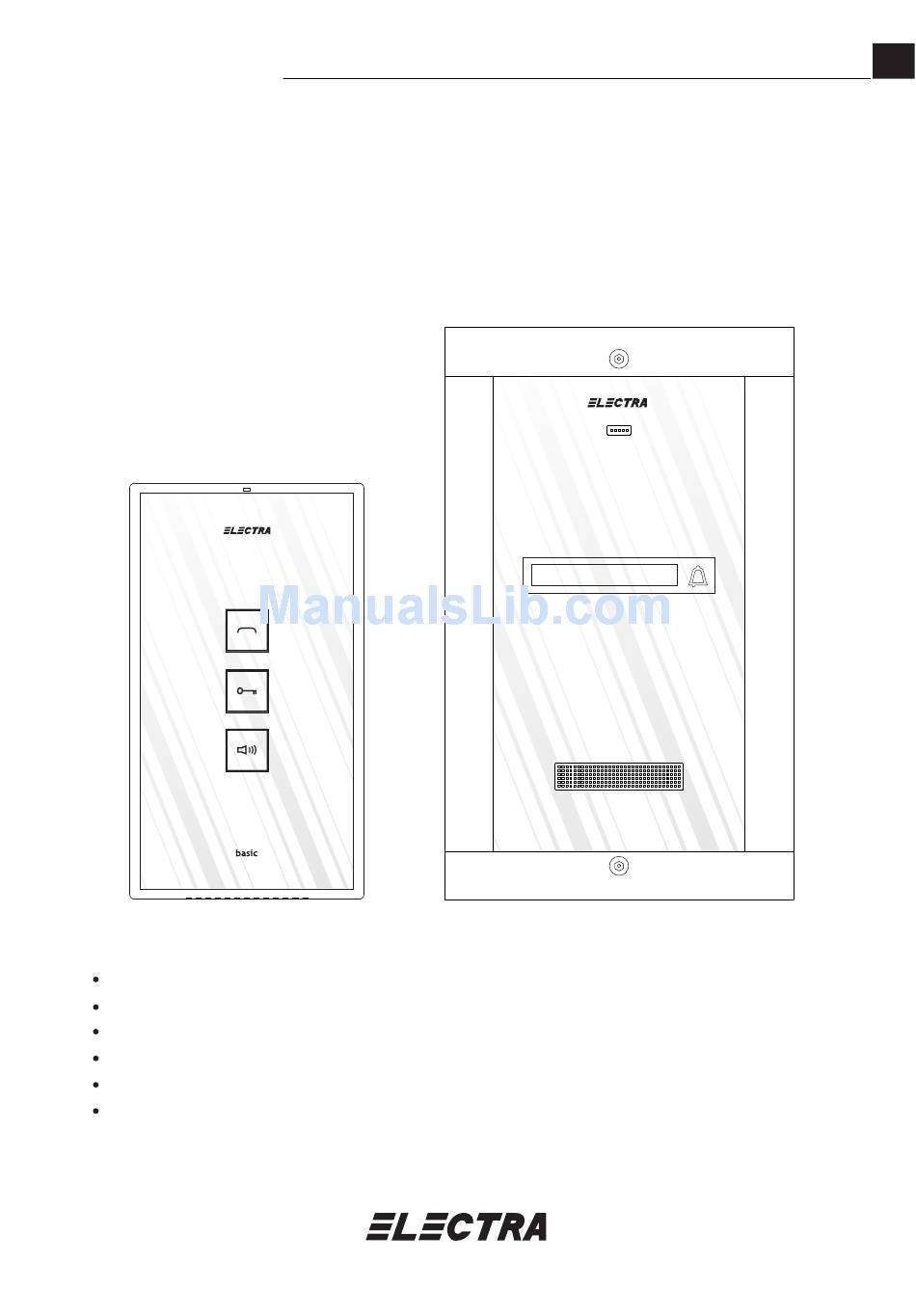

USER MANUAL
KIT AUDIO DOOR PHONE basic
1 family
Call from the Outdoor panel's key;
Full duplex hands-free audio communication;
Command of the access gate/door opening from the interior Terminal;
Audio monitoring of the entrance of the property, by the inhabitant;
Optional 1 audio Terminal in parallel;
UTP CAT 5e (AWG 24) cable required.
Harry Johnston
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Electra KIT AUDIO DOOR PHONE basic1 family
Summary of Contents for Electra KIT AUDIO DOOR PHONE basic1 family
-
Page 1: User Manual
USER MANUAL KIT AUDIO DOOR PHONE basic 1 family Harry Johnston Call from the Outdoor panel’s key; Full duplex hands-free audio communication; Command of the access gate/door opening from the interior Terminal; Audio monitoring of the entrance of the property, by the inhabitant; Optional 1 audio Terminal in parallel;... - Page 2 Harry Johnston Outdoor panel Terminal Supply control unit 1 pc. 1 pc. 1 pc. 238 × 144 × 53 mm 170 × 96 × 30 mm 130 × 141 × 73 mm Full-duplex Audio communication Digital Data communication Supply tension of the system (supply of the control unit) Maximum power expenditure from 0,4 A AC...
- Page 3 2.2 Technical features of the audio Terminal Supply tension 12,0 ... 14,3 V DC (stabilized) TOUCH type, 4 keys, backlit on touch Keyboard Permanent RED signaling of the VOLUME key if the Terminal is turned off. Audio adjustments Audio communication volume: MAXIMUM LEVEL – MEDIUM LEVEL –...
-
Page 4: Recommended Cables
All additional products are sold separately. OUTDOOR INDOOR Accumulator (Optional) 12V/7Ah (Optional) Electromagnetic lock DC / AC 230 VAC Supply control unit Terminal Panel Additional terminals in parallel (optional) From the supply control unit 4.1 Recommended cables Outdoor panel Supply control unit Audio Terminal UTP CAT5e (AWG24) cable for distances of maximum 70 m between the Outdoor panel and the Supply control unit and 250m between the Outdoor panel and the audio Terminal. -
Page 5: Safety Instructions For Installation
4.2 Safety instructions for installation AT TENTION! The installation, the connection to the 230V/50 Hz network and è the maintenance of the Supply control unit Supply control unit will only be carried out by authorized personnel! The installation of the Supply control unit is recommended to be made within è... - Page 6 73,0 42,8 51,0 140,7 35,5 The accumulator will be connected to the terminals of the power supply, after the commissioning of the system. 4.4 Installation of the audio terminal A3,5 × 35(32) screw (4 pcs.) ≈18 cm The terminal will be placed at 155 cm Cable length height (recommended height) (from the wall)
- Page 7 4.5 Installation of the Outdoor panel The Outdoor panel is installed at the entrance of the property or building, on the body closest to the access door, at a height of approx. 1.7 m (upper part) from the ground, protected from rain and sunrays.
-
Page 8: Direct Current (Dc)
Accumulator (Optional) 230 V AC/50Hz Electrical panel 12V/7 Ah 2x Sig. 10A -ACC +ACC 2 x 0,5 mm cable 3 x 0,75 mm cable ORANGE ORANGE ORANGE ORANGE +14 V +14V +14V +14V Doorbell BLUE BLUE BLUE BLUE CD IN CD OUT UTP CAT 5e GREEN... - Page 9 6.1 Description of the Supply control unit The supply control unit includes: S1: presence of tension at the +14V - GND terminals S2: existence of tension *PROG. : programming button at the +Uv - GND terminals *The kit does not require programming.
-
Page 10: Troubleshooting
6.3 Checking the functions and adjustments Check anywhere in the installation, during the call and the communication, and make sure that the +14V – GND supply tension is higher than 12,0V. Check the functions of the Terminals and of the Outdoor panel: call, communication, access, audio monitoring. - Page 11 Control unit: S1: green S2: green PROG: intermittent red Short circuit between Terminal: Remedy the short circuit. The CALL does the CD and GND The keyboard is (by case) not function functioning, it does or +14V connections not take the call command.
-
Page 12: Audio Monitoring
7.2 Use of the audio Terminal STAND-BY At the first touch, the keyboard is backlit and the Terminal may receive the following commands: AUDIO MONITORING Monitoring duration: 10 s By touching this key, you may listen to what goes on at the entrance, in front of the Outdoor panel. - Page 13 If access is granted, the panel emits an acoustic signal, and the lock remains unblocked for maximum 10 seconds. If the inhabitant does not answer, after a minute, the panel returns to stand-by mode. AUTHORIZED REPRESENTATIVE of ELECTRA S.R.L. ELECTRA Building Communications GmbH Parkring 10, Liebenberggasse 7 | 1010 Wien – Austria Phone +43 1 516 33 –...
