Summary of Contents for Electra ATM.0S042

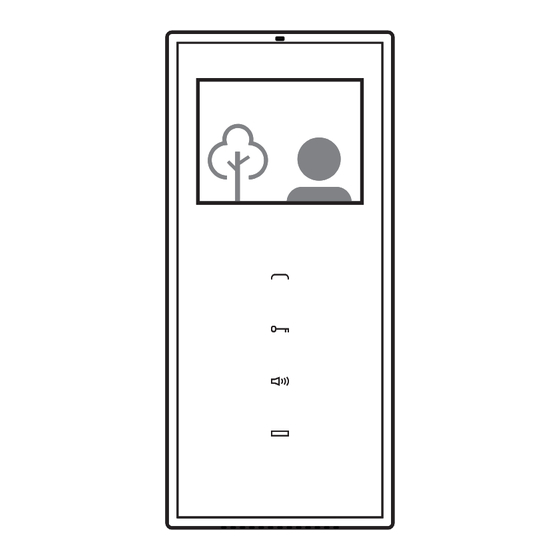

- Page 1 4 wires Audio AUDIO & VIDEO TERMINALS for TL door phone systems User manual 3.5" Video 7" Video extra 7" Video...
-
Page 2: Table Of Contents
Contents Safety instructions Settings of the audio-video terminals Description of the audio-video terminals Programming the audio-video terminals Functions of the audio-video terminals Use of the outdoor panels Recommended cables. Installation. Maintenance of the door phone components Use of the audio-video terminals Warranty Safety instructions Any intervention on the installation must be performed by AUTHORIZED PERSONNEL! -
Page 3: Functions Of The Audio-Video Terminals
Functions of the audio-video terminals Main functions Call, answer and hands-free talk Video image display (color during day, black & white during night) during the call, talk, monitoring and access Audio-video monitoring with bidirectional talk Access command during call, talk and monitoring Additional command –... - Page 4 Move the connector with the fastened 1. Place the front case with the fastened wires from the back case to the front connectors over the back case. case. 2. Pull the terminal down until it interlocks. Connection diagram for the AUDIO terminal SCU/VCB/ACB AUDIO TERMINAL Additional...
- Page 5 Installation of the VTM.7S402/ VTE.7S902 smart+/ extra Video Terminal Fasten the back case on the wall H=135cm Make the connections in the connector Fasten the connectors on the back case fastened on the back case. Move the connector with the fastened 1.
-
Page 6: Use Of The Audio-Video Terminals
Use of the audio-video terminals smart+ Use of the terminals smart+ 3.5” video Call answer, audio-video monitoring (setting mode: ringtone selection) smart+ audio Access command (setting mode: call duration) Volume adjustment during talk, Mute (setting mode: call sound volume) Auxiliary command (auto gate, garage door, outdoor lighting etc.) smart+ 7”... - Page 7 The image closes and the keys remain backlighted for 10 more sec. Volume adjustment during TALK: Successively press the speaker key - . The maximum level (7) is signaled with two beeps (2 x [ ]). After the maximum level is reached, the adjustment recommences at level 1. BEEP 5.
-
Page 8: Settings Of The Audio-Video Terminals
extra Use of the terminal extra 7” video Scroll up Menu / ok Scroll down Call answer, Access command Volume adjustment Auxiliary command Picture taking during talk, Mute 100 stored audio-video monitoring (auto gate, garage door, (setting mode: (setting mode: pictures (setting mode: outdoor lighting etc.) -
Page 9: Programming The Audio-Video Terminals
CALL DURATION The terminal rings only once. Touch the key again. The terminal rings twice. Touch the key for the second time. The terminal rings three times. Touch the key for the third time. The terminal rings continuously for 1 minute. Touch the key for the fourth time. -
Page 10: Use Of The Outdoor Panels
Use of the outdoor panels IR LED (night lighting) Orientable video camera Name 5 Electronic display Name 4 Name 4 Name 3 Touch key Name 4 Touch keyboard with the name Name 1 Name 3 of the family Name 2 Name 1 RFID reader 1 Fam. -
Page 11: Maintenance Of The Door Phone Components
Maintenance of the door phone components The Touch Line audio-video terminals must be kept away from water, lime or any liquid substances, blows, fumes, powders, dust etc. In case of renovation activities, the entire surface of the terminals will be protected with plastic foil. The Touch Line outdoor panels must be kept away from corrosive substances, lime and blows. - Page 12 ELECTRA is a trademark of ELECTRA Group - No. 008958332 EUIPO - Alicante, Spain ELECTRA products are registered as Industrial Models at EUIPO - Alicante, Spain The products are The products contain UL-compliant The products are manufactured under CE certified.
