Electra Basic TL User Manual

safety & comfort for your family
TOUCH LINE
Video-audio Intercoms
for blocks of flats

USER MANUAL

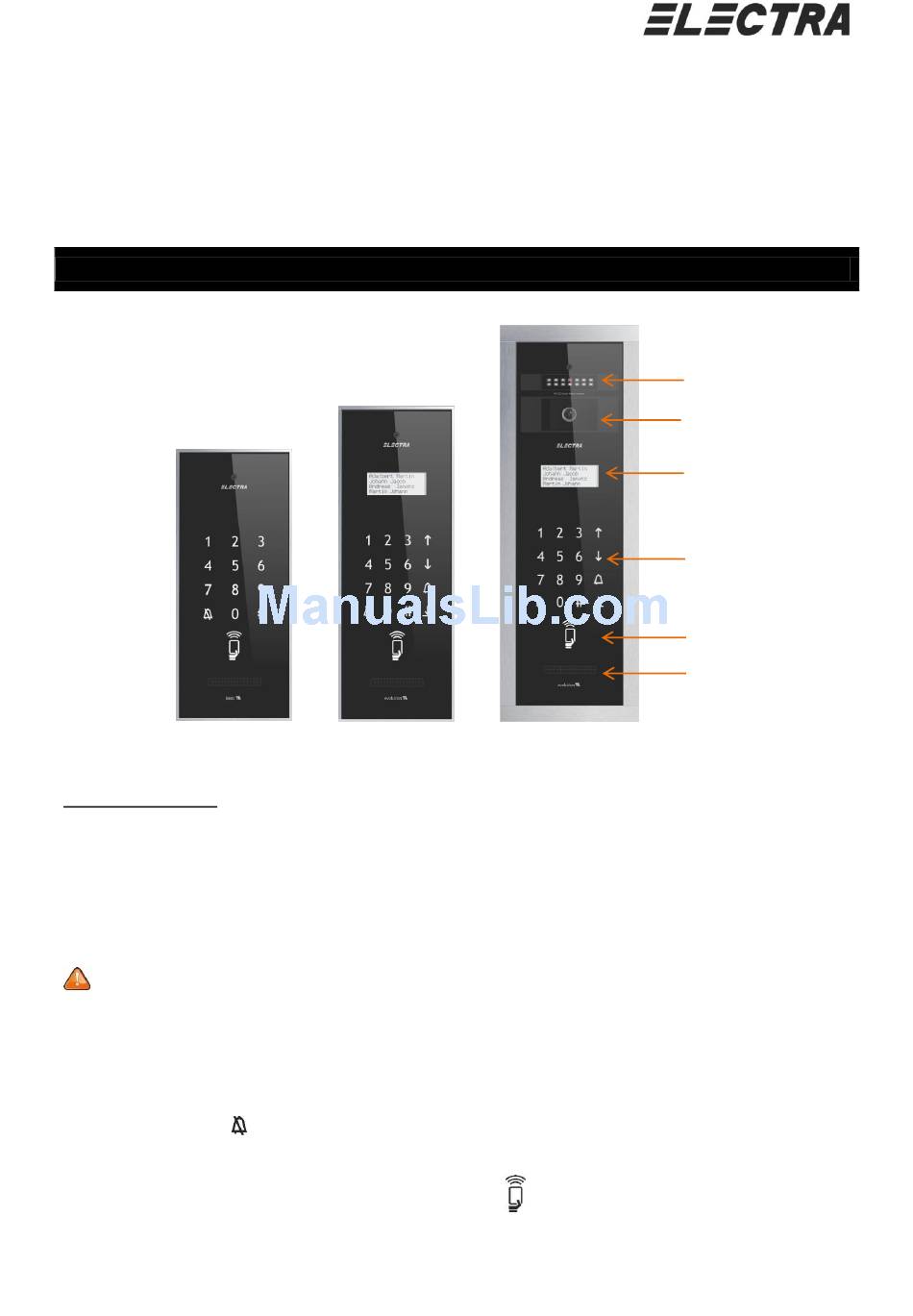

The functioning of the TOUCH LINE outdoor panels for BLOCKS OF FLATS
Basic TL audio panel
with surface mounting

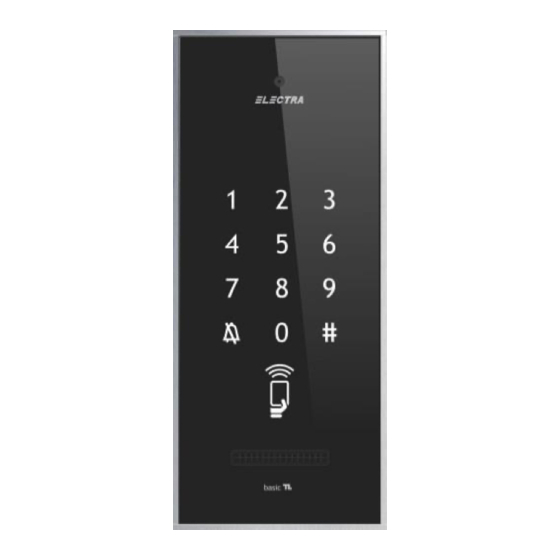

Basic TL outdoor panel
1. The panel in stand-by mode
The keyboard of the outdoor panel is permanently lighted.
At the models with inhabitant list display module, the list is also permanently lighted.
2. How to make the call?
Any visitor must ask permission to enter. The visitor must dial the number of the apartment he is looking for.
The TOUCH keyboard is a graphic representation on the GLASS surface of the outdoor panel, and the call is selected
through a simple touch of the printed surface. The touch of the key must be maintained approx. 0,5 s until the command is
confirmed by an acoustic signal (beep). The keyboard only reacts to the contact with the human body and it will not be activated
if it is touched with a glove on the hand or with another object.
After dialing the number, the panel calls the indoor terminal associated with it. The call is acoustically signaled.
If the inhabitant answers, the communication with the interior is initiated. If the inhabitant does not answer, the call is automatically
cancelled after 40 sec.
The call is cancelled with the
3. How to use the access tag ?
Approach the tag the area of the outdoor panel that is marked with the
lock opens. Otherwise, the panel emits an acoustic error signal, and the door remains locked.
The operating distance of the access tag is 10 ... 20 mm.
Evolution TL audio panel
with surface mounting
key.
Evolution TL video panel
with flush mounting
symbol. If the tag was programmed on the panel, the
Infrared lighting LEDs
Orientable video camera
Electronic display: 4 rows
Lighted TOUCH keyboard
Proximity tag access
GLASS surface
Inhabitant list display
(optional)
