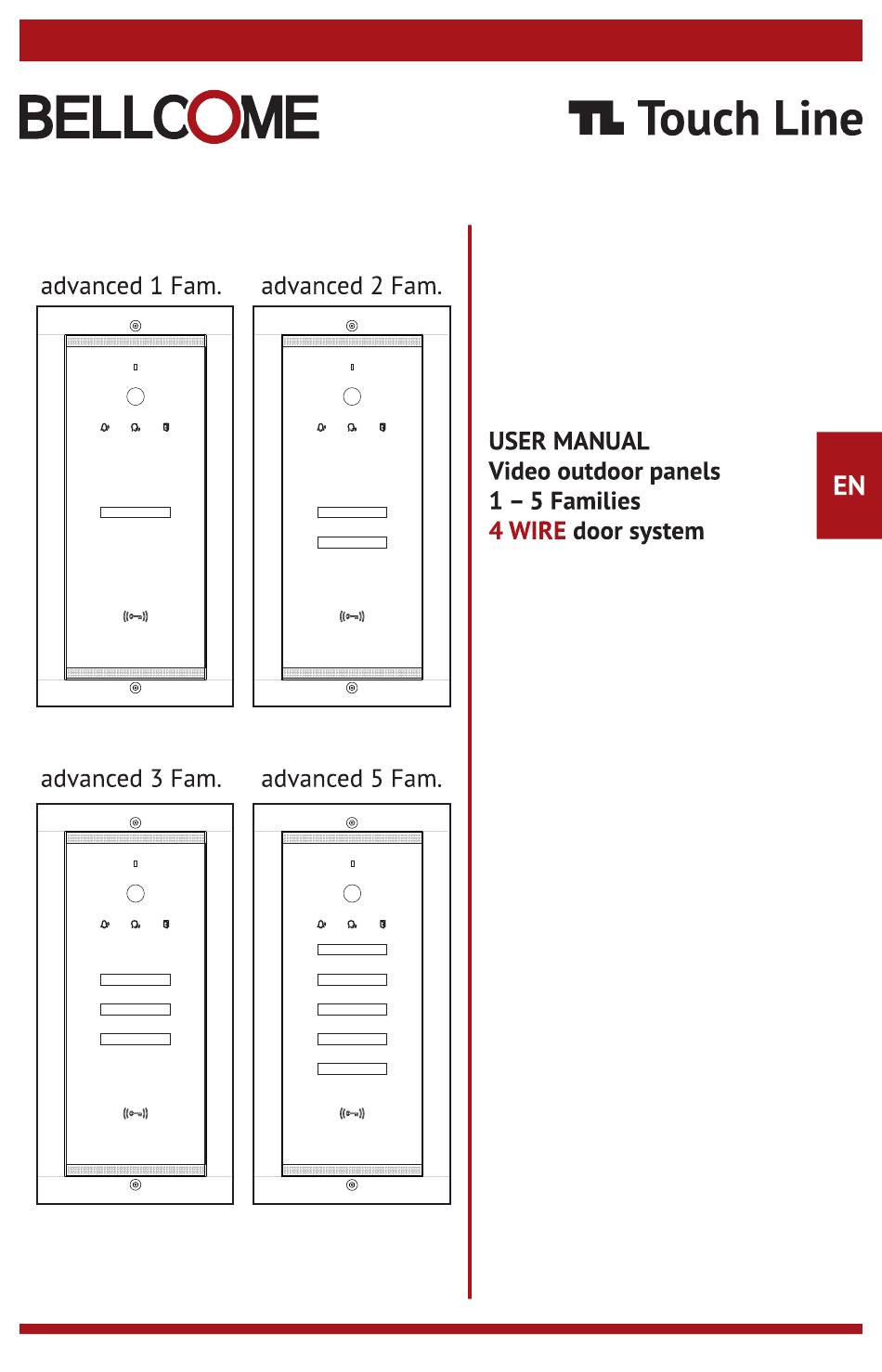

- Page 2 Contents Connection of additional panels Safety instructions Description of the Touch Line video panels Programming and deleting the RFID cards Recommended cables. Maintenance Installation of the Touch Line video panels. Declaration of conformity. Warranty. Connection diagrams for 1 – 5 Families Safety instructions DO NOT power the product at 110 –...
- Page 3 Fastening Torx screw Microphone LEDs (day and night white lighting) Orientable video camera LEDs signaling status during use Fam 5 Fam 4 Touch key with the name Fam 1 Fam 3 of the family Fam 2 Fam 1 Presence sensors RFID reader Speaker Fastening Torx screw...
- Page 4 Significance of the connections: +14V : the (+) connection for power supplying the system components (= 12 14V) C/D : the connection for audio communication (analog) and digital data transmission (CAN) GND : the (-) connection for power supplying the system components (GND = 0V) Vin/Vout : the connection for video signals transmission - PAL/SECAM analog 1Vpp Example: +14V = red, C/D = blue, GND = black, Vin/Vout = green.
- Page 5 Unmount the module and add the name labels. Mount back the family name module. Orientation of the video camera 130 cm 130 cm 130 cm...
- Page 6 Electrical connections in the panel Mounting the outdoor panel on the wall Surface Flush Torx Torx Torx Important: For both types of mounting, the Torx screws for fastening the outdoor panels on the wall must be very well tightened, to prevent the anti-theft alarm sensor from setting off.
- Page 7 Connection diagrams for 1 – 5 Families Outdoor Panel 1 Family LOCK SUPPLY LOCK EXIT GROUNDED OUTLET 110/230Va.c. 50/60Hz max.12Ah/12V Vout1 LOCK DOOR LOCK VIDEO DOOR PANEL FUSE - T1.6A SUPPLY AC. 110/230V SCU.VDR03.BLG14 AUX1 AUX2 OUT1 OUT2 OUT3 OTHER VIDEO CAMERA Fam.
- Page 8 3 Families...
- Page 9 5 Families...
- Page 10 Connection of additional panels Important: One VPA video panel and one SCU central unit will be mounted at each entrance. To one or more families 110Va.c. 110Va.c. 110Va.c. 110Va.c. 230Va.c. 230Va.c. 230Va.c. 230Va.c. SCU1 SCU2 SCU3 SCU4 PROG PROG PROG PROG SCU.VDR03.BLG34 SCU.VDR03.BLG34...
- Page 11 Programming and deleting the RFID cards Manual programming of the RFID cards When delivered from the factory, the Touch Line video outdoor panels do not have access cards programmed. In order to have access in the building after installation, it is mandatory to program the RFID cards. The RFID access cards are programmed at the outdoor panel, separately for each family and will be stored in the EEPROM memory of the system central unit (SCU).
- Page 12 DO NOT short-circuit the electrical connections of the Touch Line video door system components. Declaration of conformity. Warranty. The manufacturer ELECTRA s.r.l. declares that: The products are in compliance with the harmonized legislation of the European Union regarding the directives: Low Voltage (LVD) 2014/35;...
- Page 16 BELLCOME is a trademark of ELECTRA Group - No. 013502646 - EUIPO - Alicante, Spain BELLCOME/ELECTRA products are registered as Industrial Models - EUIPO - Alicante, Spain The products are The products contain UL-compliant The products are manufactured under CE certified.
