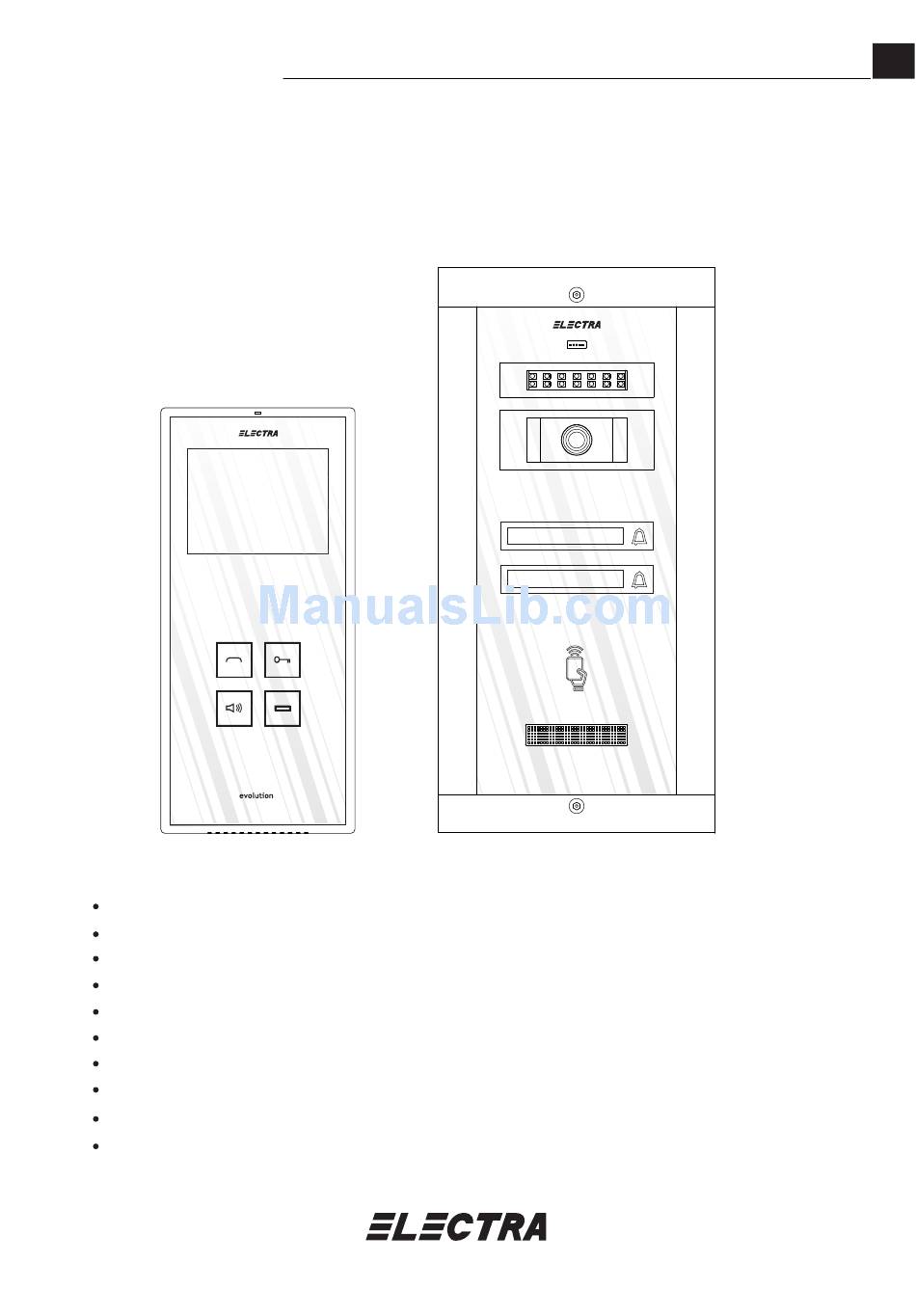

USER MANUAL

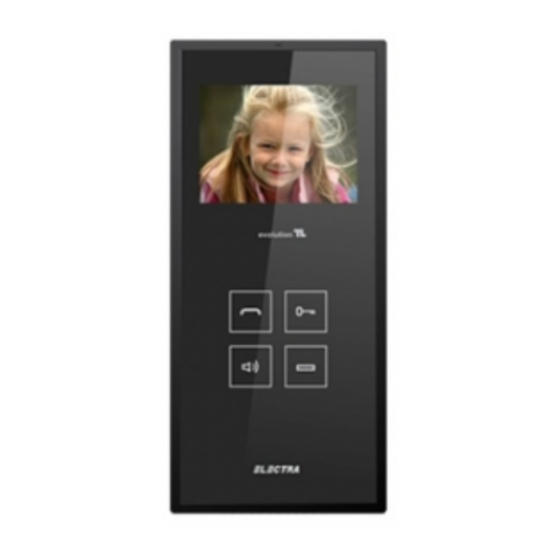

KIT VIDEO DOOR PHONE evolution
2 families
Call from the Outdoor panel keys;
Possibility to see on the Terminal's display the person calling ;
Full duplex hands-free audio communication;
Command of the access gate/door opening from the indoor Terminal ;
Video and audio monitoring of the entrance of the property, by the inhabitant;
Optional connection of up to 4 additional video cameras;
Optional auxiliary command: auto-access, garage door, etc.;
Optional 1 video Terminal or up to 3 audio Terminals in parallel, for each family;
Optional maximum 3 Outdoor panels in parallel;
UTP CAT 5e (AWG 24) cable required
Harry Johnston
Oliver Thompson
.
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Electra evolution
Summary of Contents for Electra evolution
-
Page 1: User Manual
USER MANUAL KIT VIDEO DOOR PHONE evolution 2 families Harry Johnston Oliver Thompson Call from the Outdoor panel keys; Possibility to see on the Terminal's display the person calling ; Full duplex hands-free audio communication; Command of the access gate/door opening from the indoor Terminal ;... -
Page 2: Kit Components
1 KIT COMPONENTS Harry Johnston Oliver Thompson Outdoor panel Indoor terminal Supply control unit Access tag Video connection box 1 pc. 2 pcs. 1 pc. 1 pc. 10 pcs. 212 × 96 × 30 mm 130 × 141 × 73 mm 100 ×... - Page 3 Keyboard TOUCH type, permanently backlit Display of the inhabitant's name Backlit name space Aluminum profile painted in electrostatic field; Case Secured glass screen, 8 mm thick Flush Mounting Casing protection level (IP) IP44 Operating temperature range - 30° C ... + 60°C Transport and storage - 33°...
- Page 4 2.3 Technical features of the Supply control unit 230V±10%/50Hz Supply tension +14V - GND : +14V DC (stabilized)/ 2A DC Generated power tensions/ + Uv GND : +14V DC (stabilized)/ 0.5A DC power capability Vcam GND : +12V DC (stabilized) / 0.4A DC Fireproof ABS Case - On DIN rail: TH 35 x 15 or 35 x 7,5 in compliance...
- Page 5 1 out of 1.099.511.627.700 Reading distance 25 mm Case Casing protection level (IP) IP 65 Operating temperature range -30°C ... + 60°C Range of transport and storage - 33°C ... + 55°C temperatures Dimensions 35 x 62 x 7 mm Weight 7,5 g 3 BLOCK DIAGRAM OF THE SYSTEM...
-
Page 6: Installation
3.1 Block diagram of the video selection box connected with 4 additional video cameras (optional) Panel Supply control unit To the video Terminal Harry Johnston Oliver Thompson Video selection box 3.2 Block diagram of the connection of additional Outdoor panels (optional) Panel 1 Panel 2 Panel 3... -
Page 7: Safety Instructions For Installation
Supply control unit Electromagnetic lock (optional) Flexible, multistrand cable, (Cu) 2 or 3 x 0,75 mm² for distances of maximum 50 m or (Cu)2 or 3 x 1 mm² for distances of maximum 100 m. Supply control unit 230 V AC network Flexible, multistrand cable, (Cu) 3 x 0,75 mm²... - Page 8 Installation of the Supply control unit DIN rail mounting Wall mounting DIN rail Retainer A3,5 x 32 screw (2 pcs.) Protection lid (2 pcs.) B2,9 x 9,5 screw (4 pcs.) Frontal view Lateral view Back view The accumulator will be connected to the terminals of the power supply, after the commissioning of the system.
- Page 9 4.5 Installation of the video Terminal Before starting... Cable retainers A3,5 x 32(35) screw – adapters (4 pcs.) The terminal will be placed at the ≈18 cm Cable length 155cm height (recommended height) (from the wall) Frontal view Lateral view Back view 4.6 Installation of the Outdoor panel The Outdoor panel is installed at the entrance of the property or building, on the body closest...
- Page 10 Before starting... The Outdoor panel is installed at the entrance to the building, on the body closest to the entrance door. Torx Screw for antitheft protection Door phone cable Antitheft protection Torx Screw The Torx screw must be completely screwed. Otherwise, when the system is powered, the panel emits a permanent acoustic signal. This warning function is useful if an unauthorized person tries to open the Outdoor panel.
-
Page 11: Connection Diagram
CONNECTION DIAGRAM PROG... - Page 12 (optional) 5.1 Installation of the electromagnetic lock Direct current (DC) Alternative current (AC) Transformer Cable 230 V AC 12 V 2 x 0.75 mm Cable LA/C 2 x 0.75 mm Direct current electromagnetic lock (DC) LA/C Supply control unit The Supply control unit can supply a current of max. 1A Ÿ...
-
Page 13: Troubleshooting
6.2 Checking the precision of the connections in the system and the connection of the Supply control unit Check the precision of the connections in the system! The +14V , GND , CD , GNV and Uv signals are common to all components of the system. The Vin and V out signals are specific to each Terminal or video camera (they are not to be connected jointly). - Page 14 Signaling Problem Possible causes Solutions Control unit: S1: green The system functions S2: green correctly PROG: Check the 10A fuses from Control unit: The system does not the electrical panel and Lack of tension from function the 1,6A Fuse 1 from the the 230V AC network (Supply control unit Supply control unit input.
-
Page 15: User Safety Instructions
The wires connected During the call and/or to the Vin / Vout and communication, the Control unit: GNV terminals are not image on the Locate and remedy the S1: green twisted until close to Terminal's screen defect. S2: green the terminals (until presents horizontal or PROG: approx. - Page 16 7.2 Use of the video Terminal STAND-BY The keyboard is not backlit. At the first touch, the keyboard is backlit and the Terminal may receive the following commands: AUDIO – VIDEO MONITORING +VIDEO CAMERA SELECTION Monitoring duration: 10 s By touching this key, you may see and listen to what goes on at the entrance, in Stand-by front of the Outdoor panel.
- Page 17 7.3 Use of the Outdoor panel 1 STAND-BY The key of the Outdoor panel and the inhabitant’s name are permanently backlit. The intermittent RED led signals the presence of video monitoring. CALL AND COMMUNICATION Harry Johnston Call duration: maximum 15 s ( 3 calls) Oliver Thompson Communication duration: maximum 2 min.
-
Page 18: Maintenance
The BELLCOME video systems for residential buildings are produced in compliance with the EU standards and bear the CE conformity marking. AUTHORIZED REPRESENTATIVE of ELECTRA S.R.L. ELECTRA Building Communications GmbH Parkring 10, Liebenberggasse 7 | 1010 Wien – Austria Phone +43 1 516 33 –...
