SEON TR4-20 Quick Installation Manual

Wiring and Testing
1

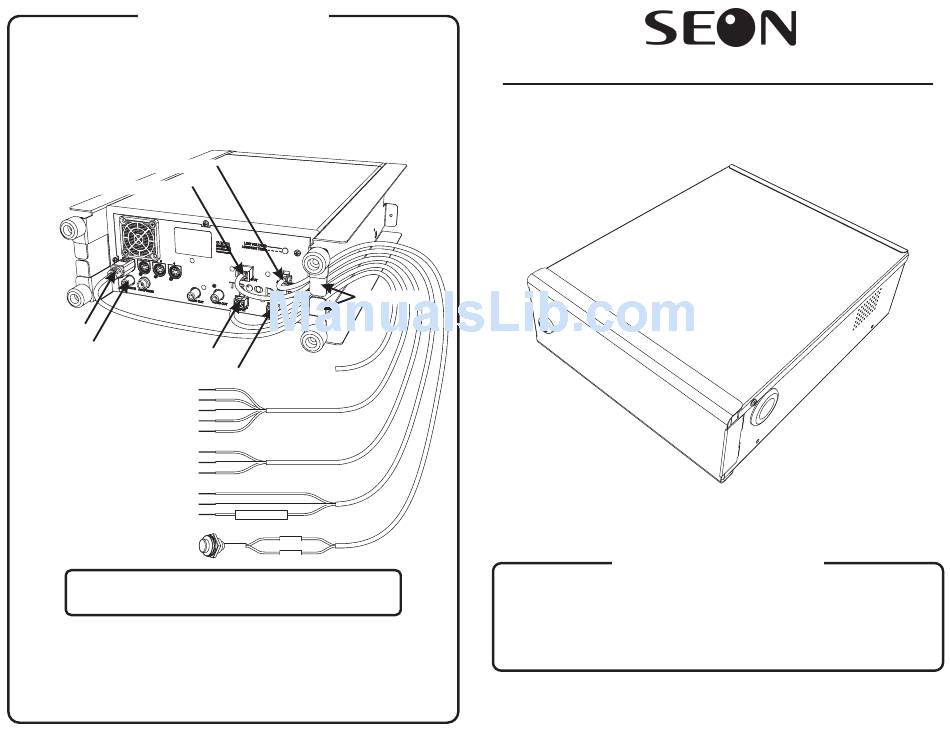

Feed all of the harnesses through the cable grommet and connect them to
the DVR as shown below.
2
Make sure all cables are held inside the cable retainers at the back of the
DVR, as shown below. Carefully slide the DVR into the enclosure, taking care
not to pinch or bind any cables. Slide the lid onto the enclosure and secure it
with two #8×¼" retaining screws.
Alarm harness
Power and ignition harness
Camera 1
harness
Optional external Signal harness
audio input for camera 1
Speed harness
Left turn signal, indicator 1 (black)
Stop arm, indicator 2 (green)
Brakes, indicator 3 (red)
Warning lights, indicator 4 (brown)
Right turn signal, indicator 5 (white)
Speed sensor ground (black)
Speed pulse signal (green)
Speed sensor power 7.5 (red)
VDC
Ignition switch (yellow)
Battery – (black)
Battery + (red)
Alarm switch
IMPORTANT: The DVR must be connected as close to the battery
(or master battery switch) as possible to avoid a low-voltage DVR
shutdown when the battery is heavily loaded.
3
Connect all of the harnesses as shown above. Turn on the ignition switch. If
the light on the front of the DVR does not turn green within
POWER
read the troubleshooting instructions in the
4
Follow the DVR setup instructions in the
the Installation and User's Guide.
DVR
(rear view)
Cable retainers
To camera 1
Fuse holder
Connectors
30 seconds,
Installation and User's Guide .
Quick Reference Guide or
TR4-20 Full-Featured Mobile DVR System

Quick Installation Guide

Service and Warranty
If your TR4-20 Full-Featured Mobile DVR System is to be returned to Seon Design for service, please
call toll free 877-630-7366, or 604-524-6437 and ask for a Return Authorization (RA) number. An RA
number allows the Service Technicians to better track your product when it comes in for service. Please
show the RA number on the outside of the package. ANY PRODUCT SENT TO SEON DESIGN
WITHOUT AN RA NUMBER MAY BE REFUSED.
Please refer to the Warranty form provided with your product to review the terms of warranty service,
contact and shipping information, as well as other important issues regarding the service and operation
of your product.
Information in this guide is subject to change without prior notice.
© 2004 Seon Design Inc.
All rights reserved.
www.seon.com
Document Part Number: 700-0031-01
