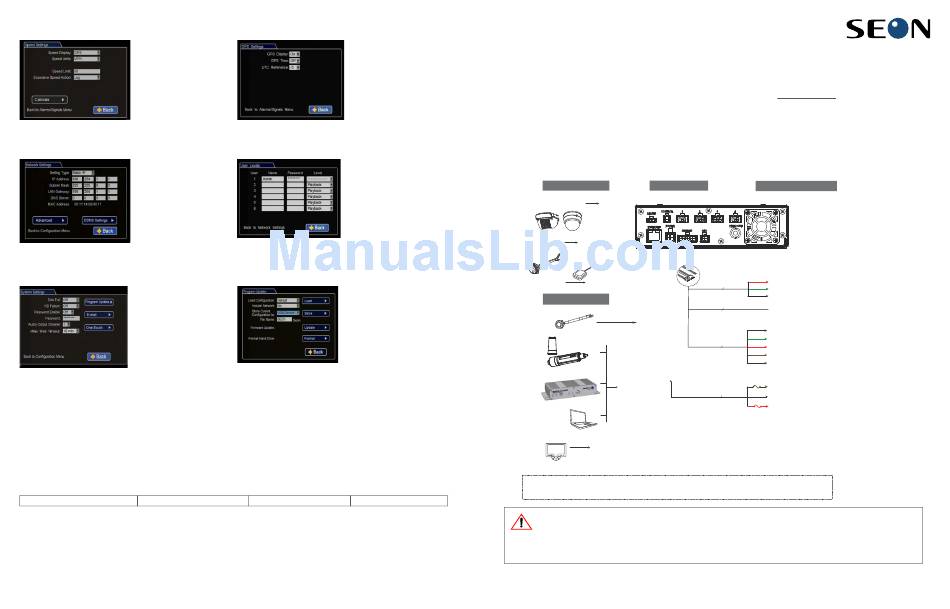

SEON Trooper TL Quick Install Manual

DVR Menu Settings, Continued
9 Speed
Speed Display: If GPS is installed,
select GPS. GPS sensors are replacing
the vehicle speed sensor calibration
system.
Speed Units: Choose MPH for US or
KPH for Canada.
Speed Limit: Set the speed limit to
trigger a speed limit action.
Excessive Speed Action: Set the action
if requested.
Click Calibrate only if Pulse is selected
from Speed Display.
Click Back to save the menu settings.
In the Alarms and Signals menu, click GPS.
11 Network
Setting Type: Leave at default Static
IP setting.
Use the IP address shown to
communicate with the DVR over the
internet with vMax Web.
If the DVR is attached to a Wi-fi bridge,
change these settings to those
supplied by the system administrator.
If the IP information is changed and
saved in a configuration file for upload
to other DVRs, their settings will have
to be updated as well.
See DVR Configuration Uploads, on page 28 in the TL DVR Installation Guide.
Click Advanced, then click User Levels.
13 System
Disk Full, HD Failure: Leave Off unless
your network is configured to receive
emails from the DVR.
Password Enable: Leave Off unless
instructed otherwise.
Audio Output Channel: Select the
audio channel that will be available from
the audio RCA port on the front of the
DVR.
vMax Web Timeout: leave at default 10
minutes.
Click Program Update.
Warranty
For full warranty information, go to www.seon.com/documents/Seon-Warranty.pdf.
Customer Service Contact Information
Toll free telephone 1-877-630-7366 Local telephone 604-941-0880
10 GPS
GPS Display: If a GPS receiver is
installed, select On to display the
coordinates on the play view overlay.
GPS Time: Select On to have the play
view overlay time set by the GPS.
UTC Reference: Set the time zone:
-4 Atlantic
-5 Eastern
-6 Central
-7 Mountain
-8 Pacific
Click Back to save the menu settings.
In the Configuration main menu click Network.
12 Users
Users logging on to the DVR locally or
remotely should have password control to
protect the DVR from being accidentally
reconfigured.
Leave the default Admin user and add
other users with access levels as needed.
Enter user names, passwords, and assign
levels.
• Admin user has complete DVR control.
• Configure user cannot edit user levels
or IP settings.
• Playback user can only view and archive recordings.
Click Back to save the menu settings.
In the Configuration main menu click System.
14 Create/Load Configuration File, Format Drive
Store Current Configuration: Select USB
Device as the file saving destination.
Plug a USB memory device into the front of
the DVR. Click Store to save the file on the
USB memory device.
Load: For details on uploading
configurations to the DVR, see DVR
Configuration Uploads, on page 28 in the
TL DVR Installation Guide.
Update: Firmware updates can also be
delivered by a USB device. The DVR will
reboot when updates are done.
Format: Format the hard drive when the configuration is complete and tested and
before final delivery of the installation to the customer.
Click Back to save the menu settings.
Email: service@seon.com Web: www.seon.com

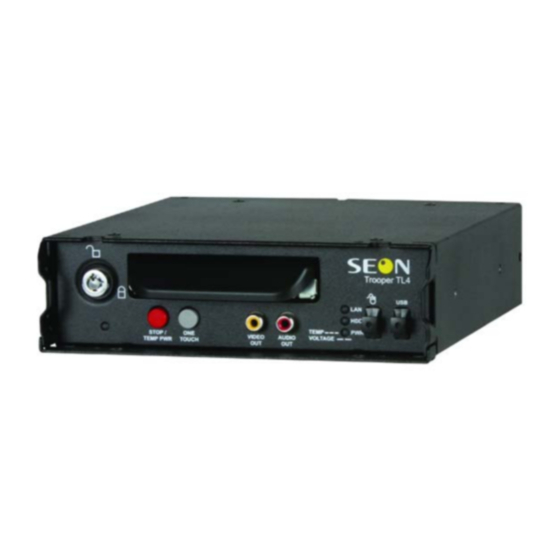

Trooper TL DVR Quick Install Guide
This Quick Install guide is a basic install and setup reference for DVRs running firmware version 2.0 and up.
Review it completely before installing the DVR. The complete installation and user guides to the DVR are
provided in the TL DOCPAC included in the shipment, and available at www.seon.com.
• Trooper TL4 and TL2 Installation and Configuration Guide 700-0099
• Trooper TL4 and TL2 Mobile DVR User Guide 700-0098
Installation Diagram
Explorer® TL4
Typical System Setup
Peripherals
Seon System
To DVR
Supports Four Cameras Camera
Inputs
To DVR
Alarm Switch ALARM
Input
To DVR GPS Input
*1
GPS Receiver
Optional Accessories
Diagnostic Button
To
Adapter
Harness
DIAGNOSTIC
Input
Smart-Reach Lite
(Wi-Fi)* 3
To DVR
POWER
Smart-Reach Cellular
Input
Modem* 3
To DVR
ETHERNET
Input
3
Laptop *
Portable Video Monitor * 4
To DVR VIDEO OUT
*1 For speed tracking, use a GPS receiver or speed harness. For ease of installation and better speed tracking, Seon recommends using a GPS receiver.
*2 The Diagnostic Button and alarm input harness are optional and require the adapter harness.
*3
An optional Smart-Reach Cellular, Smart-Reach Lite (Wi-Fi), or Laptop can be used from the Ethernet input located on the back panel.
*4
An optional Video Monitor can be used from the video outputs located on the front or back panel.
CAUTION: Do Not Use Output Power from Noise Suppression Solenoid
Many school buses include a separate solenoid to power noisy items such as fans. The noise suppression solenoid's
power out can be easily confused with true ignition power. If there is no apparent output from any obvious ignition sources,
consult the bus schematic or bus manufacturer to locate a proper power on source for the DVR. Don't assume that the
tested wire operates exactly like an ignition wire, it may not.
*700-1007*
© Seon Design Inc. | February 2014 | All rights reserved. www.seon.com | 700-1007 R003
Vehicle Electrical Interface
TL4 DVR Rear Panel
To DVR SIGNALS Input
Adapter
SPEED
*2
Harness
Red - Not used
Green - Speed sensor high
3 wires
Black - Speed sensor low
DIAGNOSTIC BUTTON
1x5 Microfit
SIGNALS
Black - Left Turn
Green - Stop
Red - Brake Signal
5 wires
Brown - Warning
White - Right Turn
POWER
1A
Yellow - Vehicle Switched + 12V
Black - Battery Negative
3 wires
5A
Red - Vehicle + 12V
