Page 1: User Manual

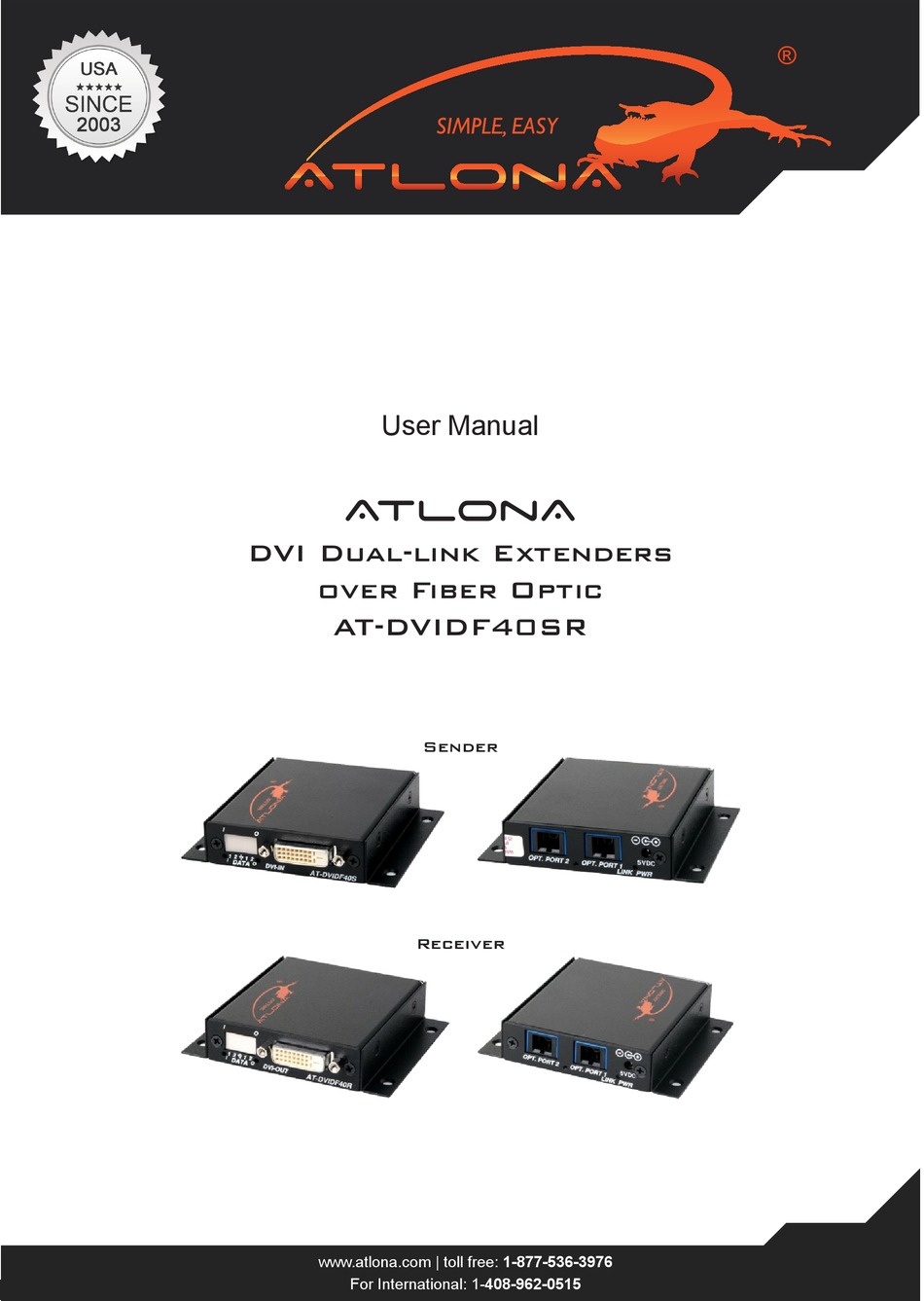

User Manual AtlonA DVI Dual-link Extenders over Fiber Optic AT-DVIDF40SR Sender Receiver www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 2: Table Of Contents
2. Applications ..........3. Package Contents ..........4. Features ..........5. Specification ..........6. Connection and Operation ..........7. Troubleshooting ..........8. Atlona Product Registration ..........9. Safety Information ..........10. Warranty ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
2560x1600 over 1500ft. This has tremendous advantages over older transmission technologies, such as copper. Atlona utilizes high bandwidth in the design of the unit, so there is no conversion or compression of the signal, thus preserving your picture! APPLICATIONS With Dual link resolution, here are several excellent applications where this technology can be applied. -
Page 4: Features
Dimensions (inch) 0.75 x 2.75 x 3.0 Universal Power will work on 110/220v worldwide systems Adaptor included Hermetically sealed enclosure CONNECTION AND OPERATION 2 x SC Multi-mode Fiber LCD/Plasma DVI-D cable DVI-D cable www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Troubleshooting
Atlona HIGHLY recommends you use an Atlona 24 pin, Dual Link DVI cable for best performance. We conveniently offer two cables for such an application: ATD-14010-2 Atlona Dual Link DVI-D cable. -
Page 6: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 7: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
