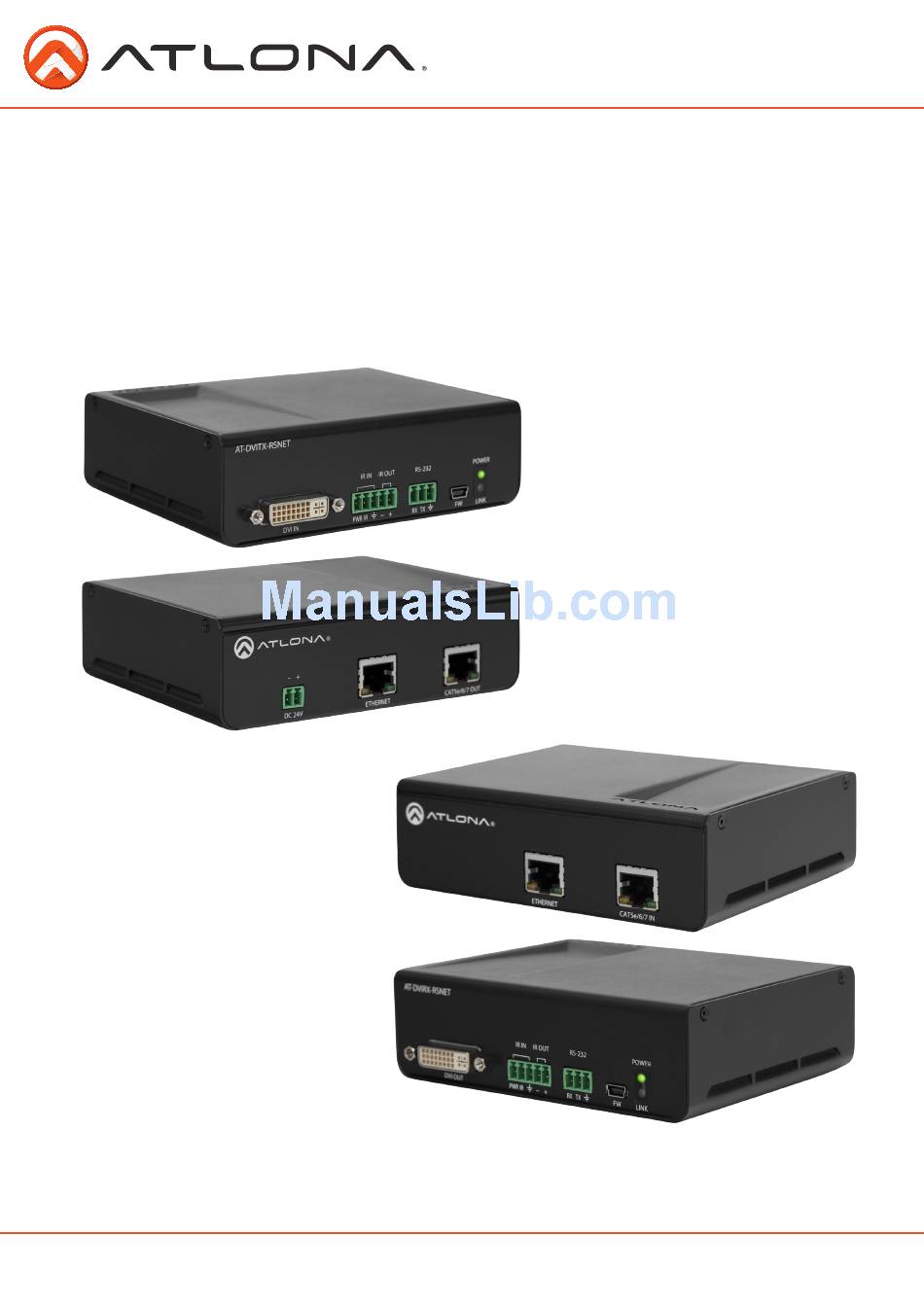

Page 1: User Manual
Atlona HDBaseT Extender Family AT-DVITX-RSNET & AT-DVIRX-RSNET User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Rear Panel ..................4 6. Captive Screw Connection ..................5 7. Connection and Installation ..................6 8. Specifications ..................7 9. Safety Information ..................8 10. Warranty ..................9 11. Atlona Product Registration ..................10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Atlona’s HDBaseT DVI extenders are engineered for high-resolution electronics with DVI connectors. Using HDBaseT technology the DVI extenders combine embedded audio, digital video, power (PoCc ), Ethernet, RS-232, and IR control up to 328 feet (100 meters) over a single category cable. -
Page 4: Panel Description

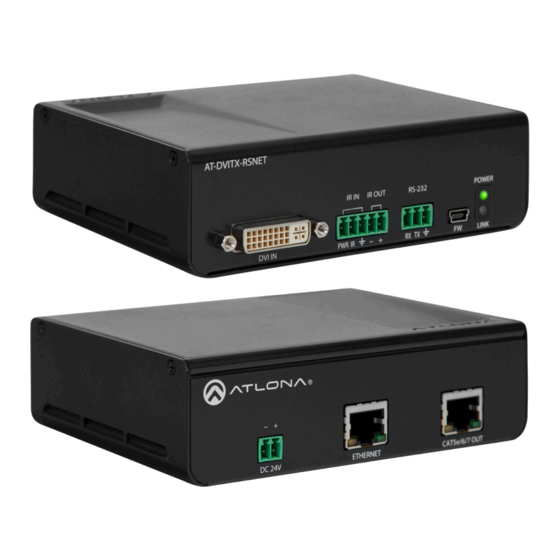

AT-DVITX-RSNET POWER IR IN IR OUT RS232 Panel Description Transmitter FIRMWARE LINK PWR IR RX TX DVI IN AT-DVITX-RSNET POWER IR IN IR OUT RS232 FIRMWARE LINK PWR IR RX TX DVI IN DC 24V ETHERNET CAT5e/6/7 OUT 1. DVI IN Port: Connect DVI or HDMI (with adapter) source here. *Not dual link DVI compatible* 2. -
Page 5: Captive Screw Connection
╧ Red: PWR White: IR Black: ╧ White: - Red:+ For greater distance and IR rejection from plasma, CFL, and LED panels, purchase the AT-IRX-CS (IR receiver) through atlona.com Includes black, silver, and white bezels. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
Black: - White: + Connection and Installation Note: When installing the extenders, do not install in an enclosed area or cover the vents. Doing so may result in damage to the product and/or area surrounding it. AT-DVITX-RSNET POWER IR IN IR OUT... -
Page 7: Specifications
Specifications Bandwidth 10.2Gbps Ports AT-DVITX-RSNET AT-DVIRX-RSNET Video input 1 x DVI-D 1 x RJ45 Video output 1 x RJ45 1 x DVI-D IR input 1 x Captive Screw IR output 1 x Captive Screw Firmware update 1 x Mini USB... -
Page 8: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 10: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
