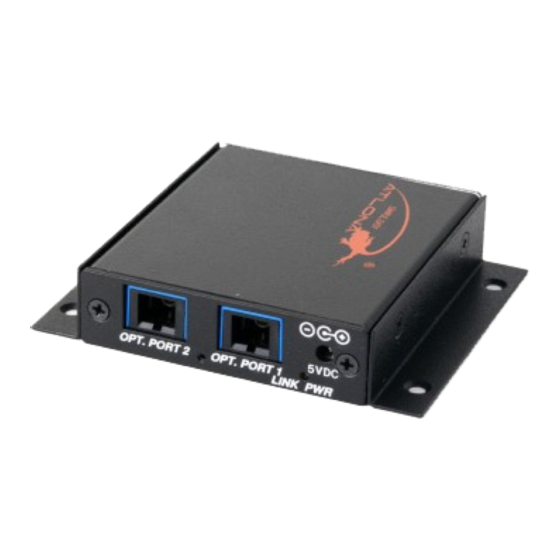

- Page 1 DVI Dual-link Extenders over Fiber Optic AT-DVIDF40SR Sender Receiver User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Package Contents 3. Applications 4. Features 5. Specifications 6. Connection and Operation 7. Troubleshooting 8. Safety Information 9. Warranty 10. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
The Atlona AT-DVIDF40SR utilizes Fiber Optic technology to transmit resolutions up to 2560x1600 over 1500ft. This has tremendous advantages over older transmission technologies, such as cop- per. Atlona utilizes high bandwidth in the design of the unit, so there is no conversion or compression of the signal, thus preserving your picture! PACKAGE CONTENT •... -
Page 4: Features
2 x Multi-Mode SC style DVI Hot Plug Full Support Power 5V/1A Weight (LB) 0.45 Dimensions (inch) 0.75 x 2.75 x 3.0 Universal Power will work on 110/220v worldwide systems Adaptor included Hermetically sealed enclosure Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Connection And Operation
3. POWER ADAPTORS: Once your DVI-D cables have been connected to both sender and receiver unit, go ahead and plug in the power adaptors that come included. Atlona Supplies two 5V 1.2a power supplies. There is no order in which the AT-DVIDF40SR needs to be powered. -
Page 6: Safety Information
It may also cause damage to your AT-DVIDF- AT-DVIDF- 40SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. Toll free: 1-877-536-3976 www.atlona.com... -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
