Connecting the cables

1. Place the monitor in a convenient, well-ventilated location near the computer or source device.

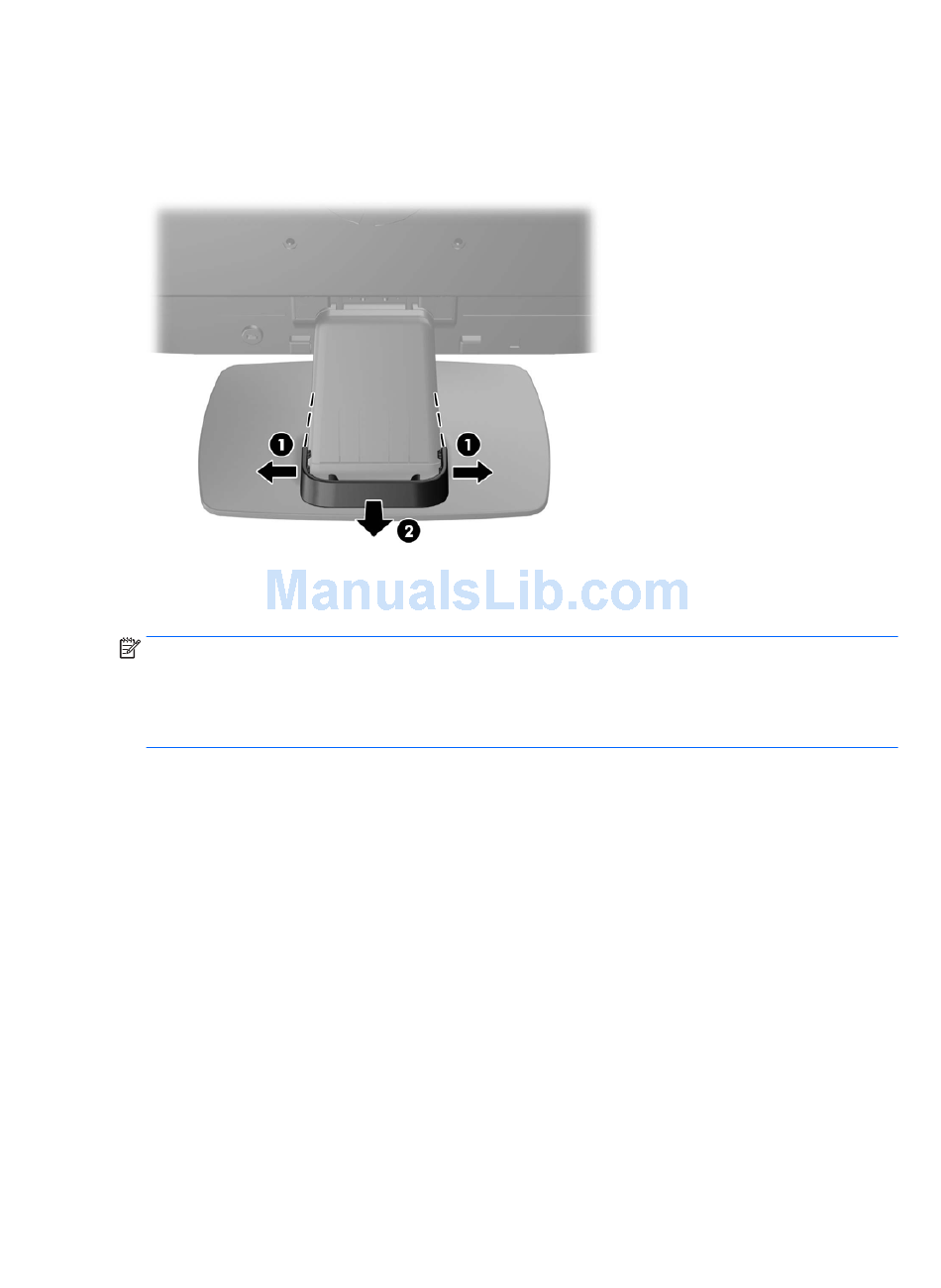

2. Remove the cable management clip from the stand by pulling outward on the two sides of the
clip (1), then lifting the clip off the stand (2).
3. Connect a VGA signal cable or DisplayPort signal cable (select models).
NOTE:
video mode is determined by the video cable used. The monitor will automatically determine
which inputs have valid video signals. The inputs can be selected by pressing the
button on the front panel or through the On-Screen Display (OSD) feature by pressing the
button.
For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to
●
the VGA connector on the rear of the monitor and the other end to the VGA connector on
the computer.
For DisplayPort digital operation, use the DisplayPort signal cable provided. Connect the
●
DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and the
other end to the DisplayPort connector on the computer.
4. Connect one end of the provided audio cable to the audio connector on the monitor (select
models) and connect the other end of the cable to an audio output connector on the rear panel
of the computer.
8 Chapter 3 Setting up the monitor
The monitor is capable of supporting either analog or digital input (select models). The
+/source
Menu
