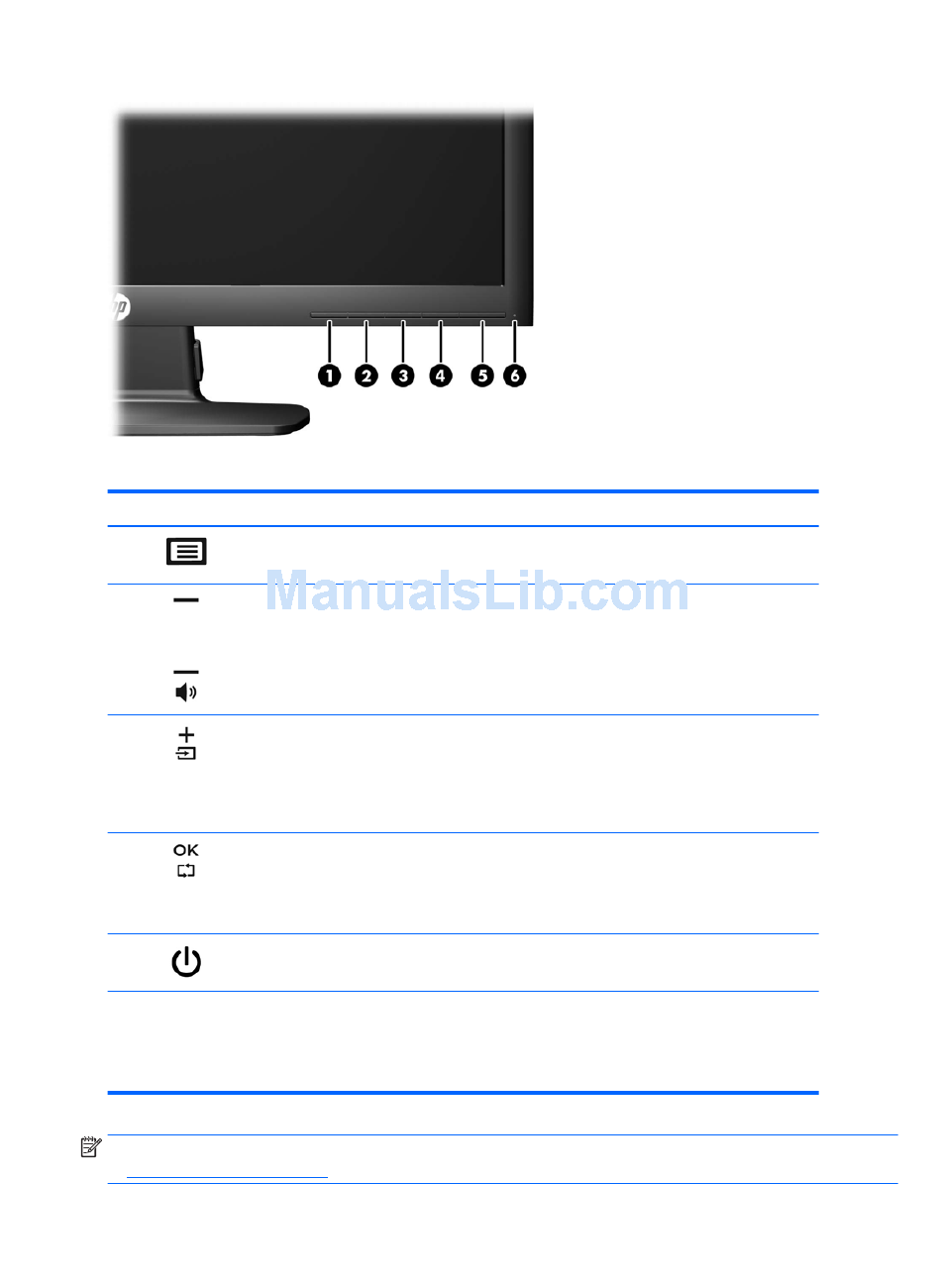

Identifying front panel controls

Control
1
2
or
3
4
5
6
NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library
at http://www.hp.com/go/sml.
10 Chapter 3 Setting up the monitor
Function
Menu Opens, selects or exits the OSD menu.
Minus If the OSD menu is on, press to navigate backward through
the OSD menu and decrease adjustment levels.
or
If the OSD menu is inactive, press to activate the volume
Minus/volume
adjustment bar. Press - or + to adjust the volume (select
(P202m)
models).
Plus/source If the OSD menu is on, press to navigate forward through
the OSD menu and increase adjustment levels.
If the OSD menu is inactive, press to activate the source
button that chooses the video signal input (VGA or
DisplayPort).
OK/auto If the OSD menu is on, press to select the highlighted
menu item.
If the OSD menu is inactive, press to activate the auto
adjustment feature to optimize the screen image.
Power Turns the monitor on or off.
Power LED White = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
