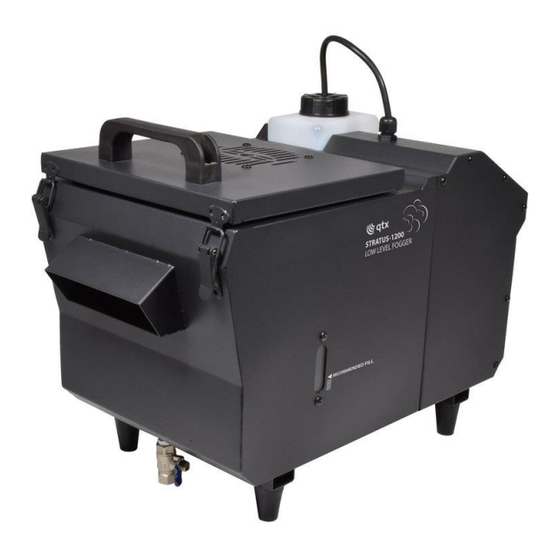

Small form factor, portable effect machine producing "dry ice" type low fog effects without the
use of carbon dioxide or ice. New technology delivers a ground-hugging, flowing mist from
standard fog fluid and water, perfect for stages, theatres and themed events. The main unit
has a removable fluid tank and easy access water reservoir with drain tap and can be
operated by a wired digital control panel, separate RF remote or 2 channel DMX connection if
required.
•
Produces an impressive, ground hugging mist effect
•
Works using only standard fog fluid and water
•
Small form factor unit for easy transportation
•
2 Channel DMX connections
Supplied with wired digital control panel and RF wireless remote
•
www.avsl.com
STRATUS-1200
Low level fog machine 1200W
Order ref: 160.448UK
User Manual
160.448UK Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Qtx STRATUS-1200
Summary of Contents for Qtx STRATUS-1200
- Page 1 STRATUS-1200 Low level fog machine 1200W Order ref: 160.448UK User Manual Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty Small form factor, portable effect machine producing "dry ice" type low fog effects without the use of carbon dioxide or ice.
- Page 2 No user serviceable parts inside - do not open the case. Allow the unit to acclimatise to room temperature before operating. The Stratus-1200 has a built-in fluid container and reservoir so should be operated in an upright position. Ensure that the unit is positioned on a stable, non-slip surface.
- Page 3 MANUAL: Press and release for fog on demand Setting Up: Unpack the Stratus-1200 unit. Unscrew the top cap of the tank and remove to fill with fog fluid. Replace the bottle and screw the cap securely, making sure that the pipe is fed down to the bottom of the bottle to ensure a consistent flow of fluid.
-
Page 4: Operation
Open the water tank cover and add water or distilled water to the reservoir ensuring you don’t fill over the recommended fill line. Connect the wired digital control panel to the socket marked “Remote Control” on the rear panel. If DMX is to be used for control, connect the DMX signal from the controller to the DMX IN XLR connector. -
Page 5: Specifications
Specifications: Power supply 220-240Vac, 50/60Hz (IEC) Power consumption 1200W Fuse rating DMX Channels Warm up time 3-5 minutes Remote control connection 5 pin DIN Remote control frequency 433Mhz Fog output (approx.) 7500 cu.ft per minute Fluid capacity 1.2 litre (fog fluid), 3 litre (water) Dimensions 510 x 360 x 260mm Weight...
