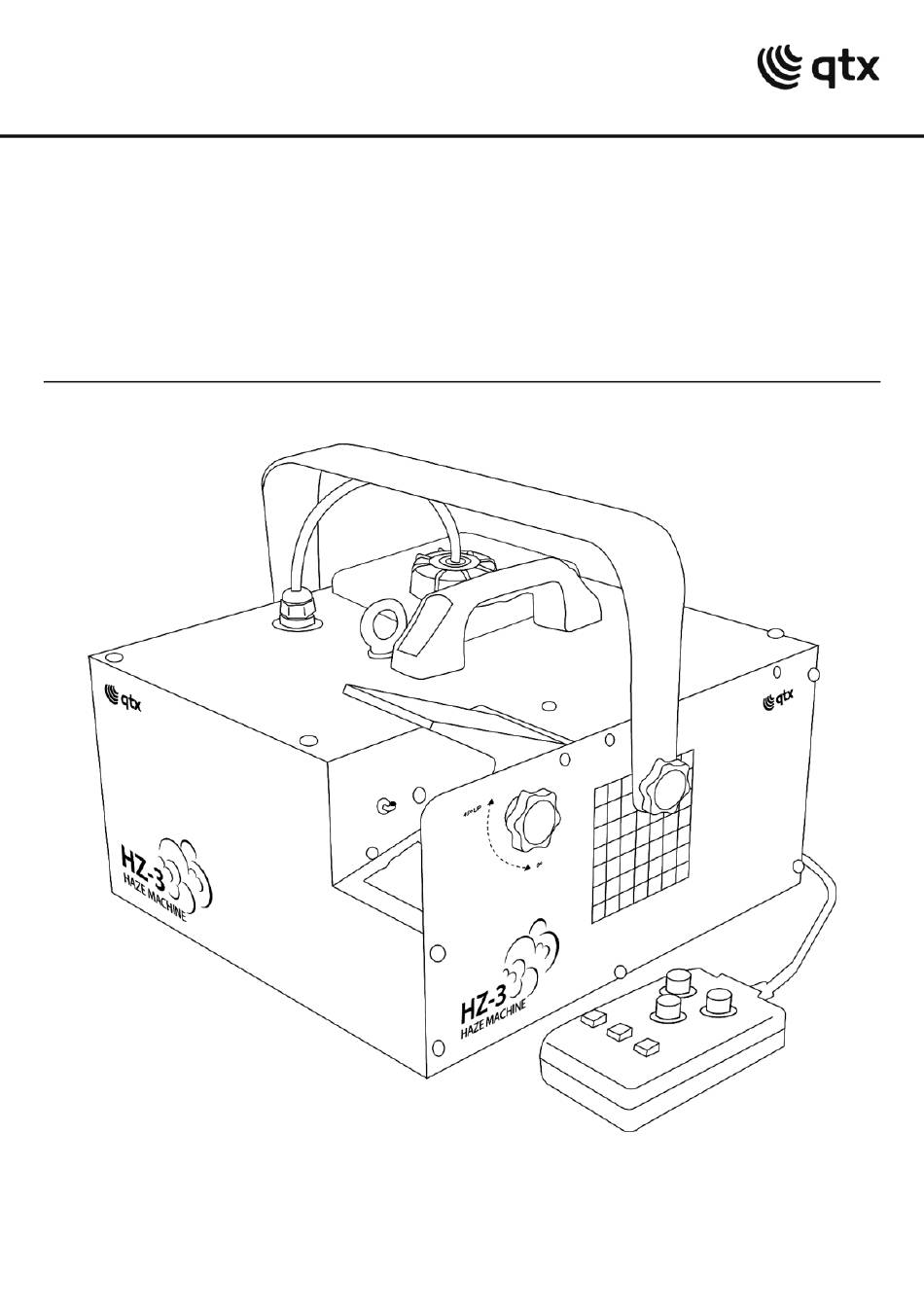

- Page 1 HZ-3 HAZE MACHINE Order ref: 160.459UK User Manual VERSION 1.2 160.459UK User Manual...

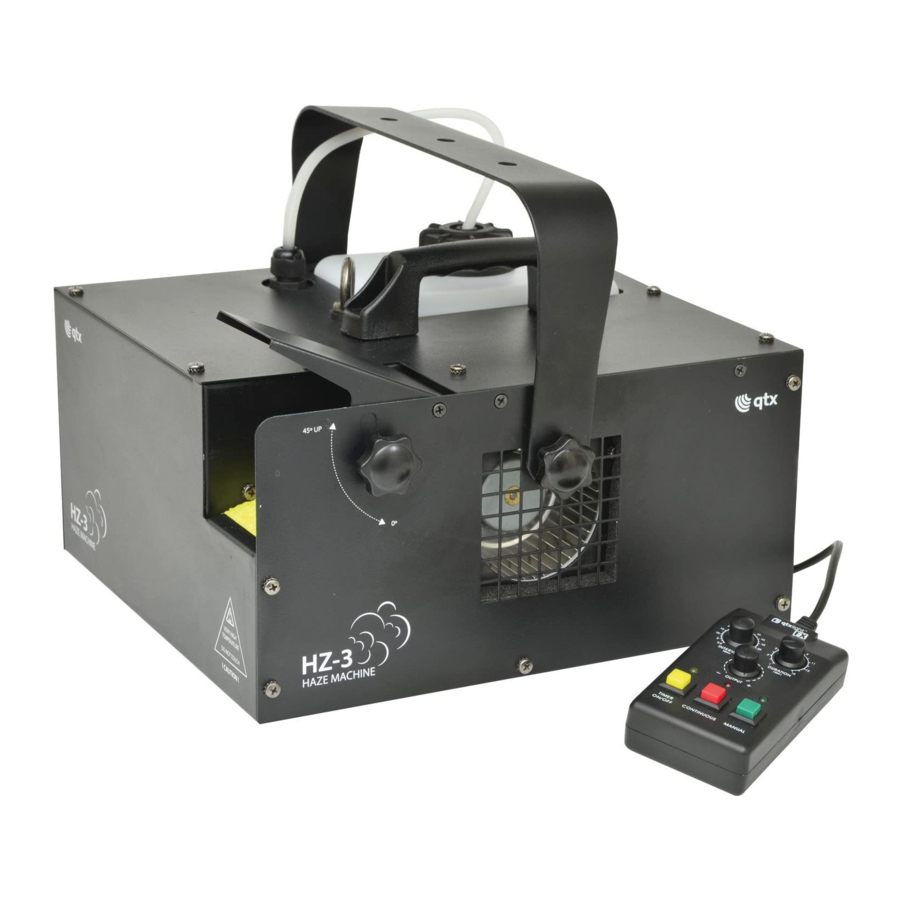

- Page 2 INTRODUCTION: HZ-3 Haze Machine A follow on from the highly successful HZ-2, the new HZ-3 haze machine features a range of upgrades to ensure it remains the top haze machine in its class. A new improved 700W heater ensures all fluid is vaporised quickly as well as decreasing the warm up time.
-
Page 3: Package Contents
Please keep the original package and invoice for any possible replacement or returned demand. RECOMMENDED FLUID: For the HZ-3 haze machine we strongly recommend the following fluid which has been specifically formulated to perform best with any heater based haze machines. QTX Ref Code... - Page 4 When the machine is ready the LED light on the machine and remote control will illuminate After heat up, please refer to page 8 “Operation for HZ-3” CAUTION! TO PREVENT MORTAL ELECTRICAL RISK AND LONG LIFE OPERATION:...
- Page 5 CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE CONNECTED: Use the plug to connect to the main power supply as follows: Wire Connection International signal Brown Live Blue Neutral Yellow /Cyan Earth QUICK TROUBLE SHOOTING If the unit is not functioning properly Check if main power is on.
- Page 6 LAYOUT HZ-3: Mounting Handle Carry handle Adjustable output flap Haze nozzle output Removable bottle Thumb screw for mounting bracket Thumb screw for adjustable out put flap. Handheld Remote controller 160.459UK User Manual...
- Page 7 REAR PANEL HZ-3: Remote connection Power IN (Use IEC lead provided) LED Digital controller (see next section) DMX Out DMX IN 160.459UK User Manual...
-
Page 8: Display Function
Manual Haze output 0 = off, 1 = low, 5 = high FS (Fan Speed) and HO (Haze Output) are settings for continuous stand-alone operation and will override any remote control of the HZ-3 When in DMX mode there are two channels with the following function:... -
Page 9: Timer Controller
TIMER CONTROLLER The timer controller can be used to control the HZ-3 remotely. Please note Fan Speed (FS) and Haze Output (HO) must be set to zero for the remote timer controller to operate. Timer on/off button Continuous output Manual override button... -
Page 10: Technical Specification
TECHNICAL SPECIFICATION Power supply 230Vac, 50Hz Fuse Power 700W Re-heat time 3 min (approx) Haze Output 2,400 Cu Ft (68m³) per minute Tank capacity 1.6 Litres Dimensions 310 x 330 x 263mm Weight 160.459UK User Manual...
