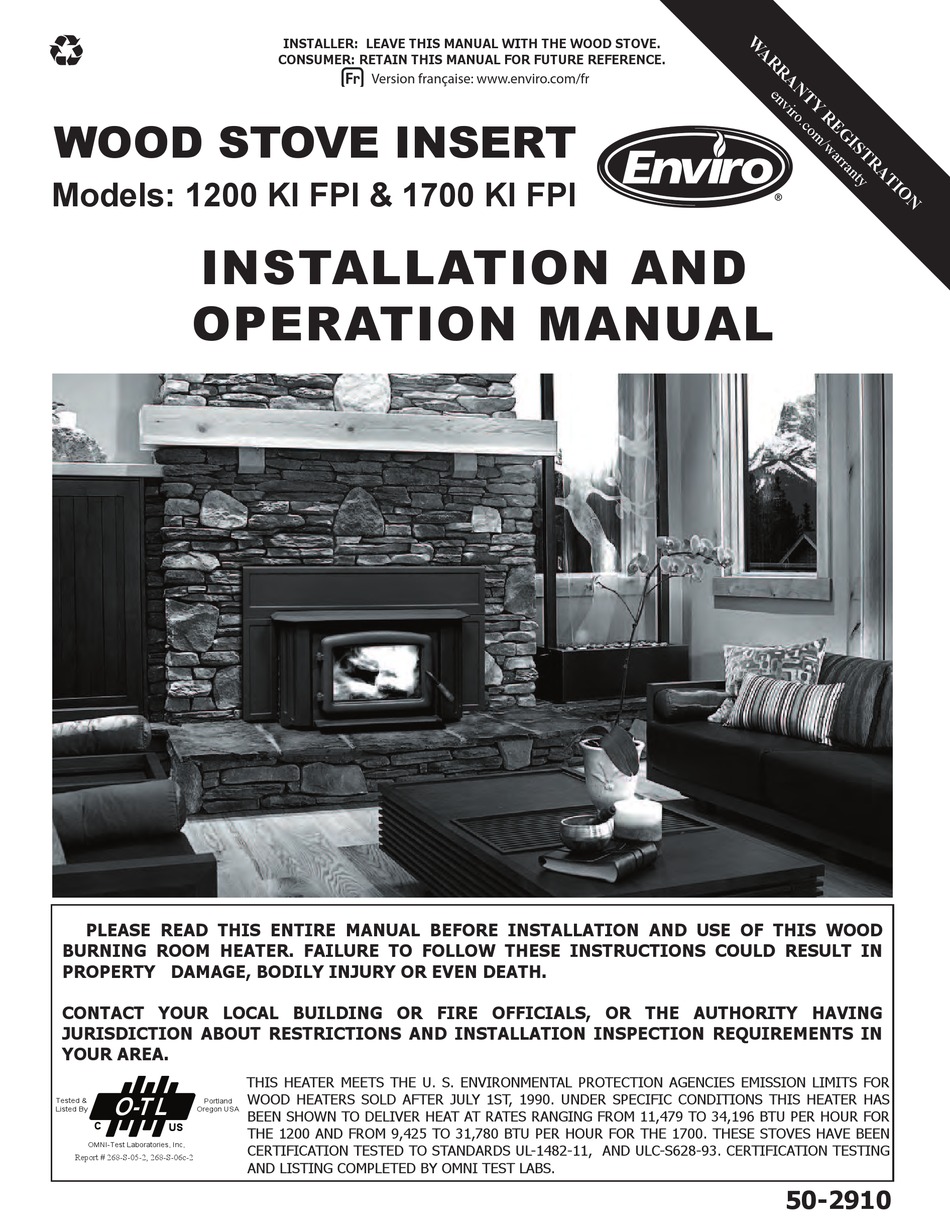

WOOD STOVE INSERT
Models: 1200 KI FPI & 1700 KI FPI
INSTALLATION AND
OPERATION MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD
BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS, OR THE AUTHORITY HAVING
JURISDICTION ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN
YOUR AREA.
O-T L
Tested &
Portland
Listed By
Oregon USA
C
US
OMNI-Test Laboratories, Inc,
Report # 268-S-06b-2
Report # 268-S-05-2, 268-S-06c-2
INSTALLER: LEAVE THIS MANUAL WITH THE WOOD STOVE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Version française: www.enviro.com/fr
THIS HEATER MEETS THE U. S. ENVIRONMENTAL PROTECTION AGENCIES EMISSION LIMITS FOR
WOOD HEATERS SOLD AFTER JULY 1ST, 1990. UNDER SPECIFIC CONDITIONS THIS HEATER HAS
BEEN SHOWN TO DELIVER HEAT AT RATES RANGING FROM 11,479 TO 34,196 BTU PER HOUR FOR
THE 1200 AND FROM 9,425 TO 31,780 BTU PER HOUR FOR THE 1700. THESE STOVES HAVE BEEN
CERTIFICATION TESTED TO STANDARDS UL-1482-11, AND ULC-S628-93. CERTIFICATION TESTING
AND LISTING COMPLETED BY OMNI TEST LABS.
50-2910
Advertisement
Table of Contents
Related Manuals for Enviro 1200 KI FPI
Summary of Contents for Enviro 1200 KI FPI
- Page 1 INSTALLER: LEAVE THIS MANUAL WITH THE WOOD STOVE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. Version française: www.enviro.com/fr WOOD STOVE INSERT Models: 1200 KI FPI & 1700 KI FPI INSTALLATION AND OPERATION MANUAL PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD BURNING ROOM HEATER.
-
Page 2: Table Of Contents
Table of Contents Safety Precautions..................3 Operating Instructions..................4 Building Your Fire.................5 How It Works..................9 Specifi cations....................10 Air Control..................10 General Specifi cations................10 Clearances To Combustibles - 1200 KI Insert.........11 Clearances To Combustibles - 1700 KI Insert.........12 Dimensions - 1200 KI Insert..............13 Dimensions - 1700 KI Insert..............14 Installation....................15 Removal From Pallet................15 Modifi... -
Page 3: Safety Precautions
Safety Precautions PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE OF YOUR NEW WOOD STOVE. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. BE AWARE THAT LOCAL CODES AND REGULATIONS MAY OVERRIDE SOME ITEMS IN THIS MANUAL. PLEASE CHECK WITH YOUR LOCAL BUILDING OR FIRE AUTHORITY. -
Page 4: Operating Instructions
Wear protective gloves when handling damaged glass door assembly to prevent personal injury. When the glass door assembly is being transported, it must be wrapped in newsprint and tape and/or a strong plastic bag. Replacement glass must be purchased from an ENVIRO dealer. No substitute materials are allowed. -
Page 5: Building Your Fire
Operating Instructions CREOSOTE - ITS FORMATION AND REMOVAL: When wood is burned slowly, it may produce tar and other vapors that, combined with moisture, form creosote. These creosote vapors condense in the relatively cool chimney fl ue of a slow burning fi re and, if ignited, make an extremely hot fi... - Page 6 Operating Instructions 2. Building/Maintaining a Fire: a) Open the primary air slide by pulling it all the way to the right. b) Place a base of crumpled uncolored paper in the bottom of the stove. Lay pieces of kindling on top of the newspaper and light it.
- Page 7 Operating Instructions d) Place small pieces of dry wood (kindling) over the paper in a criss cross manner. This allows for good air circulation, which is critical for good combustion. e) Light the crumpled paper in 2 or 3 locations. Note: It is important to heat the air in the stovepipe for draft to start.
- Page 8 Operating Instructions 6. Is it normal for soot to cover the glass at the beginning of a fi re? Your stove has been built with an air-wash system that will help keep the glass clear when the fi rebox has reached a good operating temperature and has a good draft. Normally a hot stove will keep the glass clean.
-
Page 9: How It Works
Operating Instructions ORKS Exhaust Smoke Convection Heat " Ceramic baffle; reflects heat down to burn the particles Primary air; window in the smoke. air wash (cooler air to keep the glass clean). Secondary air tubes; creates a second burn on the particles in the smoke for a more efficient &... -
Page 10: Specifi Cations
To increase your air pull the rod out, and to decrease push the rod in. All Enviro wood stoves have a secondary air that fl ows through the stainless tubes at the top of the fi rebox just below the baffl... -
Page 11: Clearances To Combustibles - 1200 Ki Insert
Specifications - 1200 KI I LEARANCES OMBUSTIBLES NSERT Table 2: 1200 KI Insert Clearance to Combustibles. A Minimum clearance to an unshielded side wall 10” (254 mm) B Minimum clearance to an unshielded 8” (203 21” (533 mm) mm) mantel C Minimum top facing (protruding ¾”... -
Page 12: Clearances To Combustibles - 1700 Ki Insert
Specifications - 1700 KI I LEARANCES OMBUSTIBLES NSERT Table 5: 1700 KI Insert Clearance to Combustibles. Minimum clearance to an unshielded side wall 10” (254 mm) Minimum clearance to an unshielded 8” (203 24” (610 mm) mm) mantel Minimum top facing (protruding ¾” 19½”... -
Page 13: Dimensions - 1200 Ki Insert
Specifications - 1200 KI I IMENSIONS NSERT Figure 4: 1200 KI Insert Dimensions. -
Page 14: Dimensions - 1700 Ki Insert
Specifications - 1700 KI I IMENSIONS NSERT Figure 5: 1700 KI Insert Dimensions. -
Page 15: Installation
Installation EMOVAL ALLET • Remove the bricks from the unit before starting. • Remove the two (2) lag bolts (shown in Figure 6) that secure the unit to the pallet from inside the fi rebox. Note: Before the bricks are re-installed, rivets (Figure 7) must be placed in the two holes where the lag bolts were removed in the fi... -
Page 16: Masonry Fireplace Installation
Installation ASONRY IREPLACE NSTALLATION Installation must be completed by a certifi ed professional in order for warranty to be valid. Install only in a masonry fi replace with a good-condition chimney at least 15 ft (4.6 m) high, both of which have been constructed in accordance with the building code. - Page 17 Installation The fl ue collar is removable for installations into fi replaces with low openings. a) Remove the rear two (2) secondary air tube and C-Cast Ceramic Baffl es, if installed (see C-C ERAMIC AFFLE ). Remove the secondary air NSTALLATION tubes by placing a screwdriver (any style except fl...
- Page 18 Installation Figure 14: Removable fl ue collar in place. 4. Screw or nail the provided metal plate with the wording “THIS FIREPLACE HAS BEEN ALTERED TO ACCOMMODATE A FIREPLACE INSERT AND SHOULD BE INSPECTED BY A QUALIFIED PERSON PRIOR TO THE RE-USE AS A CONVENTIONAL FIREPLACE.”...
-
Page 19: Installation Using A Block-Off Plate For Usa Only
Installation USA O NSTALLATION SING LOCK LATE If this unit is to be installed into a masonry fi replace or a zero-clearance fi replace with a direct connection you must install a non-combustible seal-off device such as a block-off plate or damper adapter. By installing a block-off plate you seal the chimney, ensuring that no smoke enters the home and sealing the chimney to encourage draft. - Page 20 Installation 5. Mount the block-off plate using masonry screws in a masonry fi replace and sheet metal screws on a zero- clearance fi replace (screws Mantel need only be long enough to penetrate the fi rst layer of Stainless steel chimney metal).
-
Page 21: Model 1200 Ki Brick Placement & Tube Locations
Installation 1200 KI B & T ODEL RICK LACEMENT OCATIONS COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS. Tube E Tube D Tube A 1. Place the three (3) full size bricks along each side of the fi... -
Page 22: Model 1700 Ki Brick Placement & Tube Locations
Installation 1700 KI B & T ODEL RICK LACEMENT OCATIONS COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS. Tube C Tube B 1. Place the four (4) full size Tube A bricks along each side of the fi rebox and one (1) full size brick on either side of the back of the fi... -
Page 23: C-Cast Ceramic Baffl E Installation
Installation ERAMIC AFFLE NSTALLATION 1. Slide the right C-Cast Ceramic Baffl e in over the secondary air tubes at the top of the fi rebox. The tab must be on the top and pointing towards the center and the smooth side is to face down. 2. -
Page 24: Fan Wiring Diagrams
Installation WIRE B (Black) - 12” Black Fan Temp Sensor WIRE C (Black) - 14” + 14” Rocker Switch Black Black WIRE A (Black) - 26” AUTO White MANUAL Ground Power Supply Controller (Rheostat) Figure 24: KI Fan Wiring Diagram. EMOVAL The KI Insert comes with the fan assembled and installed in the left shroud. -
Page 25: Removal Of Top
Installation EMOVAL 1. To remove the top from the unit lift up and pull forward. Figure 26: Removal of Top. NSTALLATION URROUND ANEL 1. You will need to remove the top as shown above before installing the surround panel. 2. Once the top has been removed slide the surround panel over the unit. -
Page 26: Rating Label
Rating Label DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE Serial No. / No. De Serié: Tested & LISTED SOLID FUEL SPACE HEATER / IDENTIFIE COMME UN FOYER A COMBUSTIBLE SOLIDE Listed By Boston 1200 FPI Venice 1200 FPI KI 1200 FPI Boston 1200 FS Kodiak 1200 FS... -
Page 27: Parts List
EC-042 Heyco Strain Relief EC-044 Wood Door Gasket EF-168 Glass with Tape 10-000 Enviro Logo Gel Decal 50-322 1200 & 1700 Front Secondary Air Tube A 50-1099 1700 Rear Secondary Air Tube C 50-1100 1700 Middle Secondary Air Tube B... -
Page 28: Parts Diagram
Parts Diagram... -
Page 29: Warranty
Exclusions conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail. This warranty does not cover: In the event of a defect of material or workmanship during the specified warranty period, Damage as a result of improper usage or abuse. -
Page 30: Installation Data Sheet
NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: ______________ (dd/mm/yyyy) ADDRESS: DATE OF INSTALLATION:___________ (dd/mm/yyyy) _________________________________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com Jan. 14th 2014 C-14287...
