SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
OWNER'S MANUAL
INSTALLER:
Leave this manual with the wood stove.
CONSUMER:
Retain this manual for future reference.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD
BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT
IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
O- T L
Tested &
Beaverton
Listed By
Oregon USA
C
OMNI-Test Laboratories, Inc,

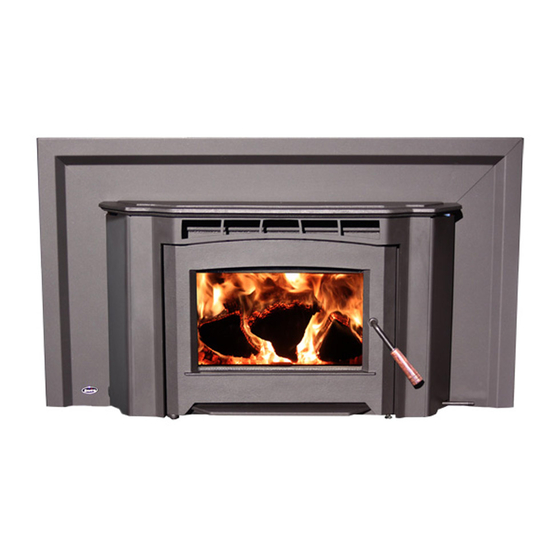

Models: 1200-V & 1700-V Insert
This heater meets the U. S. Environmental Protection Agencies emission limits
for wood heaters sold after July 1st, 1990. Under specific conditions this heater
has been shown to deliver heat at rates ranging from 11,479 to 34,196 BTU per
hour for the 1200-V and from 9,425 to 31,780 BTU per hour for the 1700.
Venice
Wood Stove
B Y : S H E R W O O D I N D U S T R I E S L T D
Contact your local building or fire officials,
or the authority having jurisdiction about
restrictions and installation inspection
requirements in your area.
50-1040
Advertisement
Table of Contents
Related Manuals for Enviro 1200-V Insert
Summary of Contents for Enviro 1200-V Insert
- Page 1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE OWNER’S MANUAL Models: 1200-V & 1700-V Insert INSTALLER: Leave this manual with the wood stove. CONSUMER: Retain this manual for future reference. PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD BURNING ROOM HEATER.
-
Page 2: Table Of Contents
Operating Instructions...4 Building Your Fire...5 How It Works...9 Specifications...10 Air Control...10 Specifications...10 Clearances To Combustibles - 1200-V Insert...11 Clearances To Combustibles - 1700-V Insert...12 Dimensions - 1200-V Insert...13 Dimensions - 1700-V Insert...14 Installation...15 Removal From Pallet...15 Modifications For Installation with 19 Masonry Fireplace Installation...16... -
Page 3: Safety Precautions
● Operate only with the door tightly closed and burn wood directly on the stove hearth. Do not operate if the door glass is broken or a gasket is missing or damaged. Do not alter the combustion air control valves. -
Page 4: Operating Instructions
Never strike or slam the door, hit the glass or let burning wood rest against it. If the glass cracks when the fire is burning, do not open the door until the fire is out and do not operate the stove again until the glass has been replaced. -
Page 5: Maintenance
3. Examine the flue pipes, chimney, attic, and roof of the house, to see if any part has become hot enough to catch fire. If necessary, spray with fire extinguisher or water from the garden hose. 4. Do not operate the stove again until you are certain the chimney and its lining have not been damaged. - Page 6 4. For Maximum Efficiency: When the stove is hot, load it fully to the top of the door opening and burn at medium low settings. When the fuel is mostly consumed, leaving a bed of red coals, repeat the process. Maximum heat for minimum fuel occurs when the stove top temperature is between 250°F (120°C) and 550°F (290°C).
- Page 7 Once the wood has started to ignite and the smoke has reduced, close the wood stove door fully. The reduction of smoke is a good indication that the draft in the chimney has started and good combustion is now possible.
- Page 8 Cold Chimney Temperature - Avoid cold chimney temperatures by burning a hot fire for the first fifteen to forty minutes, being careful not to over-fire the stove. If any part of the chimney or parts of the stove start to glow, you are over-firing the stove. Where possible, install a temperature gauge on the chimney so temperature drops can be seen.
-
Page 9: How It Works
Operating Instructions ORKS Convection Heat Primary air; window air wash (cooler air to keep the glass clean). Radiant Heat Pilot air through Twin pilot injection ports. Slider plate; used for air flow control. Convection Heat Primary air; window air wash (cooler air to keep the glass clean). -
Page 10: Specifications
Pull this control all the way out when first starting the stove. Once the fire has been established you may adjust this control to set the burn rate of the fire. If this damper is closed at first start-up, the fire will burn very slowly and could soot the appliance. -
Page 11: Floor Protection
LEARANCES OMBUSTIBLES Table 2: 1200-V Insert Clearance to Combustibles. A Minimum clearance to an unshielded side wall B Minimum clearance to an unshielded 8” (203 mm) mantel C Minimum top facing (protruding 3⁄4” [19 mm]) clearance D Minimum side facing (protruding 3⁄4” [19 mm]) clearance E †... -
Page 12: Clearances To Combustibles - 1700-V Insert
LEARANCES OMBUSTIBLES Table 5: 1700-V Insert Clearance to Combustibles. Minimum clearance to an unshielded side wall Minimum clearance to an unshielded 8” (203 mm) mantel Minimum top facing (protruding 3⁄4” mm]) clearance Minimum side facing (protruding 3⁄4” mm]) clearance † From front of door opening to edge of floor protection †... -
Page 13: Dimensions - 1200-V Insert
Specifications - 1200-V I IMENSIONS NSERT... -
Page 14: Dimensions - 1700-V Insert
Specifications - 1700-V I IMENSIONS NSERT... -
Page 15: Installation
Please read and understand these instructions before installing pedestal or ash pan and leg option. Failure to follow these instructions carefully could cause personal injury or property damage. All screws are pre-installed on the base of the unit. EMOVAL ALLET •... -
Page 16: Masonry Fireplace Installation
- 1700-V I 1. Remove any fireplace damper or fasten in a permanent open position. 2. (IN CANADA) The stove is vented with a 6” stainless steel liner that goes directly to Mantel the top of the chimney and is covered with a rain cap. - Page 17 Floor Protection Masonry Fireplace Combustible Floor Figure 11: Insert Installation into existing fireplace without hearth. Masonry Fireplace 1" (25mm) Non-Combustible Board (K 0.84) Figure 12: Insert Installation into existing floor level masonry fireplace. f) Place the Collar Puller, over the two bolts of the Flue Collar and pull it into place (see Figure 14).
-
Page 18: Surround Panel Sealed Installation For Usa Only
URROUND ANEL EALED NSTALLATION Note: Though this is an allowable installation, we do not recommend it because of the possibility of poor draft, and therefore poor stove performance. Before starting this type of installation refer to I NSTALLATION ASONRY IREPLACE for additional information. -
Page 19: Modifications For Installation With
NSTALLATION SING LOCK If this unit is to be installed into a masonry fireplace or a zero-clearance fireplace with a direct connection you must install a non-combustible seal-off device such as a block-off plate or damper adapter. By installing a block-off plate you seal the chimney, ensuring that no smoke enters the home and sealing the chimney to encourage draft. - Page 20 5. Mount the block-off plate using masonry screws in a masonry fireplace and sheet metal screws on a zero- clearance fireplace (screws need only be long enough to penetrate the first layer of metal). 6. Insulate the block-off plate using high - temperature fiberglass insulation...
-
Page 21: Model 1200-V Brick Placement & Tube Locations
1200-V B ODEL RICK LACEMENT COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS. Figure 21: Brick Placement for 1200-V shown with Secondary Air Channel and Tubes. When replacing bricks, use only pumas type fire bricks. TOTAL BRICKS: 12 - Full size bricks 9”... -
Page 22: Model 1700-V Brick Placement & Tube Locations
1700-V B ODEL RICK LACEMENT COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS. Figure 22: Brick Placement for 1700-V shown with Secondary Air Channel When replacing bricks, use only pumas type fire bricks. TOTAL BRICKS: 16 - Full size bricks 9”... -
Page 23: C-Cast Ceramic Baffle Installation
ERAMIC AFFLE NSTALLATION 1. Slide the right C-Cast Ceramic Baffle in over the secondary air tubes at the top of the firebox. The tab must be on the top and pointing towards the center and the smooth side is to face down. 2. -
Page 24: Fan Removal
Black Fan temperature sensor Black Figure 24: Fireplace Insert Fan Kit Wiring Diagram. EMOVAL The Insert comes with the fan assembled installed in the left shroud. 1) Disconnect all electrical connections for the fan kit. 2) Remove the four (4) 1⁄2” hex head screws that hold the fan mounting plate to the shroud. -
Page 25: Removal Of Face
EMOVAL Figure 26: Removal of Face. NSTALLATION URROUND 1. Loosen (but do not remove) the four (4) 1⁄4” screws holding the cast top. 2. List the cast top off the unit and place to the side. 3. Loosen the four (4) torx T-20 screws holding the face on the unit. -
Page 26: Rating Label
CAUTION: An uninsulated smoke pipe must not pass through an attic, roof space, closet or similar concealed space, or through a floor, ceiling, wall, or partition, or any combustible construction. † FLOOR PROTECTION: If a stove is installed on a combustible floor, it must have a pedestal attached and be on a NON COMBUSTIBLE hearth pad * ALL CLEARANCES CAN BE REDUCED WITH SHIELDING ACCEPTABLE TO THE LOCAL AUTHORITY. -
Page 27: Parts List
Domestic Power Cord 115V Heyco Strain Relief Wood Door Gasket Glass with Tape Enviro Logo Gel Decal 1200 & 1700 Front Secondary Air Tube A 1700 Rear Secondary Air Tube C 1700 Middle Secondary Air Tube B 1200 Secondary Air Tube Rear E 1200 Secondary Air Tube Middle D Pumice Brick 3”... -
Page 28: Parts Diagram
Parts Diagram... -
Page 29: Warranty
Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality. - Page 30 Limited Warranty. 7. Misuse includes over-firing. This will result if the stove is used in such a way that one or more of the plates glows red. Over-firing can be identified later by warped plates and paint pigment being burnt off. Over-firing this appliance can cause serious damage and will nullify the Limited Warranty.
- Page 31 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 23. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
-
Page 32: Installation Data Sheet
INSTALLER’S SIGNATURE: _________________________________________ NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com June 2, 2009 C-11981...
