SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
OWNER'S MANUAL
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life. Installation and
service must be performed by a qualified installer, service agency or the gas supplier.
FOR YOUR SAFETY: Do not store or use gasoline or other Flammable vapours and
liquids in the vicinity of this or any other appliance.
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas fitter when installed within the Commonwealth of Massachusetts. Other
Massachusetts code requirements: Flexible connector must not be longer than 36in., a
shut off valve must be installed; only direct vent sealed combustion products are approved
for bedrooms/bathrooms. A carbon monoxide detector is required in all rooms containing
gas fired direct vent appliances.

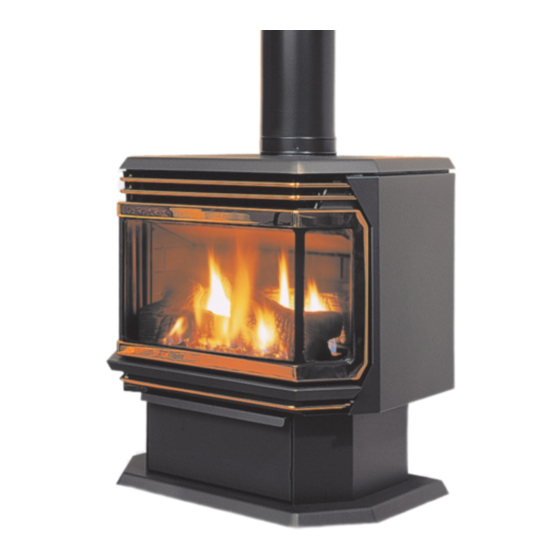

EG28 DV
B Y : S H E R W O O D I N D U S T R I E S L T D
WHAT TO DO IF YOU SMELL GAS
• Open windows/Extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use any
phone in your building.
• Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
This appliance may be installed in an after market
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
WARNING
certified kit is used.
EG28-120
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enviro EG28 DV
Summary of Contents for Enviro EG28 DV
- Page 1 A carbon monoxide detector is required in all rooms containing gas fired direct vent appliances. EG28 DV B Y : S H E R W O O D I N D U S T R I E S L T D WHAT TO DO IF YOU SMELL GAS •...
-
Page 2: Safety Precautions
Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed in accordance with their instructions. Carefully read all the instructions in this manual first. Consult the building authority having jurisdiction to determine the need for a permit prior to commencing the installation. -
Page 3: Table Of Contents
Table of Contents Safety Precautions...2 Table of Contents...3 Codes And Approvals...4 Specifications...5 Dimensions...5 Rating Label Location...5 Operating Instructions...6 Lighting Instructions...6 Normal Sounds During Operation...7 Adjusting The Venturies...7 Maintenance and Service...8 Opening The Door...8 Cleaning The Glass...8 To Replace Door...8 Cleaning The Firebox...8 Cleaning Plated Surfaces...9 Burner Removal...9 Replacing The Blower...9... -
Page 4: Codes And Approvals
After the unit has gone through the first burn turn the unit off including the pilot, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer. -
Page 5: Specifications
IMENSIONS 11" (279 mm) 4" (102 mm) 22" (559 mm) ATING ABEL OCATION The rating label is found inside the right cabinet side panel. Specifications Shipping Weight 210 lbs (95 kg) 19" (483 mm) (699 mm) Figure 1: EG28 Exterior Dimensions. "... -
Page 6: Operating Instructions
Operating Instructions FOR YOUR SAFETY READ COMPLETELY BEFORE OPERATING. IGHTING NSTRUCTIONS WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, or loss of life. Refer to owner's information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. -
Page 7: Normal Sounds During Operation
Operating Instructions Thermopile Thermocouple Figure 3: Pilot Burning. DJUSTING ENTURIES • Remove the ash shelf by undoing the screw at each end, pull shelf towards you. • Remove one screw from the cover plate located below the ash shelf. Loosen the other screw (do not remove) swing the cover plate out of the way and tighten screw down to hold it in place. -
Page 8: Maintenance And Service
The glass in this appliance is ceramic. If the glass is damaged or broken a factory door with glass replacement must be used. Remove the door with glass, a new door assembly must be purchased from an ENVIRO dealer (part #: EG28-103). Do not use a substitute materials; it will void the warranty. -
Page 9: Cleaning Plated Surfaces
Maintenance and Service LEANING LATED URFACES It is important to note that fingerprints and other marks can leave a permanent stain on plated finishes. To avoid this, give the face a quick wipe with denatured alcohol on a soft cloth BEFORE lighting the fireplace. -
Page 10: Fuel Conversion
Maintenance And Service ONVERSION TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY Please read and understand these instructions before installing. Warning: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. -
Page 11: Testing For Leaks
Maintenance And Service Convert the SIT gas valve: a) Remove the black protection cap from the HI/LO knob by hand shown in Figure 9. b) Insert a c) Check that the screw is clean and if necessary Loosen d) Flip the screw (refer to Figure 11). Tighten e) Using the Allen wrench as shown in Figure 10, f) Verify that if the conversion is from NG to LPG,... -
Page 12: Initial Installation
• Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation and comfort. • As the stove is equipped with a convection fan, ensure that an electrical outlet is within 6 ft (1.8 m) of the stove. -
Page 13: Planning Your Installation
Initial Installation QUALIFIED INSTALLERS ONLY LANNING NSTALLATION When planning your installation, it will be necessary to select the proper length of vent pipe for your particular requirements. It is important to note when passing through a wall, the maximum allowable wall thickness is 10 inches (25.4 cm), 11⁄2 inches (3.8 cm) clearance to combustibles must be maintained. -
Page 14: Corner Installations
Initial Installation ORNER NSTALLATIONS Do not interfere with the structural integrity of the walls. OBILE NSTALLATION • When the unit is installed in a Mobile Home it must be grounded to the steel chassis or connected to a grounding rod. •... -
Page 15: Vent Termination Restrictions
Initial Installation QUALIFIED INSTALLERS ONLY ERMINATION ESTRICTIONS Fixed Closed Openable Termination Cap Figure 18. Vent Termination Restrictions, refer to Table 3. Table 3: Vent termination clearances, refer to Figure 18. Letter Canadian Installation 12 in (30 cm) 12 in (30 cm) 12 in (30 cm)* 24 in (60 cm)* 18 in (45 cm)*... -
Page 16: Freestanding Direct Vent Kit With Coupler
4. Install the 90° elbow onto the vertical pipe on the stove pointing in the direction that the vent will exit 5. Project a level line from the center point of the elbow. Using this center 6. - Page 17 Initial Installation QUALIFIED INSTALLERS ONLY 11. Stretch the liner out. Attach the flexible liner to the vent termination cap by placing a small bead of high temperature silicone on the vent termination and slide the flex liner onto the vent terminal and secure with three (3) sheet metal screws evenly spaced.
-
Page 18: Other Approved Vent Parts
Initial Installation 16. Slide the 90° elbow over the flex pipe. Do not slip the outer sections of pipe together, you will require some movement in these pipe section in order to secure the flex pipe to the flue outlet on the appliance. 17. - Page 19 Initial Installation QUALIFIED INSTALLERS ONLY Table 4: Vent part numbers (Must state if galvanized or black wanted, PART NUMBERS). Direct Vent GS Direct-Temp Secure Vent 4DT-6 4DT-9 4DT-12 4DT-24 4DT-36 4DT-48 4DT-EL45 4DT-EL90 4DT-VS 4DT-WT 4DT-SC 4DT-FS 4DT-WS/B 4DT-HKA 4DT-AJ 4DT-AF6 943S 4DT-AF12...
-
Page 20: Vent Configurations
This restrictor ring is to be installed when the vertical chimney installation is over 15 feet (4.57 m). Before the chimney is placed onto the stove, place this vent restrictor ring into the 4 inch (10.2 cm) flue pipe (as shown), once the vent restrictor ring has been installed, the vertical sections of chimney can be installed. -
Page 21: Horizontal Installation
Woodscrews ��� ������� ��� ������� Figure 25: Wall Framing Hole for Horizontal Installation. 3. With attached stove in the correct location, mark the wall for a 10” (25.4 cm) x 10” (25.4 square (refer Figure 25). The center of square... - Page 22 Initial Installation 4. Position the horizontal vent termination in the center of the 10” (25.4 cm) x 10” (25.4 cm) hole, and attach to the exterior wall with the four screws provided. Before attaching the vent termination to the exterior wall, run a bead of non-hardening mastic around the edges, so as to make a seal between the termination and the wall.
-
Page 23: Vertical Installation
Initial Installation QUALIFIED INSTALLERS ONLY ERTICAL NSTALLATION 1. Check the instructions for required clearances (air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafters, or other nearby combustible surfaces. Do not pack air spaces with insulation. 2. Set the gas appliance in the desired location. Drop a plumb bob down from the ceiling to the position of the appliance flue exit, and mark the location where the vent will penetrate the... - Page 24 Initial Installation support straps to the roof. Seal the nails holes heads with non-hardening mastic. Trim the excess length of the support straps that extend out beyond the edge of the flashing. 7. Slip the flashing over the pipe section protruding through the roof. Secure the base of the flashing to the roof with roofing nails.
-
Page 25: Cathedral Ceiling Installation
Initial Installation QUALIFIED INSTALLERS ONLY • For multi story installations. A ceiling firestop is required at the second floor, and any subsequent floors (see Figure 33). The opening should be framed to 10” (25.4 cm) x 10” (25.4 cm) inside dimensions, in the same manner as shown in Figure 29. -
Page 26: Venting Into A Class 'A' Chimney
ENTING INTO A LASS This model is also certified and tested to vent into CLASS ‘A’ wood stove chimneys. Place the freestanding direct vent appliance in the desired location. Use a conversion kit from Simpson Duravent (931, 932, or 933), or Security Chimney (SV4CCK1, SV4CCK2, or SV4CCK1). -
Page 27: Electrical Requirements
LECTRICAL EQUIREMENTS The ENVIRO EG28 will operate without electrical power. This model has a millivolt gas control, which uses the pilot flame to generate enough electricity to operate the main burners. The appliance is equipped with a blower and must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE Part 1, SAFETY... -
Page 28: Gas Line Connection And Testing
GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a 3⁄8” male NPT fitting. Consult your local authorities codes or the CAN/CGA B 149 (1 or 2) installation code in Canada, or in the USA gas installations follow either local codes or the current edition of the National Fuel Gas Code ANSI Z223.1. -
Page 29: Secondary Installation
If over time, through cleaning and servicing, these embers replacement, contact ENVIRO dealer replacement embers. 1. The embers can be place before or after the logs are placed. A bag of ceramic fiber embers and rock wool embers is provided gently remove the ember material from the plastic bag. - Page 30 Secondary Installation 3. Place the log set into the firebox. Locate each log by seating it down onto the burner tray support pins. Resting Areas for Follow Figures 11 to 16 proper log Center Log placement. 4. Upon the first light up, watch for ignition to ALL burner ports.
-
Page 31: Trouble Shooting
Trouble Shooting Problem Possible Cause The main burner does not The gas valve may not be on. ignite when called for. Thermostat is not calling for heat. Problem with gas valve. Spark will not light the pilot Defective piezo ignitor. after repeatedly pressing the spark ignitor. -
Page 32: Parts List
Reference Number Parts List Part Description 120°F (49°C) Ceramic Temperature Sensor Thermocouple Spark Electrode with Cable Thermopile Pilot NG with Electrode Pilot LP with Electrode Fully Assembled Pilot NG Fully Assembled Pilot LP Pilot Orifice NG Pilot Orifice LP Pilot Gasket S.I.T. - Page 33 Parts List Reference Number Part Description Pedestal Door Burner Tray Top DV Owner’s Manual Cabinet Side Panel Firebox Baffle DV Stove Top Fan Kit DV Top Baffle Pedestal Wiring Plate Pedestal Back Ash Shelf Door Hinge Bracket Door Latch Bracket DV 4”...
-
Page 34: Parts Diagram - Chassis
Parts Diagram - Chassis � �� �� � �� �� EG 28 Body (Chassis) DV April 2006 �� �� �� �� �� �� �� � ��... -
Page 35: Parts Diagram - Gas Tray & Door
Parts Diagram - Gas Tray & Door... -
Page 36: Warranty
Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a fireplace or stove, you’re buying a company with years of unequalled performance and quality. - Page 37 Sherwood Industries Ltd. The use of such products may nullify the Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation.
- Page 38 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
-
Page 39: Installation Data Sheet
Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MODEL:___________________________________ SERIAL NUMBER:___________________________ DATE OF PURCHASE: _____________ DATE OF INSTALLATION:___________ � � NATURAL GAS (NAT) INLET GAS PRESSURE:_________in wc MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam.
