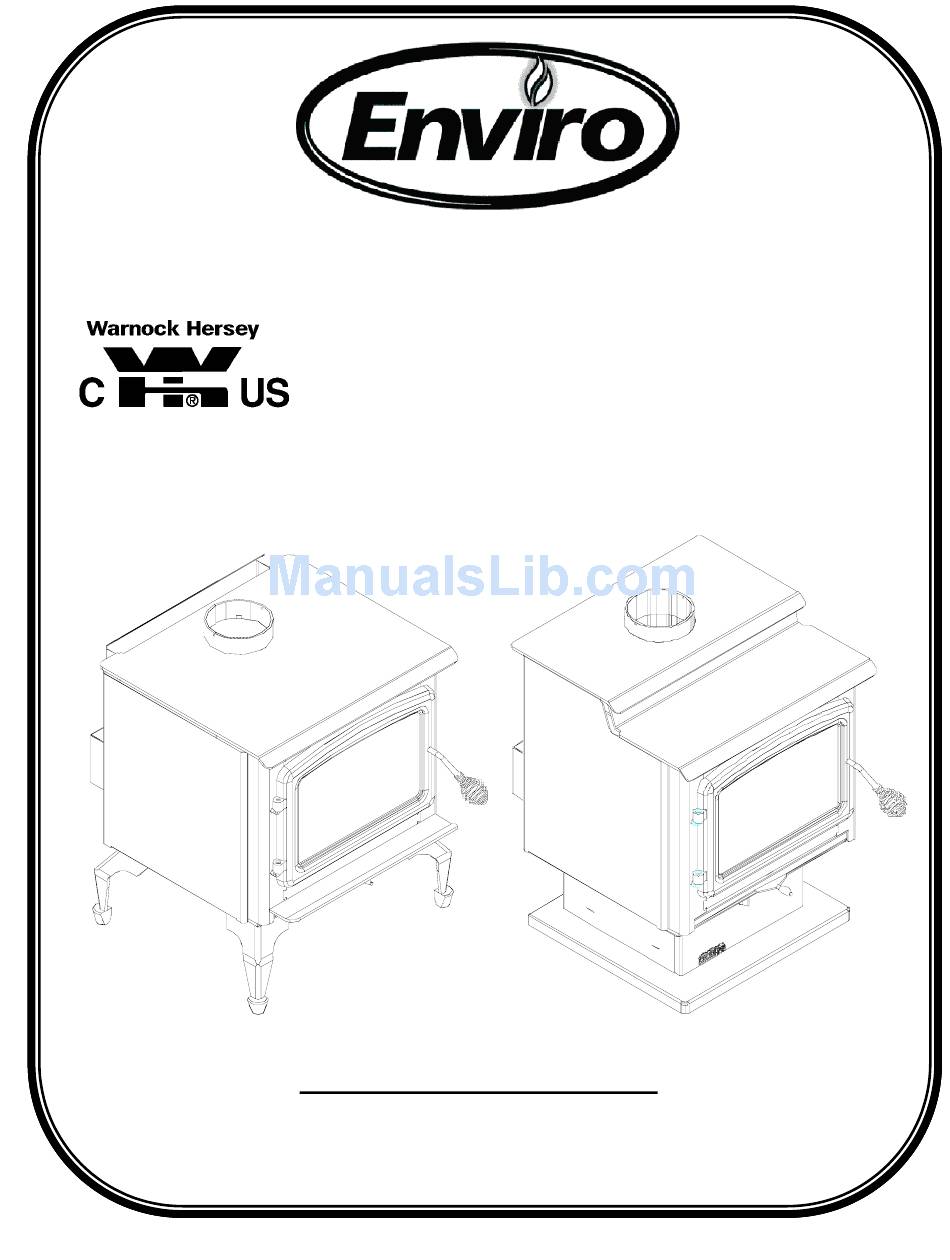

- Page 1 ENVIROFIRE WOOD STOVE 1000, 1600, 1600INS, 2100 MODELS OWNERS AND OPERATORS MANUAL SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD ROAD VICTORIA , BRITISH COLUMBIA V8M-2A3...
-
Page 2: Table Of Contents
TABLE OF CONTENTS • PLEASE READ AND SAVE INSTRUCTIONS SAFETY WARNING • OPERATING INSTRUCTIONS • • PEDESTAL INSTALLATION • BRICK INSTALLATION • MODEL 1000 • MODEL 1600 INSERT • MODEL 2100 • FREESTANDING INSTALLATION 9-10 • MOBILE HOME INSTALLATION • FIREPLACE INSERT INSTALLATION •... -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS STARTING: Place crumpled paper on the stove floor and cover with kindling. Open the draft fully and ignite. Hold the door slightly a jar for a few minutes and then close tightly. After the wood is burning brightly add more dry wood and, when the fire is hot, use the draft control to adjust the burn rate. -
Page 4: Disposal Of Ashes
DISPOSAL OF ASHES: If you let the ashes accumulate two or three inches on the floor they tend to burn themselves up. Open the small trap door located on the floor of the unit. Push the ashes that have accumulated into the hole were the ashes would drop into the ash pan. - Page 5 PEDESTAL AND LEG INSTALLATION Please read and understand these instructions before installing ash pan and leg option. Failure to follow these instructions carefully could cause personal injury or property damage. All screws are pre installed on the base of the unit. PEDESTAL •...
-
Page 6: Model 1000
MODEL 1000 BRICK PLACEMENT: COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS. 1. Place the bottom layers of the sides and back of the firebox. 2. Place the floor bricks. The spaces between the bricks will soon fill with ashes. 3. - Page 7 MODEL 1600 BRICK PLACEMENT: COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS. 1. Place the bottom layers of the sides and back of the firebox. 2. Place the floor bricks. The spaces between the bricks will soon fill with ashes. 3.
- Page 8 MODEL 2100 BRICK PLACEMENT: COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING BRICKS. 1. Place the bottom layers of the sides and back of the firebox. 2. Place the floor bricks. The spaces between the bricks will soon fill with ashes. 3.
-
Page 9: Model 1600 Insert
FREESTANDING INSTALLATION: CHIMNEY: Vent the stove into a clean, lined, approved masonry chimney in good condition, conforming to local building codes or a listed 6” factory built chimney suitable for use with solid fuels and conforming to, ULC-S629 in CANADA or UL- 103HT in the U.S.A.. -
Page 10: Alcove Installation
OUTSIDE AIR: Pedestal A 4” (10.16 cm) fresh air adapter kit is available. This adapter can be installed either rear on the back pedestal or through the floor under the pedestal. Place the 1/4” mesh screen between the fresh air adapter and the body of the pedestal. -
Page 11: Mobile Home Installation
MOBILE HOME INSTALLATION SPECIAL REQUIREMENTS: Pedestal models 1000 and 1600 are approved for mobile homes. All freestanding installation requirements on the preceding page plus the following must be met: VENTING: In Canada: Any ULC-629 listed chimney system with the accompanying double wall vent connector. In U.S.A. Any HT-103 listed chimney system with the accompanying double wall vent connector. - Page 12 MODEL 1600 INS FIREPLACE INSERT Unless you are experienced, we recommend installation by your dealer or a professional installer. Install only in a masonry fireplace at least 25” (635 mm) wide, 22” (560 mm) high and 14” (356 mm) deep with an approved lined chimney at least 15 ft (4.6 m) high, both of which have been constructed in accordance with the building code.
-
Page 13: How It Works
HOW IT WORKS SPECIFICATIONS: MODEL 1000 MODEL 1600 MODEL 1600fpi MODEL 2100 24 X 21” 24 X 25.5” 24 X 25.5” 24 X 30” WIDTH X DEPTH (.61 X .53 M) (.61 X ..64 M) (.61 X ..64 M) (.61 X .76 M) HEIGHT ON PEDESTAL 33 “... -
Page 14: Door Installation
DOOR INSTALLATION Remove the door from the packaging. Inspect the door assembly for damage. DO NOT USE DOOR IF GLASS IS BROKEN. Place the door assembly on the two hinge pins mounted on the body of the unit. Open and close the door, applying pressure down, to ensure the door assembly is properly seated on the hinges. -
Page 15: Optional Fan Installation (Wiring Diagram)
OPTIONAL FAN INSTALLATION The appliance when installed, must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE. Part 1, SAFETY STANDARDS FOR ELECTRICAL INSTALLATIONS, or THE NATIONAL ELECTRICAL CODE ANSI / NFPA 70 in the USA. - Page 16 DO NOT REMOVE THIS LABEL LISTED SOLID FUEL SPACE HEATER SERIAL NO. MODEL: 1000 1600 2100 1600 INS MODEL 1000 SUITABLE FOR USE IN MOBILE HOMES. CERTIFIED FOR CANADA AND THE U.S.A. REPORT NO. J99011443-231 TESTED TO CSA B366.2/ULC-S627, ULC-S628-M93, UL-1482-1994 REPORT NO.
-
Page 17: Parts And Accessories
PARTS AND ACCESSIORIES PLEASE CONTACT YOUR LOCAL ENVIROFIRE DEALER WHEN REPLACEMENT PARTS ARE REQUIRED. EF-163 WOOD STOVE PAINTED DOOR EF-164 WOOD STOVE GOLD DOOR EF-165 1600 FPI PANEL SET (REGULAR) EF-166 1600 FPI PANEL SET (OVERSIZE) EF-167 FAN KIT (1000, 1600, 2100, (FREESTANDING ONLY) EF-168 DOOR GASKET EF-169... -
Page 18: Warranty
WARRANTY Because of our high standards Sherwood Industries Ltd. can offer a *Lifetime Warranty on all it’s wood products. Covered under this warranty are Cabinet Sides, Tops, Pedestals, Surround Panels, Removable Air Channel, and Chassis. These steel components are covered against manufacture’s defects for 1 year on parts and labor and for parts only for the next 4 years. - Page 19 SECONDARY AIR TUBE SOLID ASH EF-171 COVER CONTROLLER EF-196 SET OF FOUR (4) LEGS W/ ASH EF-179 CONVECTION BL0WER EF 1000 EF-180 FAN KIT PAINTED -EFW 250 EFW 261 120° TEMPERATURE GOLD -EFW 251 SENSOR NICKEL- EFW 252 EF-205 EF 1600-2100 FLAT TOP PAINTED- EFW-265 CABINET SIDES...
