Atlona AT-LINE-PRO2 User Manual

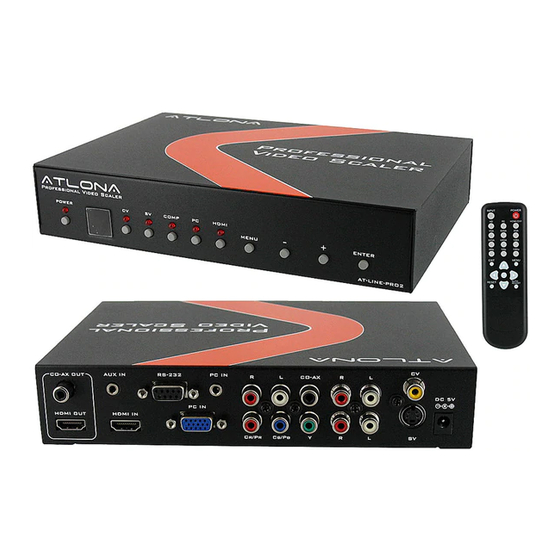

Atlona cv/sv/pc/hd/hdmi 1080p scaler box at-line-pro2
Hide thumbs Also See for AT-LINE-PRO2:
Table of Contents

Advertisement

Quick Links

Download this manual

User Manual

CV/SV/PC/HD/HDMI 1080p
Scaler Box
AT-LINE-PRO2
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-LINE-PRO2 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-LINE-PRO2

Summary of Contents for Atlona AT-LINE-PRO2

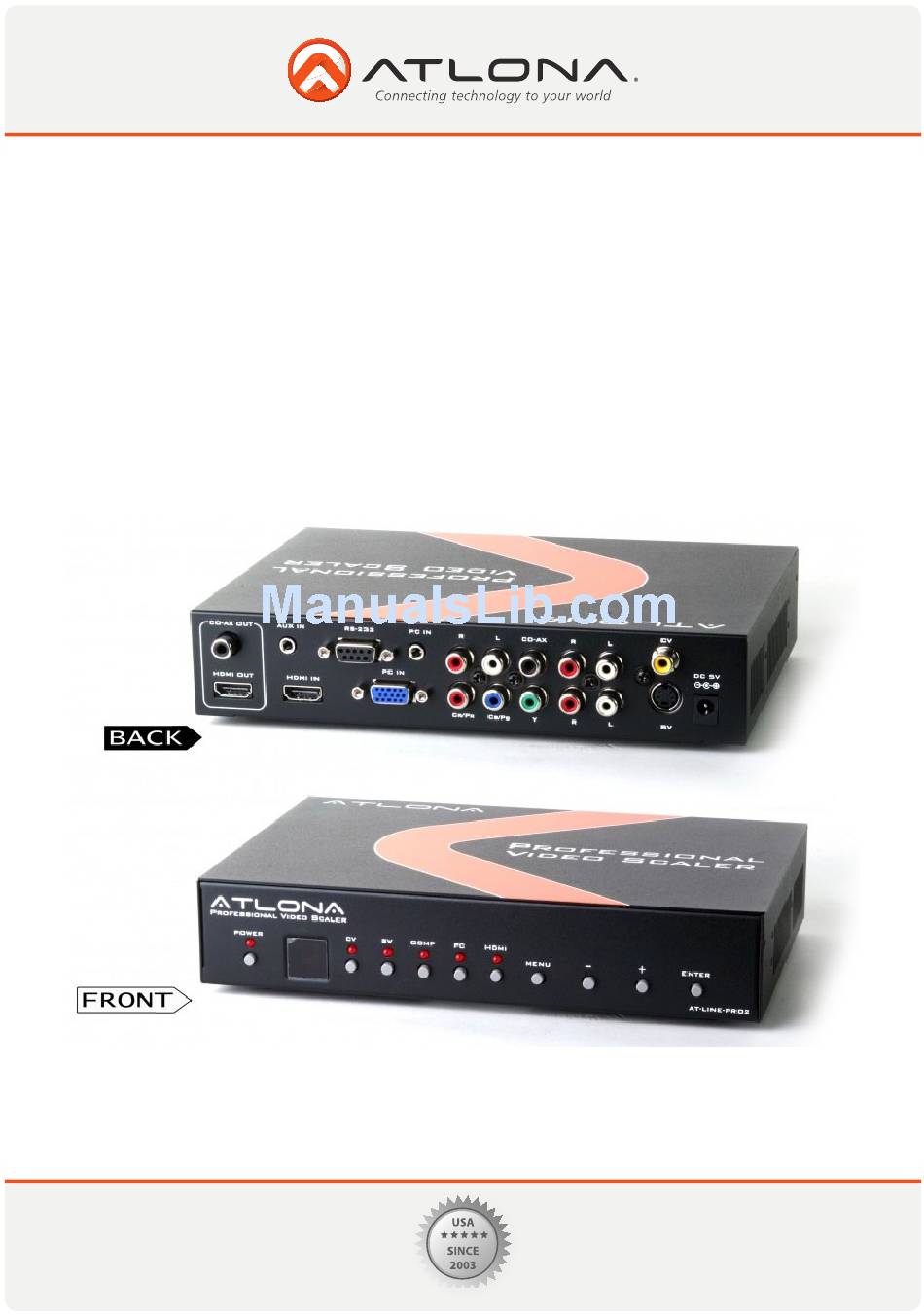

  • Page 1: User Manual

    User Manual CV/SV/PC/HD/HDMI 1080p Scaler Box AT-LINE-PRO2 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    5. RS-232 Remote Control Protocol ..........7 6. Specifications ..........11 6.1 General Specification ..........11 6.2 Support Resolution ..........11 7. Safety Information ..........13 8. Warranty ..........14 9. Atlona Product Registration ..........15 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 3: Introduction

    WUXGA (1920 x 1200.) Besides video upscaling, the scaler box also converts digital/analog audio signal to digital format, then output either through HDMI combining with the video, or Coaxial S/PDIF separately. AT-LINE-PRO2 has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.

  • Page 4: Operation Controls And Functions

    On the first tier of OSD menu, use + and - buttons to move up/down the highlight item for selection. b. Once the desired option is selected, use + and - buttons to toggle between setting values. 6. ENTER Button: In OSD menu, use the ENTER button to confirm the selection Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 5: Rear Panel

    DVD player or Set-Top-Box. And, connect the L/R audio input ports to the au- dio output port of your audio source equipment. 9. Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 6: Osd Operation

    OFF / 40MS / 110MS / 150 MS SOUND ON / MUTE EXIT Back to the 1st Tier INFORMATION SOURCE (Input interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close the OSD Menu Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 7: Remote Control

    4.4. Remote Control 1. POWER: Press the button once to power on the AT-LINE-PRO2. Press again to enter standby mode. 2. INPUT: Press the button repeatedly to toggle through various input sources. 3. HD Input: Press the button to directly select component input.

  • Page 8: Rs-232 Remote Control Protocol

    LINE-PRO2 RS-232 REMOTE CONTROL PROTOCOL * The connection between AT-LINE-PRO2 and remote controller with RS-232 modem cable. Pins definition of modem cable AT-LINE-PRO2 Remote Controller Definition Definition * RS-232 transmission format: Baud Rate: 19200 bps Data Bit: 8 bits Parity: None...
  • Page 9 S SIZE 1 > SIZE OVERSCAN SCALER OVERSCAN OUTPUT S SIZE 2 > SIZE UNDERSCAN SCALER UNDERSCAN OUTPUT S SIZE 3 > SIZE LETTERBOX SCALER LETTERBOX OUTPUT S SIZE 4 > SIZE PANSCAN SCALER PANSCAN OUTPUT Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 10 S AUDIOMUTE 0-1 > AUDIOMUTE OFF-ON 0:OFF; 1 :ON, AUDIO MUTE CONTROL S AUDIODELAY 0-3 > AUDIODELAY OFF-l 50MS 0:OFF; 1:40MS; 2:110MS; 3:150MS, AUDIO DELAY SETTING S RESET 1 > RESET ON RESET ACTION Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 11 > OSDTIMEOUT 0-100 SHOW OSD TIMEOUT STATUS R OSDBACKGROUND > OSDBACKGROUND 0-8 SHOW OSD BACKGROUND STATUS R AUDIOMUTE > AUDIOMUTE OFF-ON SHOW AUDIO MUTE STATUS R AUDIODELAY > AUDIODELAY QFF-150MS SHOW AUDIO DELAY STATUS Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 12: Specifications

    SVGA@ (56/60/72/75/85) SVGA@ (56/60/72/75/85) XGA@ (60/70/75/85) XGA@ (60/70/75/85) SXGA@(60/75/85) SXGA@(60/75/85) UXGA@60 UXGA@60 WXGA@60( 1280X800) WXGA@60( 1280X800) WSXGA@60( 1680X1050) WSXGA@60( 1680X1050) v WUXGA@60( 1920X1200) WUXGA@60( 1920X1200) v *: 480i@30x2 / 576i@30x2 * : 480i@30x2 / 576i@30x2 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 13: Connection And Installation

    2. Unplug the Power Supply from the backand wait 5 seconds. 3. Plug the Power Supply back in and release the MENU button. 4. The unit should now be reset to its default settings Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 14: Safety Information

    It may also cause damage to your AT-LINE-PRO2. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 15: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.

  • Page 16: Atlona Product Registration

    ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
