  • Page 1 AtlonA CV/SV/PC/HD/HDMI 1080p Scaler Box AT-LINE-PRO2 User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Package Contents ..........4. Operation Controls and Functions ..........4.1 Front Panel ..........4.2 Rear Panel ..........4.3 OSD Operation ..........4.4 Remote Control ..........5. RS-232 Remote Control Protocol ..........

  • Page 3: Introduction

    INTRODUCTION Atlona Scaler Box is designed to upscale digital/analog video signal from Composite, S-Video, PC, Component (HD) and HDMI input sources, to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p and WUXGA (1920 x 1200.) Besides video upscaling, the scaler box also converts digital/analog audio signal to digital format, then output either through HDMI combining with the video, or Coaxial S/PDIF separately.

  • Page 4: Operation Controls And Functions

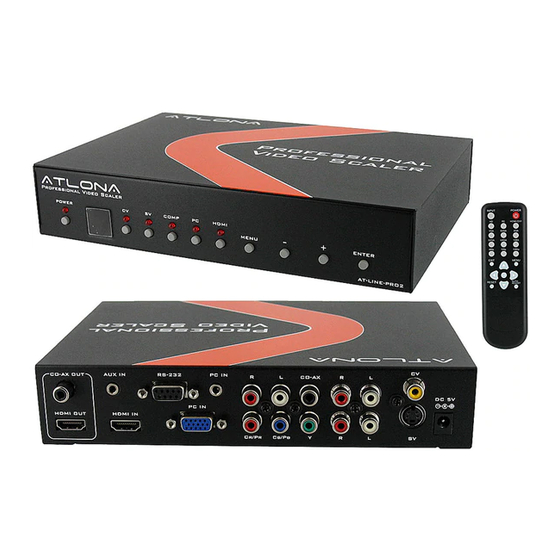

    OPERATION CONTROLS and FUNCTION Front Panel 1. POWER Button and LED Indicator: Press the button to turn ON/OFF the power of the unit. The LED will illuminate when the power is turned on. 2. IR remote control sensor. 3. Input Selection Buttons and LED Indicators: Press each of the buttons (CV/SV/COMP/ PC/HDMI) to select the desired input source.

  • Page 5: Rear Panel

    Rear Panel 1. HDMI OUT and CO-AX OUT: Connect the HDMI OUT port to the HDMI input port of your display such as HDTV. Connect the CO-AX OUT port to the Coaxial (S/PDIF) input port of your amplifier for separate digital audio output. 2.

  • Page 6: Osd Operation

    OSD Operation 1st Tier Option 2nd Tier Option Adjustment VIDEO - PICTURE MODE USER / STANDARD / VIVID / MOVIE - CONTRAST 0 ~ 100 of Contrast Level - BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Leve - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS...

  • Page 7: Remote Control

    Remote Control 1. POWER: Press the button once to power on the AT-LINE-PRO2. Press again to enter standby mode. 2. INPUT: Press the button repeatedly to toggle through various input sources. 3. HD Input: Press the button to directly select component input.

  • Page 8: Rs-232 Remote Control Protocol

    RS-232 REMOTE CONTROL PROTOCOL The connection between AT-LINE-PRO2 and remote controller with RS-232 modem cable. Pins definition of modem cable: AT-LINE-PRO2 Remote Controlle Definition Definition RS-232 transmission format: Baud Rate: 19200 bps Data Bit: 8 bits Parity: None Stop Bit: 1 bit...
  • Page 9 (A) Set Command: Command Code Response Description S POWER 0 >POWER OFF POWER OFF S POWER 1 >POWER ON POWER ON S SOURCE 0 >SOURCE CV CV INPUT S SOURCE 1 > SOURCE SV SV INPUT S SOURCE 2 > SOURCE COMP COMP INPUT S SOURCE 3 >...
  • Page 10 S COLORTEMP 0~3 >COLORTEMP NORMAL~USER 0:NORMAL; 1:WARM; 2:COOL; 3:USER. COLOR TEMP SET- TINGS S RED 0~100 > RED 0~100 COLOR TEMP ”RED” ADJUST [Default:47] S GREEN 0~100 > GREEN 0~100 COLOR TEMP “GREEN“ ADJUST [Default:47] S BLUE 0~100 > BLUE 0~100 COLOR TEMP “BLUE“...

  • Page 11: Specifications

    SPECIFICATIONS General Specification • Frequency bandwidth: 1.65Gbps (single link) • Input Ports: Composite x 1 / L/R x 1 S-Video x 1 / L/R x 1 Component (3 RCA) x 1 / L/R x 1 PC D-Sub (15-pin) x 1 / 3.5mm Phone Jack x 1 HDMI x 1 / 3.5mm Phone Jack x 1 (for DVI) Coaxial (S/PDIF) x 1 •...

  • Page 12: Connection And Installation

    CONNECTION and INSTALLATION...

  • Page 13: Safety Information

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 14: Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
