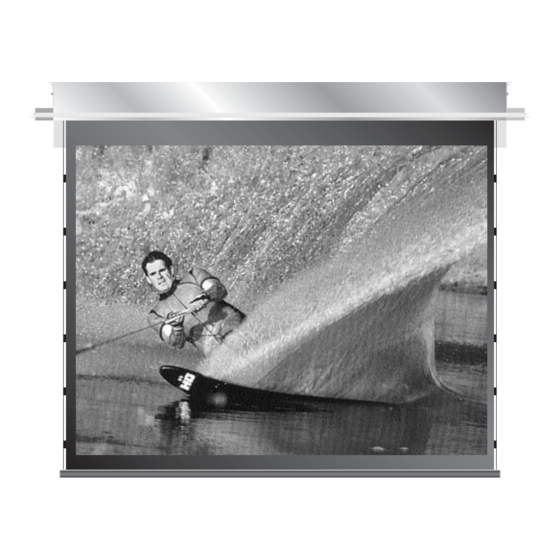

ABT Trapdoor Electriscreen
Owner's Manual
TO THE OWNER
INSTALLATION INSTRUCTIONS
OPERATING THE SCREEN
MAINTENANCE
ABT-0111
TO THE INSTALLER : BE SURE TO LEAVE THIS MANUAL WITH TH E OWNER.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABT Trapdoor Electriscreen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stewart Filmscreen Corp ABT Trapdoor Electriscreen

  • Page 1 ABT Trapdoor Electriscreen Owner’s Manual • TO THE OWNER • INSTALLATION INSTRUCTIONS • OPERATING THE SCREEN • MAINTENANCE ABT-0111 TO THE INSTALLER : BE SURE TO LEAVE THIS MANUAL WITH TH E OWNER.
  • Page 2 Printed in U.S.A. ©2001–2011 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.stewartfilmscreen.com...
  • Page 3: Table Of Contents

    Product Warranty ........13 ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 4: To The Owner

    Stewart Filmscreen product. About your ABT Trapdoor Series Electriscreen Your ABT Trapdoor Electriscreen offers the most technologically advanced trapdoor roller screen in the world. The hingeless door is powered by its own motor.
  • Page 5 Caution During installation, do not place the unit on an unstable cart, stand, table, or ladder. The unit may fall, causing injury to a child or adult and damage to the unit. ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 6: Step 1. Hanging The Case

    (audience left). Installing the unit The ABT Trapdoor Electriscreen is ready to install into the ceiling or soffit. A false ceiling is not intended to support its weight. Note: It is imperative to make sure that the case does not get compressed after the ceiling treatment is installed.
  • Page 7: Step 2. Electrical Hook-Up

    Refer to Figure 2. Replace the access panel after the electrical connections have been made. Screen Access Panel Hex Screws Figure 2: ABT Electriscreen-underside view ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 8 Installing the low-voltage 3-button switch (standard) The Stewart Filmscreen low-voltage control allows the use of low-voltage wire to connect to the supplied 3-position 24V momentary wall switch. Note: When the low-voltage 3-button switch is ordered, the control box is pre-mounted at the factory. Preparing the connection Before making the electrical connections, you need: ...
  • Page 9 1. Attach the 12V trigger wire to the jack on the J-box. 2. Connect the main AC power source to the the J-box labeled “main AC power connection.” To Projector AC Power Supply NEUTRAL-White HOT-Black GREEN-Ground Figure 4: Screen trigger interface connection ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 10: Operating The Screen

    PERATING THE CREEN First time operation The first time you operate the screen, the protective paper will fall out as the screen unrolls. Once the screen is fully displayed, make sure that no packing paper remains on the screen roll. The screen can be damaged if loose paper remains.
  • Page 11: Adjusting The Screen Extension

    If the power is on, the screen will drop incrementally as the switch is turned. Note: One complete turn of the switch will make approximately a 3/4" / 2 cm change in the screen's stop position. ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 12: Screen Care And Cleaning

    To decrease the screen extension: 1. Lower the screen until it is extended about halfway down. 2. Locate the white extension (down) limit switch located on the left side of the screen tube. Use a screwdriver to turn the switch in a clockwise direction.
  • Page 13: Troubleshooting

    Have a qualified service person readjust the case. yellow UP limit switch. See pp. 9-10 of this adjustment. Failure to correct manual. can damage motor and screen. Do not use the unit until this problem is resolved. ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 14 Problem description Probable cause Action to take Motor shuts off. Motor has Motor is designed for short Allow the motor to cool down. Complete been in use for more than operations (lowering and cooling can take an hour or more. Heat 2 minutes.
  • Page 15: Product Warranty

    Stewart Filmscreen Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied warranty pertaining to the sale in excess of the purchase price of the product sold. Printed in USA. Rev. 12/14/10 ABT Trapdoor Electriscreen: Owner’s Manual...
  • Page 16 800.762.4999 310.784.5300 Fax: 310.326.6870 • • January 2011 Printed in U.S.A. www.stewartfilmscreen.com ©2001–2011 Stewart Filmscreen Corporation...
