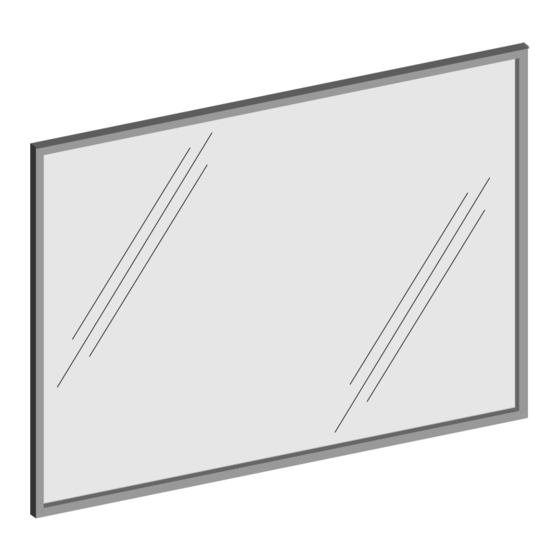

- Page 1 Rigid Rear Projection Screens Owner’s Manual • TO THE OWNER • INSTALLATION INSTRUCTIONS • MAINTENANCE RP-1013 TO THE INSTALLER : BE SURE TO LEAVE THIS MANUAL WITH TH E OWNER.
- Page 2 Printed in U.S.A. ©2004–2013 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product speci ed in this document. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.stewart lmscreen.com...
-
Page 3: Table Of Contents
Rigid Rear Projection Screens Owner’s Manual Contents To the Owner ........2 Preparing for Installation . -
Page 4: To The Owner
O THE WNER Congratulations on your purchase of the finest optical viewing screen available anywhere in the world! To create Rigid Rear Projection Screens, Stewart Filmscreen fuses advanced optical coatings to various glass and plastic substrates. This provides optimized image fidelity for any viewing environment. Please take a moment to review this manual;... - Page 5 Alternative installation Stewart Filmscreen manufactures some very large, very heavy rigid screen systems. Frequently the assistance and expertise of professional glaziers is required to safely transport and install these screen and frame systems. Take note of the scale and weight of your screen system and determine if you should contract a glazing company for assistance.
-
Page 6: Installation
NSTALLATION Professional mounting techniques should be used. Stewart Filmscreen Corporation cannot be liable for substandard or faulty installations. General notes The screen and frame are typically shipped as one complete unit. In some instances, knocked-down, pre-drilled frame components and hardware are shipped ready for assembly. -
Page 7: Frame Types
RAME YPES P1000, P1500, and P2000 The P1000 frame requires a wall opening 2 5/8” (6.668 cm) larger in both height and width than the screen image size. Figure 1. P1000 The P1500 frame requires a wall opening 3.5” (8.89 cm) larger in both height and width than the screen image. - Page 8 Deluxe frame The Deluxe frame is 3 1/4” (8.255 cm) wide, with mitered corners and a beveled edge. It can be set into a wall or cabinet. There are also free- standing or suspended (flying) systems. Figure 4. Deluxe frame Figure 6.
- Page 9 Wedge frame The wedge frame is used in video walls, simulators, and command and control centers. The wedge profile tapers down on the image side to a knife edge where it contacts the screen. Multiple wedge frames can be installed in a containment frame. Figure 7.
-
Page 10: Screen Care And Cleaning
CREEN ARE AND LEANING With reasonable care, you may expect many years of trouble-free use of your Stewart projection screen. We encourage you to keep your screen clean. Avoid getting any foreign material on the screen, as cleaning may prove very difficult. It may not be possible to remove scratches, paint, ink, etc. -
Page 11: Product Warranty
RODUCT ARRANTY LIMITED ONE (1) YEAR WARRANTY ON STEWART FILMSCREEN CORP PROJECTION SCREENS SYSTEM STEWART FILMSCREEN CORPORATION (Stewart) warrants its screens to the original purchaser only, to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser or eighteen (18) months from date of manufacture, as defined in the serial number, provided they are properly operated and maintained according to Stewart instructions and are not damaged due to... - Page 12 800.762.4999 310.784.5300 Fax: 310.326.6870 • • October 2013 Printed in U.S.A. www.stewart lmscreen.com ©2004–2013 Stewart Filmscreen Corporation...
