- Page 1 Stealth Trapdoor Electriscreen O W N E R ’ S M A N U A L To the Owner Installation Instructions Operating the Screen Maintenance SELII–1005 O T H E I N S T A L L E R E S U R E T O L E A V E T H I S M A N U A L W I T H T H E O W N E R...
- Page 2 Printed in U.S.A. ©2000 - 2005 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at www.stewartfilm.com.
-
Page 3: Table Of Contents
Replacement Parts ......13 Troubleshooting .......14 Stealth Trapdoor Electriscreen: Owner’s Manual... -
Page 4: To The Owner

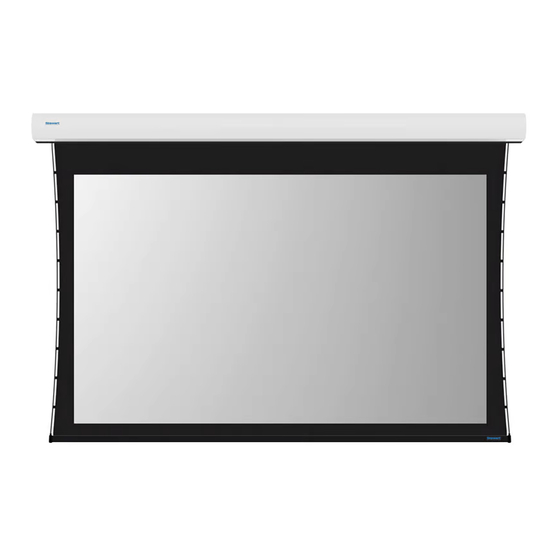

Stewart Electriscreen product. About your Stealth Trapdoor Electriscreen Your Stealth Trapdoor Electriscreen offers the most technologically advanced trapdoor roller screen in the world. The hingeless door is powered by its own motor. Sound dampers ensure quiet operation. -
Page 5: Step 1. Hanging The Case
Ceiling or top mount installation Mounting Hardware The Stealth Trapdoor Electriscreen is ready to install into the ceiling or soffit. A false ceiling is not intended to support the weight of a Stealth Trapdoor Electriscreen. - Page 6 Suspended installation 1. Suspend the unit from the holes in the end plates on the unit using "S" hooks, chains, cables, Unistrut, threaded rod, or turnbuckles. Refer to Figure 3. 2. Make sure the unit is level. Figure 3: Suspended installation Wall installation (optional) Note: When the wall installation option is ordered, wall mount brackets are provided with the screen unit.
-
Page 7: Step 2. Electrical Hook-Up
Stealth Trapdoor unit (audience left). In addition to the standard high-voltage 3-position switch, there are optional Electrical switch controls available for the Stealth Trapdoor Electriscreen. Follow the Connection installation procedure for the type of switch control you will install. General suggestions for wiring: Soldering is recommended. - Page 8 Installing the high voltage switch control (standard) A standard 3-position wall switch is supplied. The high-voltage control is connected to the electrical source. It alternates directions of screen motion by means of the hot lead, using the 3-position switch. Preparing the connection Before making the electrical connections, you need: An available AC constant power source A 4-conductor romex or motor connector cable...
- Page 9 2. Attach the 12V trigger wire to the jack in the plate. To Projector To Projector Optional 12V DC 120V AC 50/60 Hz Power Source Transformer Power Source with Switch 120V AC Power Source Figure 7: Screen trigger interface connection Stealth Trapdoor Electriscreen: Owner’s Manual...
- Page 10 Installing the low-voltage 3-button switch option The optional Stewart Filmscreen low-voltage control allows the use of low- voltage wire to connect to the supplied 3-position 24V momentary wall switch. Preparing the connection Before making the electrical connections, you need: An available AC constant power source A 4-conductor switch hook-up cable (4-conductor bell wire or category 5 cable is typically used for long runs) Cat 5, multi-conductor unshielded, or similar type electronic cable can...
- Page 11 Low Voltage Control Box 4 Conductor Hook-up Cable—20-24ga Recommended 4 Conductor Hook-up Cable - 18ga Minimum 3-Button Category 5 Typically Used (NOT Supplied) Category 5 recommended (NOT Supplied) Momentary Switch Figure 10: Infrared remote control wiring Stealth Trapdoor Electriscreen: Owner’s Manual...
- Page 12 Installing the wireless remote control option The optional Stewart Filmscreen wireless remote control allows control of the screen from anywhere in the room. Once the AC power outlet is installed near the screen, an electrician is not needed to connect the wireless remote receiver module to the power source. Note: The distance between the hand-held remote control and the receiver can be up to 50 feet / 15 m.
-
Page 13: Operating The Screen
The unit emits any smoke, heat, abnormal noise or unusual odor. The unit is damaged in some way, such as damage from a water leak. If any of these situations occur, call a qualified service person. Stealth Trapdoor Electriscreen: Owner’s Manual... -
Page 14: Adjusting The Screen
DJUSTING THE CREEN XTENSION Caution Improper adjustment of the limit switches can cause irreparable damage to the screen itself, resulting in voiding the factory warranty. The extension and retraction limit switches have been preset at the factory. In general, we advise you to avoid readjusting these switches. In some cases, to enable proper alignment of the displayed image on the screen, you may need to adjust the extension of the screen. -
Page 15: Screen Care And Cleaning
Do not use any other cleaning materials on the screen. Contact the factory if you have questions about removing difficult spots. Replacement parts and service No user-serviceable parts are contained within the unit. Contact your dealer or the factory if you require part replacement or service. Stealth Trapdoor Electriscreen: Owner’s Manual... -
Page 16: Troubleshooting
ROUBLESHOOTING Refer to the following guidelines if you encounter a difficulty in the operation of your Stewart Electriscreen. Problems related to electrical or motor function may require a qualified service person or electrician. Should you have a problem that is not addressed here, call the Stewart Filmscreen Corporation. - Page 17 Brush off or use a mild deter gent screen surface. solution with clean rag or cotton swab. Indentations appear on screen Debris or particles adhering to Check back of screen; gently surface. screen due to static cling. brush debris away by hand. Stealth Trapdoor Electriscreen: Owner’s Manual...
- Page 18 A factory authorized returned screen arriving prepaid to our facility for inspection and proved defective due to an inherent manufacturing fault will be repaired or replaced by Stewart Filmscreen Corp. This warranty expressly does not cover any costs of removal, installation, framing, or other incidental costs to replacing the screen or returning it to the manufacturer.
- Page 19 AINTENANCE OTES...
- Page 20 www.stewartfilm.com 1-800-762-4999 Fax (310) 326-6870...
