Summary of Contents for Stewart Filmscreen Corp Fixed Frame Screen

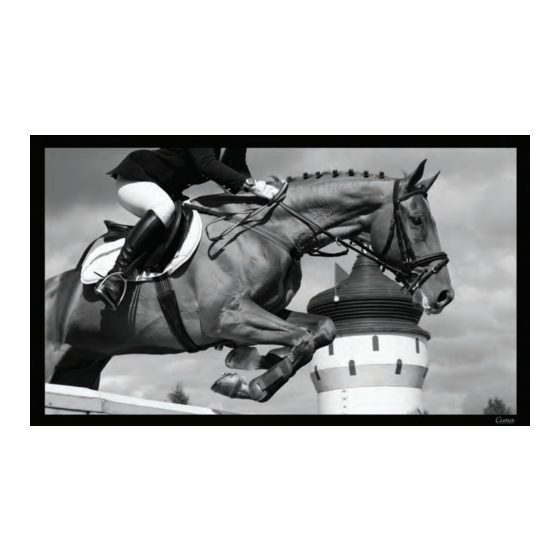

- Page 1 Fixed Frame Screen Owner’s Manual To the Owner Installation Instructions Screen Care Maintenance CFS-010517 TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
- Page 2 Printed in U.S.A. © 2017 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at Manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.stewartfilmscreen.com...
-
Page 3: Table Of Contents
Fixed Frame Screen Owner’s Manual Contents To the Owner ....... 4 Preparing the Installation . -
Page 4: To The Owner
The frame features snaps that move on the frame to allow for adjustments. The standard mount is a wall mount. Using This Manual For Installation The Cima Fixed Frame Screen is designed for ease of installation. There are no user-servicable parts contained within the unit. © 2017 Stewart Filmscreen Corporation... -
Page 5: Preparing The Installation
Do not stand on the screen tube or store it on its end. This will cause screen damage. If you are not going to install the screen immediately, make sure it remains horizontal during storage. © 2017 Stewart Filmscreen Corporation Cima Fixed Frame Screen: Owner’s Manual... -
Page 6: Assembling The Frame
ASSEMBLING THE FRAME Be sure to work in a clean area that will not damage the frame. 1. Connect the frame members by matching the labels on the ends of each member. See Figure 1. 2. Secure frame sections with the supplied bolts and allen wrench. Figure 1: Frame Rear View ©... -
Page 7: Mounting The Frame
11. Remove the frame and follow the steps for attaching the screen to the frame (see pages 9-10). 12. Your Fixed Frame is now ready to hang in its final position. See figures 2-5 on page 8. © 2017 Stewart Filmscreen Corporation Cima Fixed Frame Screen: Owner’s Manual... -
Page 8: Mounting The Frame
MOUNTING THE FRAME (CONTINUED) HANGING BAR FRAME SCREEN Figure 2: Hanging Bar Front View Figure 3: Wall Mount Rear View HANGING BAR HANGING PUCK PUCK Figure 4: Components for Wall Mounting - Side View Figure 5: Hanging the Screen - Side View ©... -
Page 9: Attaching The Screen To The Frame
1. Remove the screen from the cardboard shipping tube. 2. On a clean surface, unroll the screen viewing side up. 3. Remove the protective foam from the screen material. Figure 6: Unrolling the Screen © 2017 Stewart Filmscreen Corporation Cima Fixed Frame Screen: Owner’s Manual... - Page 10 ATTACHING THE SCREEN TO THE FRAME (CONTINUED) Attaching the Screen to the Frame 4. Place the frame over the screen (snap side down). 5. Starting with the snaps on the top corners and then horizontally along the top, while lifting the frame with one hand, snap the screen into the frame.
-
Page 11: Caring For & Cleaning The Screen
A brush may be used to comb (lift) the nap of the VeLux material to help eliminate depression marks. Replacement Parts & Service No user-serviceable parts are contained within the unit. Contact your dealer or the factory if you require part replacement or service. © 2017 Stewart Filmscreen Corporation Cima Fixed Frame Screen: Owner’s Manual... -
Page 12: Maintenance Notes
AINTENANCE OTES © 2017 Stewart Filmscreen Corporation... - Page 13 © 2017 Stewart Filmscreen Corporation Cima Fixed Frame Screen: Owner’s Manual...
-
Page 14: Product Warranty
Cima by Stewart Filmscreen product in excess of the purchase price of the product sold. resolution Cima Fixed Frame Screen: Owner’s Manual © 2017 Stewart Filmscreen Corporation... - Page 16 www.stewartfilmscreen.com 1-800-762-4999 ♦ Fax (310) 326-6870 15336...
