P-47 Thunderbolt
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-47 Thunderbolt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Horizon Hobby P-47 Thunderbolt

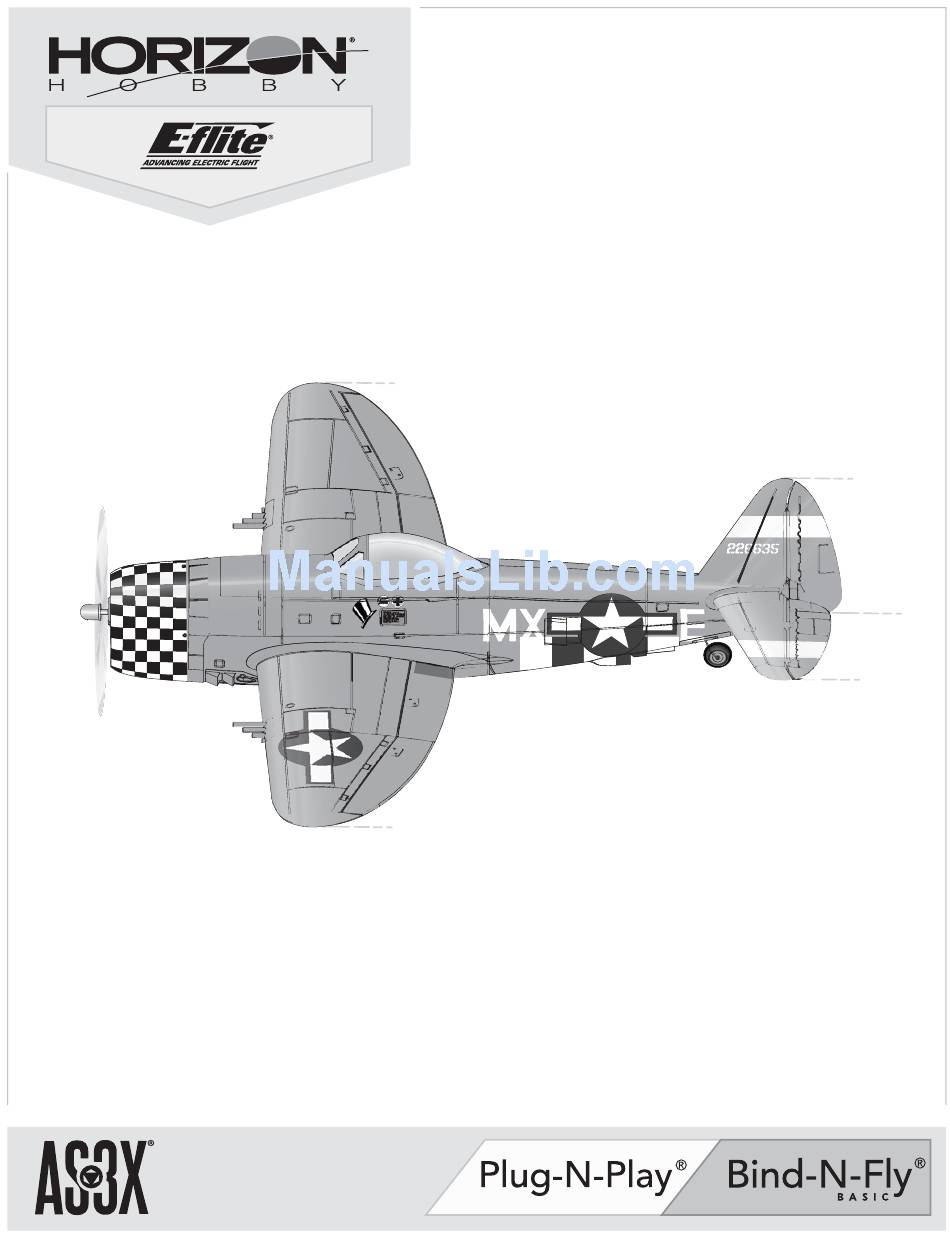

  • Page 1 P-47 Thunderbolt Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
  • Page 2: Safety Precautions And Warnings

    Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn- ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate =11mm =07mm =11mm =07mm =12mm =8mm Dual Rates =12mm =8mm =20mm =15mm =20mm =15mm Full Takeoff Flaps =25mm =15mm Center of 60mm back from leading edge at the root.
  • Page 4: Prefl Ight

    Prefl ight Remove and inspect contents. 10 Test the retract operation. Read this instruction manual thoroughly. 11 Test the fl ap operation. Charge the fl ight battery. 12 Perform the Control Direction Test with the transmitter. Setup Transmitter using transmitter setup chart. 13 Perform the AS3X Control Direction Test with the aircraft.
  • Page 5: Propeller Installation

    Model Assembly Propeller Installation IMPORTANT: It is recommended to install the propeller after all system setups are completed to reduce the chance of accidental propeller strike. 1. Use a tool to remove the spinner (A) from the collet (B). 2. Install the propeller with the size numbers (9.8 x 6) facing out from the motor.
  • Page 6: Wing Installation

    Model Assembly Continued Wing Installation 1. Remove the canopy hatch. 2. Guide the Flaps, Retracts and Aileron servo connectors (A) through the hole (B) located in the bottom of the fuselage as shown. Tip: If needed, use hemostats or pliers to pull the servo connectors into the fuselage.
  • Page 7: Model Assembly Continued

    Model Assembly Continued Optional Belly Skid Installation Attach the clear plastic belly skid to the bottom of the fuselage using double- sided tape as shown. The belly skid is recommended if fl ying without landing gear. Control Horn and Servo Arm Settings The table to the right shows the factory settings for the control horns and servo Horns Arms...
  • Page 8: Pnp Receiver Selection And Installation

    PNP Receiver Selection and Installation The Spektrum AR636 receiver is recommended for ths airplane. If you choose to install another receiver, ensure that it is at least a 6-channel full range (sport) receiver. Refer to your receiver manual for correct installation and operation instructions.
  • Page 9: Battery Installation And Esc Arming

    Battery Installation and ESC Arming Battery Selection We recommend the E-fl ite ® 2200mAh 11.1V 3S 30C Li-Po battery (EFLB22003S30). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-fl...
  • Page 10: Center Of Gravity (Cg)

    Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB22003S30) installed all the way forward in the battery compartment. 60mm back from lead- ing edge at...
  • Page 11: Flying Tips And Repairs

    Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. Keep the throttle on until the aircraft is ready to fl are. During fl are, keep the wings level and the aircraft pointed into the wind. Gently lower the throttle Range Check your Radio System while pulling back on the elevator to bring the aircraft down on the front wheels (two point landing).
  • Page 12: Post Flight

    Post Flight Disconnect the fl ight battery from the ESC (Required for Safety Repair or replace all damaged parts. and battery life). Store the fl ight battery apart from the aircraft and monitor the Power OFF the transmitter. battery charge. Remove the fl...
  • Page 13: Troubleshooting Guide

    Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed...
  • Page 14: Ama National Model Aircraft Safety Code

    AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition.
  • Page 15: Limited Warranty

    Product, (iv) attempted service by Be sure your name, address, and RMA number are clearly written on the anyone other than a Horizon Hobby authorized service center, (v) Product not outside of the shipping carton.
  • Page 16: Contact Information

    Compliance Information for the European Union EFL P-47 Thunderbolt BNF Basic (EFL6850) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provi- sions of the R&TTE and EMC Directive.
  • Page 17: Replacement Parts

    Informazioni sulla conformità per l’Unione Europea EFL P-47 Thunderbolt BNF Basic (EFL6850) EU Compliance Statement: Dichiarazione di Conformità EU: Horizon Hobby, LLC con la presente dichiara che il prodotto è conforme ai requisiti essenziali e ad altre disposizioni rilevanti del R&TTE direttiva EMC.
  • Page 18: Optional Parts

    Protection de fuselage transparente : PKZ5319 Clear Plastic Belly Skid: P-47 Parkzone Rumpfschutz : P-47 Pattino trasparente in plastica: P-47 P-47 Thunderbolt EC3 Connettore femmina x EFLAEC302 EC3 Battery Connector, Female (2) EC3 Akkukabel, Buchse (2) Prise EC3 femelle (2pc)
  • Page 19 © 2015 Horizon Hobby, LLC. E-fl ite, AS3X, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, Plug-N-Play, Z-Foam, ModelMatch, EC3, Celectra, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
