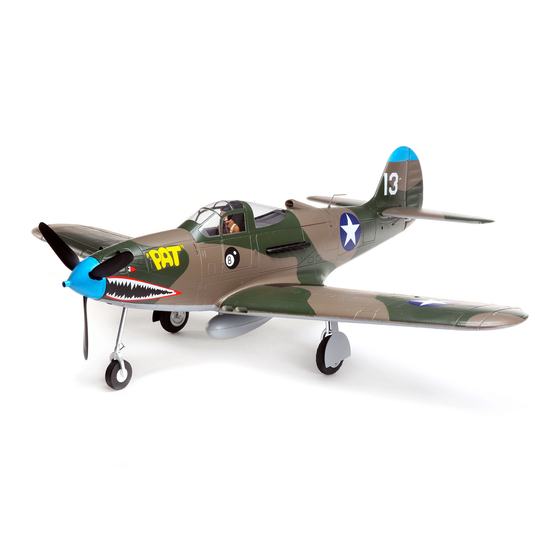

Horizon Hobby E-flite P-39 Airacobra 1.2m Instruction Manual

Horizon Hobby E-flite P-39 Airacobra 1.2m Instruction Manual

Advertisement

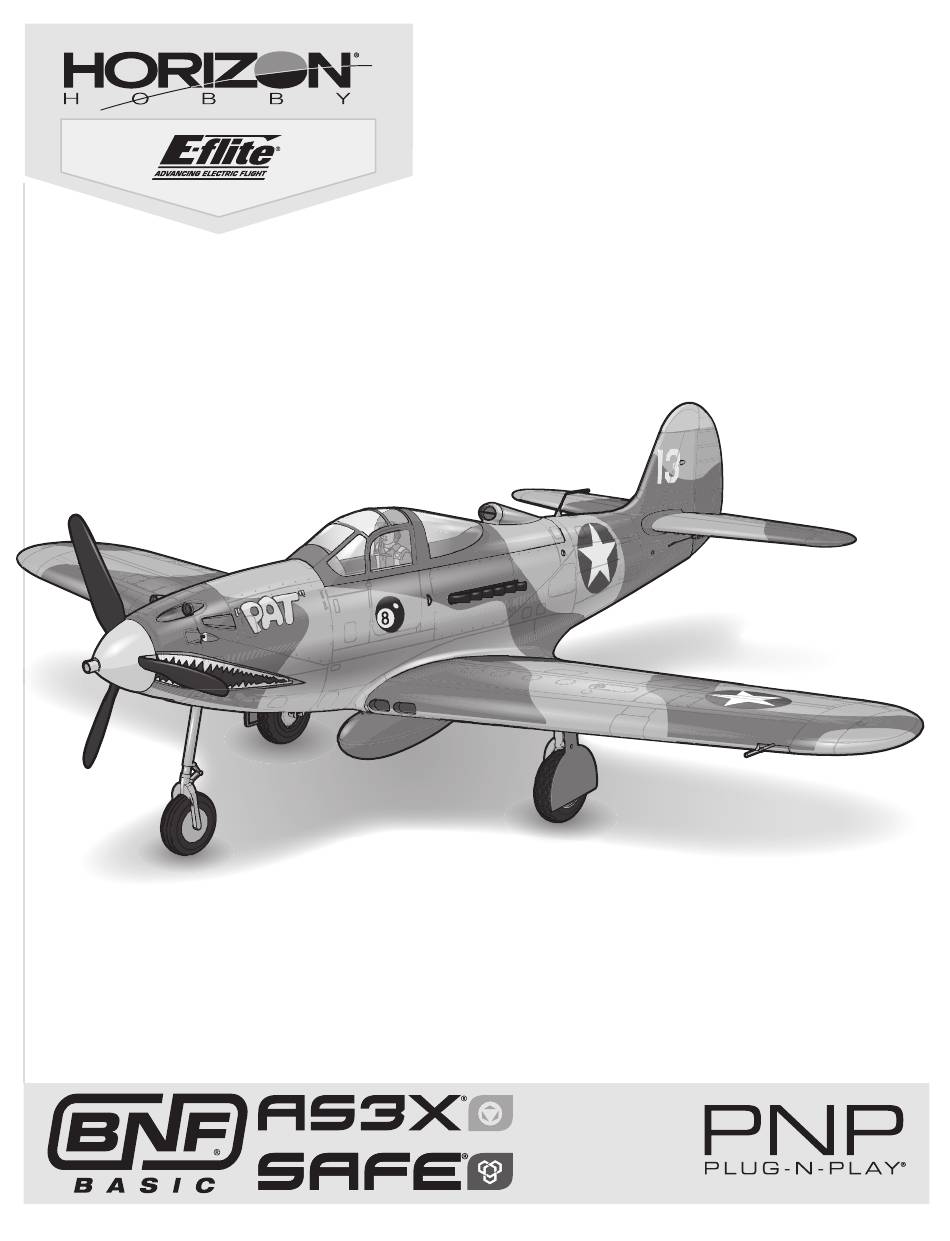

P-39 Airacobra 1.2m
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
NOTE: Actual model trim scheme may vary
EFL9150
EFL9175

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-flite P-39 Airacobra 1.2m and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby E-flite P-39 Airacobra 1.2m

  • Page 1 P-39 Airacobra 1.2m Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni NOTE: Actual model trim scheme may vary EFL9150 EFL9175...
  • Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate 14mm +/– 9mm +/– Dual Rates 15mm +/– 10mm +/– 20mm +/– 12mm +/– Flaps 50mm (full) 35mm (mid) Center of 50mm - 44mm from leading edge with gear down Gravity (CG)
  • Page 4: Prefl Ight

    Prefl ight Remove and inspect contents. 10 Test the retract operation. Read this instruction manual thoroughly. 11 Test the fl ap operation. Charge the fl ight battery. 12 Perform the Control Direction Test with the transmitter. Setup Transmitter using transmitter setup chart. 13 Perform the AS3X Control Direction Test with the aircraft.
  • Page 5: Model Assembly

    Model Assembly Horizontal Tail Installation 1. Slide the horizontal tail tube (A) into the hole in the rear of the fuselage. 2. Install the 2 piece (left and right) horizontal tail as shown. Ensure the control horn faces down. 3. Secure the two horizontal tail pieces in place using the 2 included screws (B). 4.
  • Page 6: Model Assembly Continued

    Model Assembly Continued Wing Installation 1. Align the hands free servo connector and press wing into wing saddle. 2. Secure wing into position using the included 4 screws (B).. Disassemble in reverse order. Clevis Installation • Pull the tube from the clevis to the linkage. •...
  • Page 7: Model Assembly Continued

    Model Assembly Continued Propeller Installation IMPORTANT: It is recommended to install the propeller after all system setups are completed to reduce the chance of accidental propeller strike. 1. Install the spinner back plate (E), propeller (D) and collet (C) onto the motor shaft (F).
  • Page 8: Pitot Tube Installation

    Pitot Tube Installation Slide the pitot tube (A) into the slot (B) on front edge of the left wing. Battery Installation and ESC Arming Battery Selection We recommend the E-fl ite ® 2200mAh 11.1V 3S 30C Li-Po battery (EFLB22003S30) or 2200mAh 4S 14.8V 30C LiPo battery (EFLB22004S30). Refer to the Optional Parts List for other recommended batteries.
  • Page 9: Transmitter And Receiver Binding-Switching On/Off Safe

    ® Transmitter and Receiver Binding / Switching ON and OFF SAFE Select Switching ON SAFE Select Binding Sequence This product requires an approved Spektrum™ DSM2 ® /DSMX ® compatible transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specifi...
  • Page 10: Select Switch Designation

    SAFE ® Select Switch Designation ® SAFE Select technology can be easily assigned to any open switch (two or Mode 1 and 2 Transmitters three position) on the transmitter. With this new feature, you now have the fl exibility to enable or disable the technology while in fl ight. IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100% in both direction.
  • Page 11: Center Of Gravity (Cg)

    Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB22003S30) installed to the front edge of the battery tray. 50mm - 44mm back from leading edge at Tip: Measure the CG with the aircraft inverted.
  • Page 12: Post Flight

    Post Flight Disconnect the fl ight battery from the ESC (Required for Safety Repair or replace all damaged parts. and battery life). Store the fl ight battery apart from the aircraft and monitor the Power OFF the transmitter. battery charge. Make note of the fl...
  • Page 13: Troubleshooting Guide

    Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to Throttle channel is reversed...
  • Page 14: Ama National Model Aircraft Safety Code

    AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition.
  • Page 15: Limited Warranty

    Limited Warranty What this Warranty Covers – Horizon Hobby, LLC, (Horizon) warrants to the original our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the purchaser that the product purchased (the “Product”) will be free from defects in toll free telephone number referenced in the Warranty and Service Contact Information materials and workmanship at the date of purchase.
  • Page 16: Contact Information

    Compliance Information for the European Union EU Compliance Statement: EFL9175: Horizon Hobby, LLC  hereby declares that this product is in compliance EFL9150: Horizon Hobby, LLC  hereby declares that this product is in with the essential requirements and other relevant provisions of the EMC compliance with the essential requirements and other relevant provisions of the Directive.
  • Page 17: Replacement Parts

    Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL9101 Fuselage w/Hatch: P-39 1.2m Rumpf mit Luke Fuselage avec trappe Fusoliera con tratteggio EFL9102 Painted Wing: P-39 1.2m Flügel gemalt Aile peinte Ala dipinta...
  • Page 18 E-fl ite, AS3X, DSM, DSM2, DSMX, Bind-N-Fly, the BNF logo, SAFE, the SAFE logo, Plug-N-Play and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
