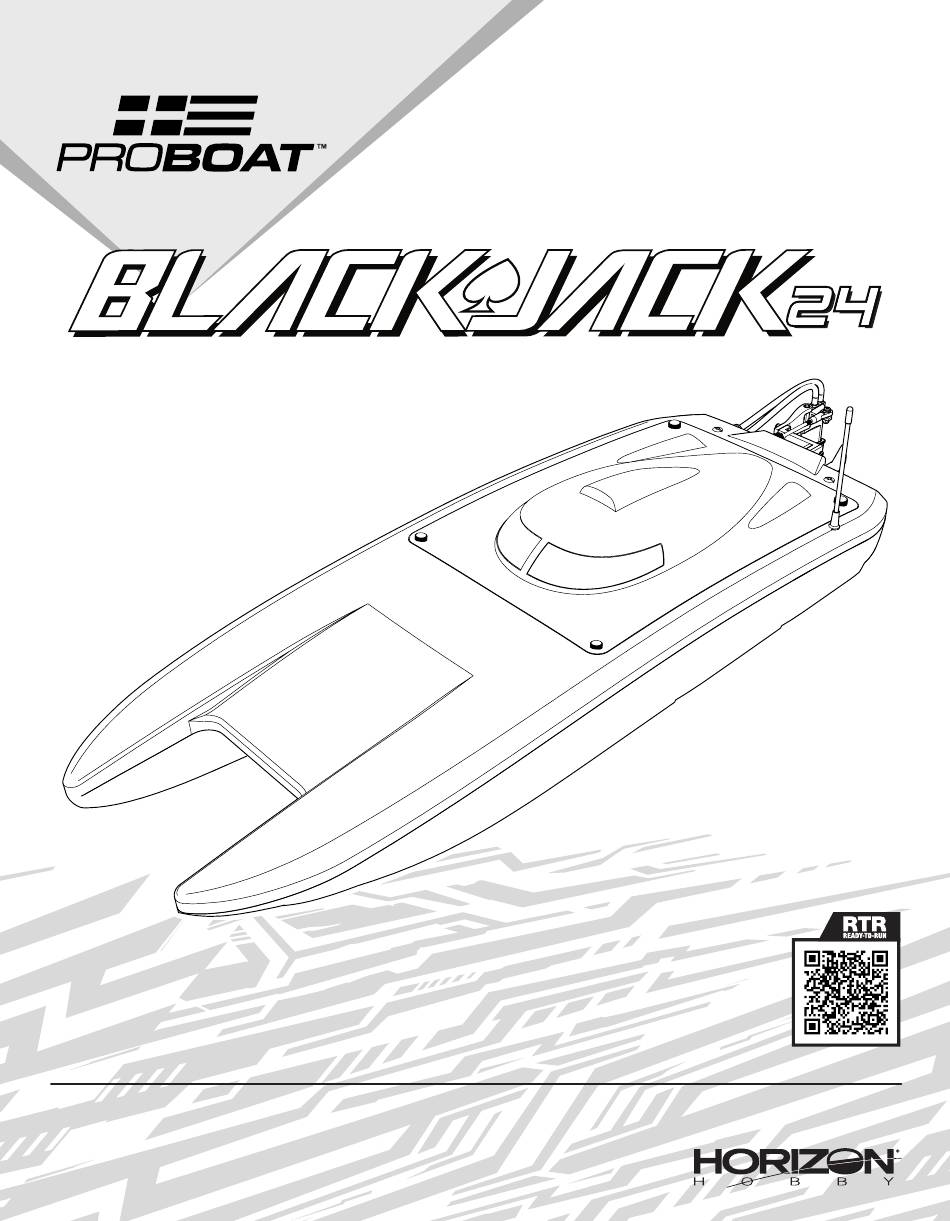

24" V2 BRUSHLESS CATAMARAN
Scan the QR code and select the Manuals and Support quick links from the
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
product page for the most up-to-date manual information.
PRB08049
Advertisement
Table of Contents
Related Manuals for Horizon Hobby PROBOAT BLACKJACK 24 V2
Summary of Contents for Horizon Hobby PROBOAT BLACKJACK 24 V2
- Page 1 24″ V2 BRUSHLESS CATAMARAN Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page du produit pour obtenir les informations les plus récentes sur le manuel.
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE...
- Page 3 • Always charge in a well-ventilated area. • Never attempt to charge dead, damaged or wet battery packs. • Always terminate all processes and contact Horizon Hobby if the • Never attempt to charge a battery pack containing different types of product malfunctions.
-
Page 4: Table Of Contents
Box Contents • Pro Boat ® Blackjack 24″ V2 Catamaran Brushless, Heatwave: RTR (PRB08049T1) / Pro Boat ® Blackjack 24″ V2 Catamaran Brushless, Vegas Offshore: RTR (PRB08049T2) • SLR300 3-Channel SLT Receiver Single Protocol (SPMSLR300) • Firma 90 Amp Smart Brushless Marine ESC (SPMXME1060) •... -
Page 5: Slt2 Transmitter
SLT2 Transmitter 1. Steering Wheel Controls direction (left/right) of the model 2. Throttle Trigger Controls speed and direction (forward/brake/reverse) of the model 3. Power Button Turns the power ON/OFF 4. Steering (ST-R) Servo Reversing Reverses the steering channel 5. Throttle Limit Limits throttle output to 50/75/100% Select 50% or 75% for less experienced drivers or when you are driving the vehicle in a small area 6. -
Page 6: Antenna Tube Installation
Antenna Tube Installation Install the receiver antenna in the tube as shown. Keep the end of the antenna above the boat’s waterline to get the best transmitter reception. Apply clear tape (DYNM0102), if desired. NOTICE: Do not cut or kink the receiver antenna or damage may result. -
Page 7: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) The factory default setting for the LVC in the ESC included with your The average run time using the recommended batteries boat is set at 3.2V per cell. Discharging a Li-Po battery below 3V per (SPMX52S100H5) is approximately 5–7 minutes, depending on throttle cell may damage your battery. -
Page 8: When You Are Finished
When You Are Finished NOTICE: When you are finished boating, never leave the boat in direct sunlight or in a hot, enclosed area such as a car. Doing so can damage the boat. 1. Power OFF the receiver by pressing the ESC power button. 2. - Page 9 Water Cooling System If water does not stream out of the water outlets while the boat is 1. Disassemble and clean the water cooling system to remove block- moving forward, immediately stop the boat and clean the obstruction age and prevent overheating. from the water cooling system.
- Page 10 Propeller Angle Adjustment Raising the drive strut increases speed, but also decreases steering response and increases cavitation. Lowering the drive strut increases steering response, but also increases steering sensitivity and decreases speed. 1. Loosen the nut and bolt from the drive strut on the rear of the boat.
-
Page 11: Replacement Parts
Replacement Parts Optional Parts Part # Description Part # Description PRB-1153 Cooling Line 4mm ID, 3ft DYNE4200 Grease Gun with Marine Grease, 5 oz PRB-1273 Rudder Assembly: Blackjack 24 DYNE4201 Marine Grease 5oz PRB-1274 Rudder Pushrod Set: Blackjack 24 DYNE0100 Precision Oiler: Medium PRB-1275 Prop Strut Set: Blackjack 24... -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds to other Throttle channel is reversed Reverse throttle channel on transmitter controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 13: 2-Year Limited Warranty
Product, (iv) attempted service by anyone Merchandise Authorization (RMA) number. Pack the Product other than a Horizon Hobby authorized service center, (v) Product securely using a shipping carton. Please note that original boxes... -
Page 14: Warranty And Service Contact Information
Pro Boat Blackjack 24″ V2 Brushless Catamaran, RTR Horizon Hobby, LLC (PRB08049): 2904 Research Road Hereby, Horizon Hobby, LLC declares that the device is in compliance Champaign, IL 61822 USA with the following: Radio Equipment Directive (RED) 2014/53/EU, EU Importer of Record:... - Page 15 ©2024 Horizon Hobby, LLC. Pro Boat, SLT3, IC5, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks or registered trademarks are property of their respective owners.
