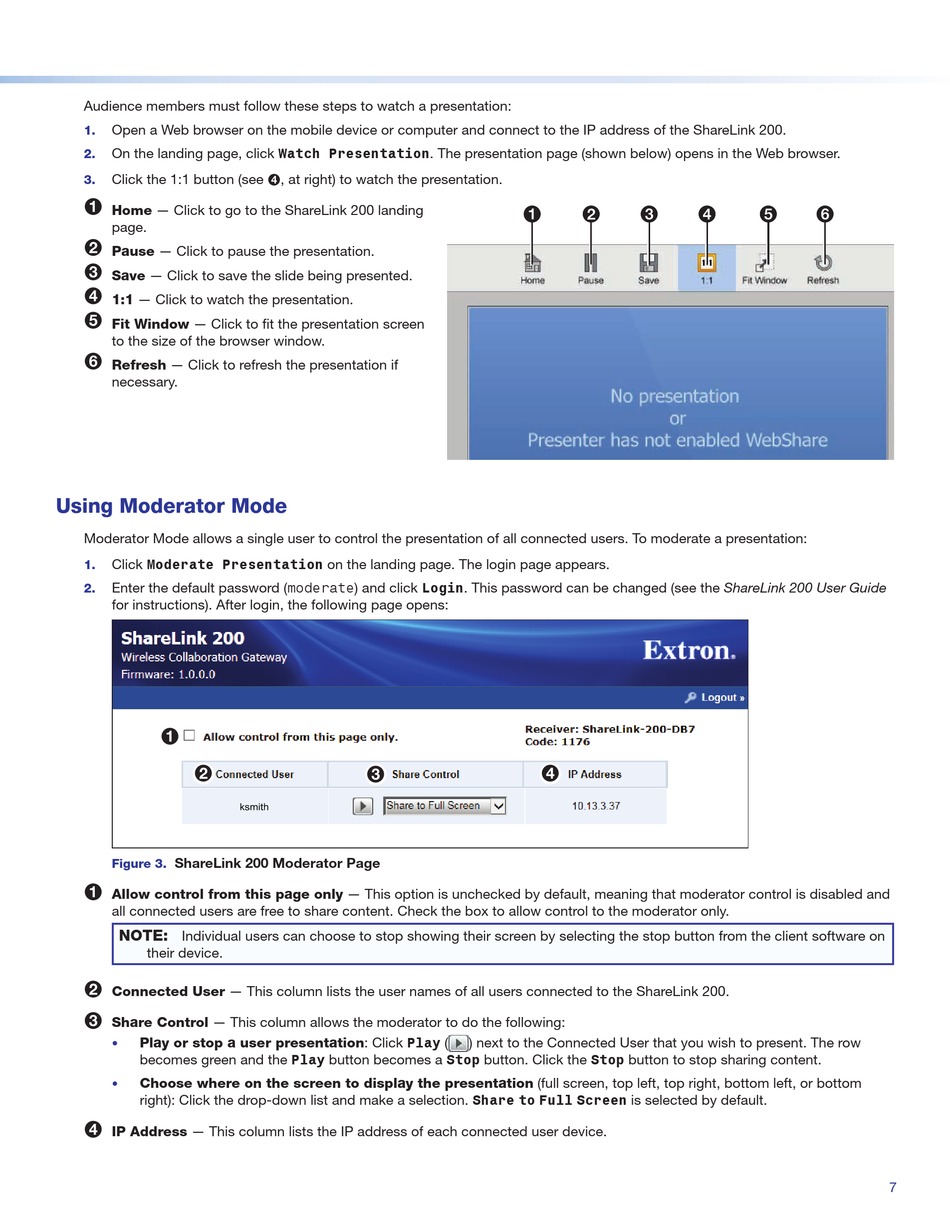

Extron electronics ShareLink 200 Setup Manual page 7

Audience members must follow these steps to watch a presentation:
Open a Web browser on the mobile device or computer and connect to the IP address of the ShareLink 200.
1.
On the landing page, click Watch Presentation. The presentation page (shown below) opens in the Web browser.
2.
Click the 1:1 button (see 4 , at right) to watch the presentation.
3.
1
Home — Click to go to the ShareLink 200 landing
page.
2
Pause — Click to pause the presentation.
3
Save — Click to save the slide being presented.
4
1:1 — Click to watch the presentation.
5
Fit Window — Click to fit the presentation screen
to the size of the browser window.
6
Refresh — Click to refresh the presentation if
necessary.
Using Moderator Mode
Moderator Mode allows a single user to control the presentation of all connected users. To moderate a presentation:
Click Moderate Presentation on the landing page. The login page appears.
1.
Enter the default password (moderate) and click Login. This password can be changed (see the ShareLink 200 User Guide
2.
for instructions). After login, the following page opens:
1 1
2 2
ShareLink 200 Moderator Page
Figure 3.
1
Allow control from this page only — This option is unchecked by default, meaning that moderator control is disabled and
all connected users are free to share content. Check the box to allow control to the moderator only.
NOTE:
Individual users can choose to stop showing their screen by selecting the stop button from the client software on
their device.
2
Connected User — This column lists the user names of all users connected to the ShareLink 200.
3
Share Control — This column allows the moderator to do the following:
Play or stop a user presentation: Click Play (
•
becomes green and the Play button becomes a Stop button. Click the Stop button to stop sharing content.
Choose where on the screen to display the presentation (full screen, top left, top right, bottom left, or bottom
•
right): Click the drop-down list and make a selection. Share to Full Screen is selected by default.
4
IP Address — This column lists the IP address of each connected user device.
1 1
4 4
3 3
) next to the Connected User that you wish to present. The row
2 2 4 4 5 5
3 3
6 6
