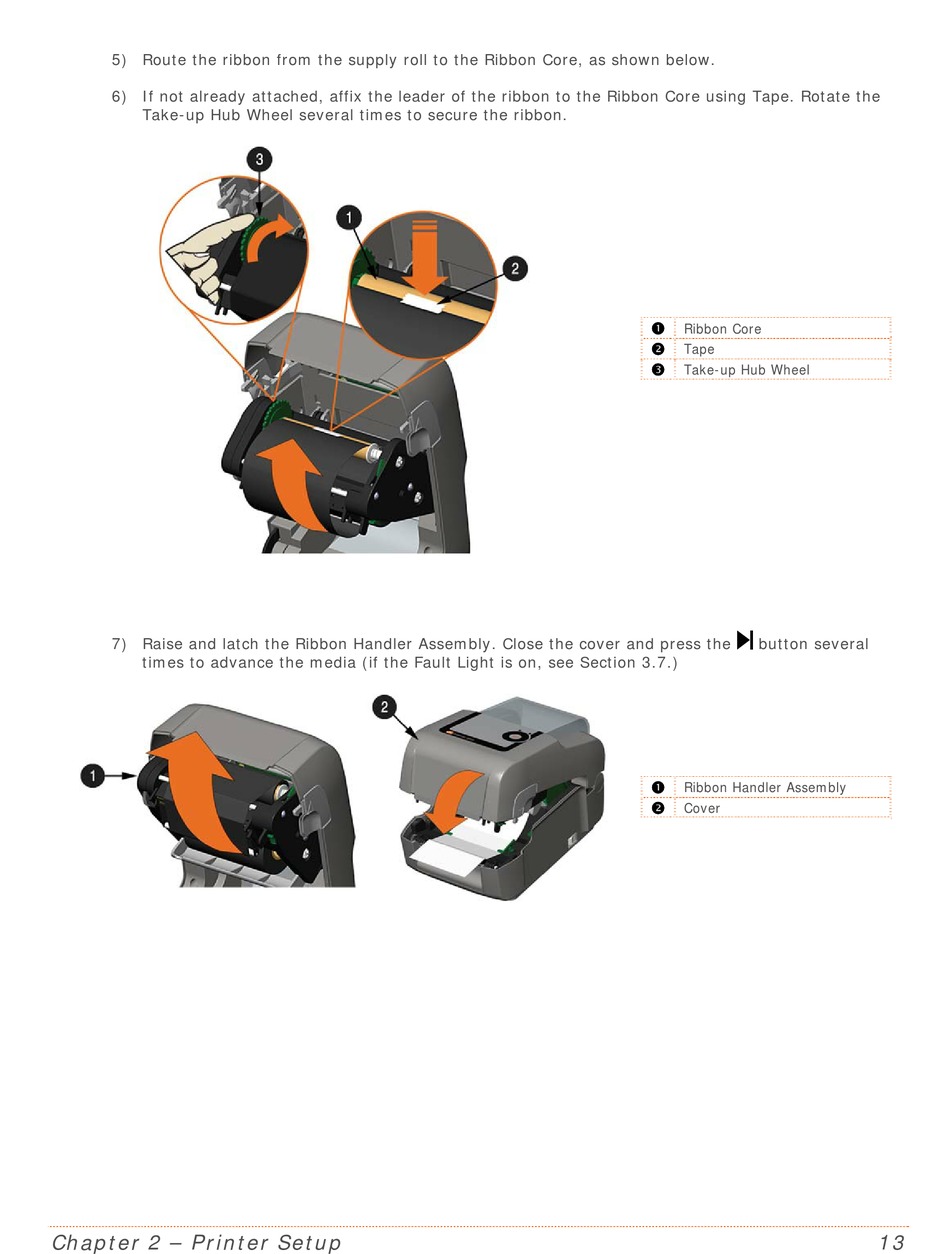

5) Route the ribbon from the supply roll to the Ribbon Core, as shown below.

6) If not already attached, affix the leader of the ribbon to the Ribbon Core using Tape. Rotate the

Take-up Hub Wheel several times to secure the ribbon.

7) Raise and latch the Ribbon Handler Assembly. Close the cover and press the

times to advance the media (if the Fault Light is on, see Section 3.7.)

Chapter 2 – Printer Setup

312



Ribbon Core



Tape



Take-up Hub Wheel

button several



Ribbon Handler Assembly



Cover
