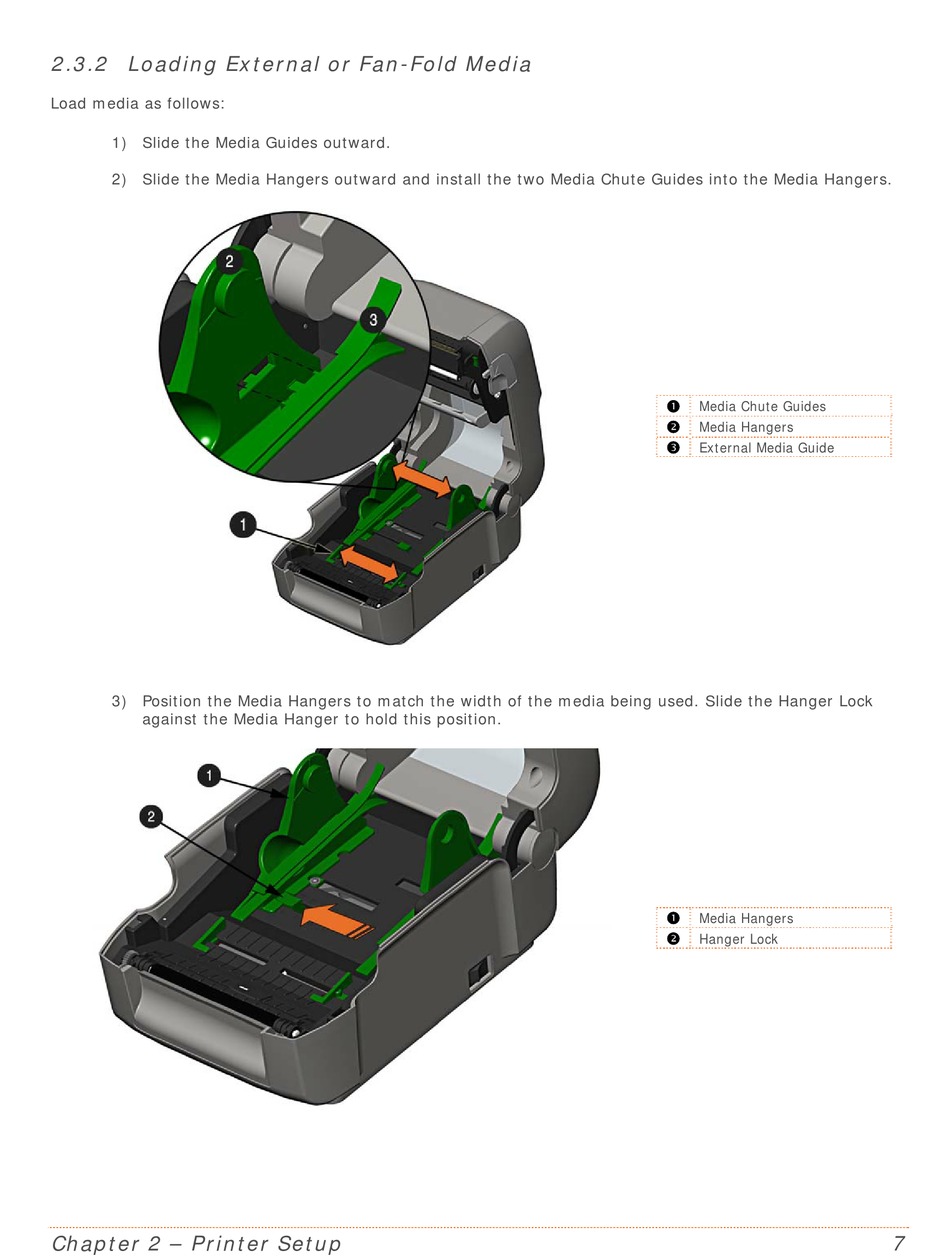

2.3.2 Loading External or Fan-Fold Media
Load media as follows:
1) Slide the Media Guides outward.
2) Slide the Media Hangers outward and install the two Media Chute Guides into the Media Hangers.
3) Position the Media Hangers to match the width of the media being used. Slide the Hanger Lock
against the Media Hanger to hold this position.
Chapter 2 – Printer Setup
Media Chute Guides
Media Hangers
External Media Guide
Media Hangers
Hanger Lock
7
