User Manual of Network Video Recorder

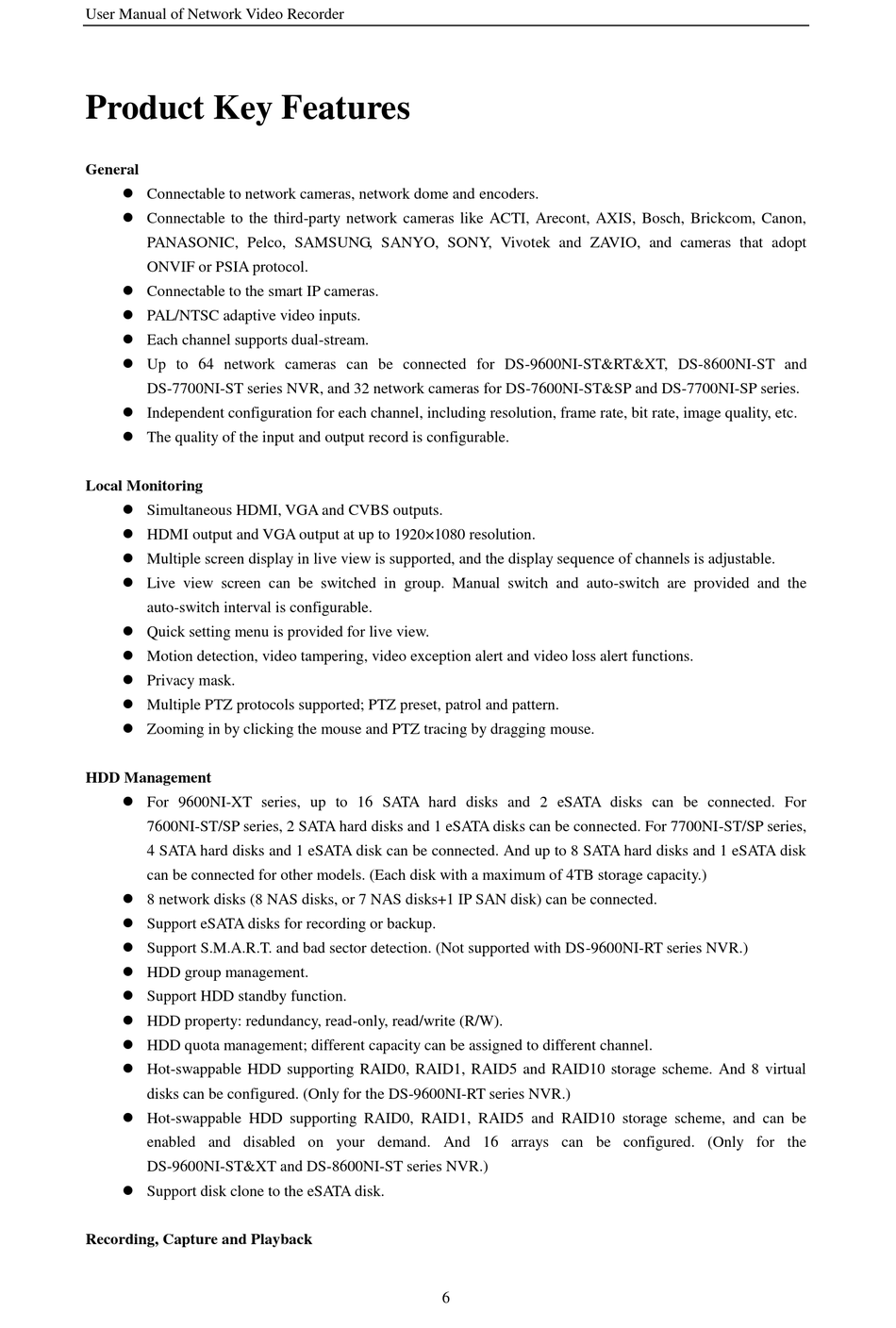

Product Key Features

General
 Connectable to network cameras, network dome and encoders.
 Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon,
PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO, and cameras that adopt
ONVIF or PSIA protocol.
 Connectable to the smart IP cameras.
 PAL/NTSC adaptive video inputs.
 Each channel supports dual-stream.
 Up to 64 network cameras can be connected for DS-9600NI-ST&RT&XT, DS-8600NI-ST and
DS-7700NI-ST series NVR, and 32 network cameras for DS-7600NI-ST&SP and DS-7700NI-SP series.
 Independent configuration for each channel, including resolution, frame rate, bit rate, image quality, etc.
 The quality of the input and output record is configurable.
Local Monitoring
 Simultaneous HDMI, VGA and CVBS outputs.
 HDMI output and VGA output at up to 1920× 1080 resolution.
 Multiple screen display in live view is supported, and the display sequence of channels is adjustable.
 Live view screen can be switched in group. Manual switch and auto-switch are provided and the
auto-switch interval is configurable.
 Quick setting menu is provided for live view.
 Motion detection, video tampering, video exception alert and video loss alert functions.
 Privacy mask.
 Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
 Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
 For 9600NI-XT series, up to 16 SATA hard disks and 2 eSATA disks can be connected. For
7600NI-ST/SP series, 2 SATA hard disks and 1 eSATA disks can be connected. For 7700NI-ST/SP series,
4 SATA hard disks and 1 eSATA disk can be connected. And up to 8 SATA hard disks and 1 eSATA disk
can be connected for other models. (Each disk with a maximum of 4TB storage capacity.)
 8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
 Support eSATA disks for recording or backup.
 Support S.M.A.R.T. and bad sector detection. (Not supported with DS-9600NI-RT series NVR.)
 HDD group management.
 Support HDD standby function.
 HDD property: redundancy, read-only, read/write (R/W).
 HDD quota management; different capacity can be assigned to different channel.
 Hot-swappable HDD supporting RAID0, RAID1, RAID5 and RAID10 storage scheme. And 8 virtual
disks can be configured. (Only for the DS-9600NI-RT series NVR.)
 Hot-swappable HDD supporting RAID0, RAID1, RAID5 and RAID10 storage scheme, and can be
enabled and disabled on your demand. And 16 arrays can be configured. (Only for the
DS-9600NI-ST&XT and DS-8600NI-ST series NVR.)
 Support disk clone to the eSATA disk.
Recording, Capture and Playback
