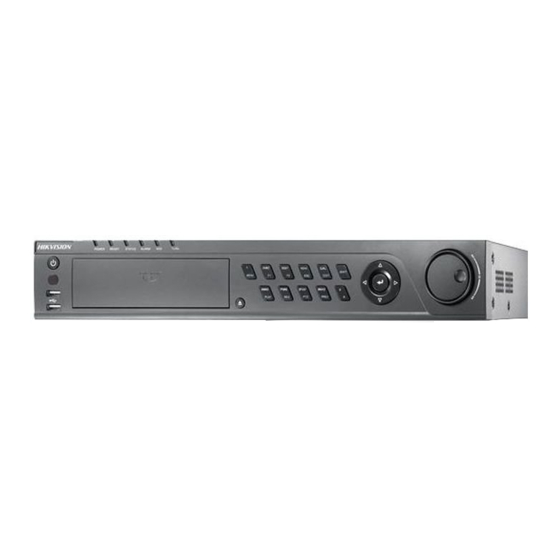

HIKVISION Digital Video Recorder User Manual

Ds-7200/7300/8100-sh series dvr
Hide thumbs Also See for Digital Video Recorder:
Table of Contents

Advertisement

Quick Links

Digital Video Recorder

User Manual

UD.6L0202D1360A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digital Video Recorder and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION Digital Video Recorder

Summary of Contents for HIKVISION Digital Video Recorder

  • Page 1: Digital Video Recorder

    Digital Video Recorder User Manual UD.6L0202D1360A01...
  • Page 2 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.
  • Page 3 User Manual of DS-7200/7300/8100-SH Series DVR Regulatory information FCC information compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 User Manual of DS-7200/7300/8100-SH Series DVR Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the following models: Type Model DS-7204HFI-SH, DS-7208HFI-SH, DS-7216HFI-SH DS-7204HWI-SH, DS-7208HWI-SH, DS-7216HWI-SH DS-7204HVI-SV, DS-7208HVI-SV, DS-7216HVI-SV Network HDVR DS-7208HWI-SL, DS-7216HWI-SL...

  • Page 5: Preventive And Cautionary Tips

    User Manual of DS-7200/7300/8100-SH Series DVR Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. •...

  • Page 6: Product Key Features

    User Manual of DS-7200/7300/8100-SH Series DVR Product Key Features General  Connectable to the network cameras and network domes (this feature is supported by HDVR series).  PAL/NTSC adaptive video inputs.  H.264 video compression with high reliability and superior definition. ...
  • Page 7 User Manual of DS-7200/7300/8100-SH Series DVR Recording and Playback  Holiday recording schedule configuration.  Normal and event video encoding parameters.  Multiple recording types: manual, normal, motion, alarm, motion/alarm and motion & alarm. Note: The alarm, motion/alarm and motion & alarm recording types are provided for DS-7224/7232-SH, DS-7300-SH, DS-8100-SH and HDVR models only.
  • Page 8 User Manual of DS-7200/7300/8100-SH Series DVR Network Functions  1 self-adaptive 10M/100M network interface for DS-7204/7208/7216-SH/SV/SL, and 1 self-adaptive 10M/100M/1000M network interface for DS-7224/7232-SH, and DS-7300-SH, and 2 self-adaptive 10M/100M/1000M network interfaces for DS-8100-SH models.  IPv6 is supported.  TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, RTSP, NTP, SADP, SMTP, SNMP, NFS and iSCSI are supported.

  • Page 9: Table Of Contents

    User Manual of DS-7200/7300/8100-SH Series DVR TABLE OF CONTENTS Product Key Features ......................5 C H A P T E R 1 ........................12 Introduction ..........................12 1.1 Front Panel ......................... 13 1.2 IR Remote Control Operations ................... 18 1.3 USB Mouse Operation ....................20 1.4 Input Method Description ..................
  • Page 10 User Manual of DS-7200/7300/8100-SH Series DVR 5.1 Configuring Encoding Parameters ................60 5.2 Configuring Record Schedule ..................63 5.3 Configuring Motion Detection Record ..............67 5.4 Configuring Alarm Triggered Record ................ 71 5.5 Configuring Manual Record ..................74 5.6 Configuring Holiday Record ..................75 5.7 Configuring Redundant Record .................
  • Page 11 User Manual of DS-7200/7300/8100-SH Series DVR 9.2 Configuring Advanced Settings ................132 9.2.1 Configuring PPPoE Settings ................. 132 9.2.2 Configuring DDNS ..................133 9.2.3 Configuring NTP Server ................136 9.2.4 Configuring SNMP ..................136 9.2.5 Configuring NAT ..................137 9.2.6 Configuring Remote Alarm Host ..............140 9.2.7 Configuring Multicast ...................
  • Page 12 13.5.3 Editing a User ....................191 13.5.4 Changing Password of Admin..............192 C H A P T E R 1 4 ......................194 Appendix ..........................194 List of Compatible Hikvision IP Cameras ..............195 Glossary ......................... 196 FAQ ..........................197...

  • Page 13: Chapter 1

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 1 Introduction...

  • Page 14: Front Panel

    User Manual of DS-7200/7300/8100-SH Series DVR 1.1 Front Panel DS-7200-SH and DS-7200HVI-SV: The front panel of DS-7200-SH/SV series DVR is shown in Figure 1.1: Figure 1.1 Front Panel of DS-7200-SH/SV Table 1.1 Description of Control Panel Buttons Name Function Description POWER indicator turns green when DVR is powered up.
  • Page 15 User Manual of DS-7200/7300/8100-SH Series DVR Name Function Description Indicator turns green when DVR is controlled by an IR remote control with the address from 1~254; Indicator turns red when the SHIFT button is used; Indicator does not light when the DVR is controlled by a keyboard or by the IR remote control with the address of 255;...
  • Page 16 User Manual of DS-7200/7300/8100-SH Series DVR Name Function Description Enter numeral “9”; Enter letters “WXYZ”; 9WXYZ/PREV Multi-camera display in live view; In Playback mode or MenuPlaybackTag playback interface, this button can be used to delete the selected tag. Enter numeral “0”; Switch between input methods (upper and lowercase alphabet, symbols and numeric input).
  • Page 17 User Manual of DS-7200/7300/8100-SH Series DVR Table 1.3 Description of Control Panel Buttons Name Function Description POWER ON/OFF Power on/off switch. IR Receiver Receiver for IR remote control. Connect to USB mouse or USB flash memory devices. DVD-R/W Slot for DVD-R/W. ALARM Alarm indicator turns red when a sensor alarm is detected.
  • Page 18 User Manual of DS-7200/7300/8100-SH Series DVR Name Function Description in menus. In Playback mode, the Up and Down button is used to speed up and slow down recorded video. In All-day Playback mode, the Left/Right button can be used to select the recorded video of next/previous day;...

  • Page 19: Ir Remote Control Operations

    User Manual of DS-7200/7300/8100-SH Series DVR 1.2 IR Remote Control Operations The device may also be controlled with the included IR remote control, shown in Figure 1.4. Note: Batteries (2× AAA) must be installed before operation. Figure 1.4 Remote Control Table 1.4 Description of the IR Remote Control Buttons Name Description...
  • Page 20 User Manual of DS-7200/7300/8100-SH Series DVR Name Description PLAY Button Entering the All-day Playback menu. INFO Button Reserved. Selecting all items on the list; VOIP/MON Button In live view or playback mode, it can be used to switch between main and auxiliary video output.

  • Page 21: Usb Mouse Operation

    User Manual of DS-7200/7300/8100-SH Series DVR 1.3 USB Mouse Operation A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB mouse: 1. Plug USB mouse into one of the USB interfaces on the front panel of the device. 2.

  • Page 22: Rear Panel

    User Manual of DS-7200/7300/8100-SH Series DVR 1.5 Rear Panel DS-7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV: The rear panel of 7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV DVR is shown in Figure 1.6. Figure 1.6 Rear Panel of DS-7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV DS-7216HVI-SH, DS-7216HVI-SV and DS-7216HWI-SL: The rear panel of DS-7216HVI-SH, DS-7216HVI-SV and DS-7216WI-SL DVR is shown in Figure 1.7.
  • Page 23 User Manual of DS-7200/7300/8100-SH Series DVR Table 1.7 Description of Rear Panel Item Description VIDEO IN BNC connector for analog video input. VIDEO OUT BNC connector for video output. USB Interface Connects USB mouse or USB flash memory devices. HDMI HDMI video output.
  • Page 24 User Manual of DS-7200/7300/8100-SH Series DVR Figure 1.10 Rear Panel of DS-7316HFI-SH and DS-7316HWI-SH Note: The rear panel of DS-7304HFI-SH/DS-7304HWI-SH provides 4 video input interfaces, and the rear panel of DS-7308HFI-SH/DS-7308HWI-SH provides 8 video input interfaces. Table 1.9 Description of Rear Panel Item Description VIDEO IN...
  • Page 25 User Manual of DS-7200/7300/8100-SH Series DVR Table 1.10 Description of Rear Panel Item Description MAIN VIDEO OUT BNC connector for video output. BNC connector for spot video output. SPOT VIDEO OUT VIDEO IN BNC connector for analog video input. RCA connector for audio output. This connector is synchronized with CVBS AUDIO OUT CVBS video output.
  • Page 26 User Manual of DS-7200/7300/8100-SH Series DVR Table 1.11 Description of Rear Panel Item Description VIDEO IN BNC connector for analog video input. BNC connector for video output. MAIN VIDEO OUT BNC connector for spot video output. SPOT VIDEO OUT RCA connector for audio output. This connector is synchronized with CVBS AUDIO OUT CVBS video output.

  • Page 27: Starting Up And Shutting Down The Device

    User Manual of DS-7200/7300/8100-SH Series DVR 1.6 Starting Up and Shutting Down the Device Purpose: Proper startup and shutdown procedures are crucial to expanding the life of the device. Before you start: Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground connection is working properly.

  • Page 28: Chapter 2

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 2 Getting Started...

  • Page 29: Using The Wizard For Basic Configuration

    User Manual of DS-7200/7300/8100-SH Series DVR 2.1 Using the Wizard for Basic Configuration The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard starts once the device has loaded. Operating the Setup Wizard: Select the system resolution from the drop-down menu.
  • Page 30 User Manual of DS-7200/7300/8100-SH Series DVR To change the admin password, check the New Admin Password checkbox. Enter the new password and confirm the password in the given fields. Figure 2.3 Login Window Click the Next button to enter the Date and Time settings window, as shown in Figure 2.4. Set the time zone, date format, system date and system time.
  • Page 31 User Manual of DS-7200/7300/8100-SH Series DVR Figure 2.5 Network Configuration Note: The DS-7204/7208/7216-SH/SV/SL models provide one 10M/100Mbps self-adaptive network interface, the DS-7224/7232-SH and DS-7300-SH models provide one 10M/100M/1000Mbps self-adaptive network interface, and the DS-8100-SH models provide two10M/100M/1000Mbps self-adaptive network interfaces. Click Next button to enter the advanced network settings window.
  • Page 32 User Manual of DS-7200/7300/8100-SH Series DVR Figure 2.7 HDD Management Click Next to enter the IP Camera Management window (only supported by HDVR series). Figure 2.8 IP Camera Management Click Search to search IP Camera. Click Add to add IP Camera (only supported by HDVR series). After finishing IP Camera settings lick Next to enter the Record Settings window.
  • Page 33 User Manual of DS-7200/7300/8100-SH Series DVR Figure 2.9 Record Settings Click Copy to copy the record settings of the current camera to other camera (s) if needed, as shown in Figure 2.10. Figure 2.10 Copy Record Settings Click OK to return to the Record Settings window. Click OK to complete the startup Setup Wizard.

  • Page 34: Adding And Connecting The Ip Cameras

    User Manual of DS-7200/7300/8100-SH Series DVR 2.2 Adding and Connecting the IP Cameras Note: This Chapter is available for the HDVR models only. 2.2.1 Adding the IP Cameras Purpose: The HDVR series can be connected with the network cameras and record the video from them. Before you can get a live view or record of the video, you should add the network cameras to the connection list of the device.
  • Page 35 User Manual of DS-7200/7300/8100-SH Series DVR Figure 2.12 IP Camera Management Select a camera from the list and click the icon to add it automatically. Or click the button Add All to add all the online cameras automatically. The user name and password are admin and 12345 by default.
  • Page 36 User Manual of DS-7200/7300/8100-SH Series DVR Figure 2.14 Successfully Added IP Cameras Import/Export the configuration file of the IP cameras. Import the configuration file of IP cameras to the device: Connect the backup device on which the configuration file is stored. Click the IP Camera Import/Export tab.
  • Page 37 User Manual of DS-7200/7300/8100-SH Series DVR Figure 2.16 Attention-Importing Succeeded Export the configuration file of IP cameras to backup device: Connect the backup device on which the configuration file is stored to the device. Click the IP Camera Import/Export tab. Figure 2.17 Export IP Camera Configuration File Select the backup device from the drop-down list.

  • Page 38: Configuring The Connected Ip Cameras

    User Manual of DS-7200/7300/8100-SH Series DVR 2.2.2 Configuring the Connected IP Cameras Editing the connected IP cameras Purpose: The detailed information of the added IP cameras will be displayed on a list, and you can configure the basic setting of the cameras if needed. Steps: 1.

  • Page 39: Chapter 3

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 3 Live View...

  • Page 40: Introduction Of Live View

    User Manual of DS-7200/7300/8100-SH Series DVR 3.1 Introduction of Live View Live view shows you the video image getting from each camera in real time. The device automatically enters Live View mode when powered on. It is also at the very top of the menu hierarchy, thus pressing the ESC many times (depending on which menu you’re on) brings you to the Live View mode.

  • Page 41: Operations In Live View Mode

    User Manual of DS-7200/7300/8100-SH Series DVR 3.2 Operations in Live View Mode In live view mode, the following functions can be realized: • Single Screen: showing only one screen on the monitor. • Multi-screen: showing multiple screens on the monitor simultaneously. •...

  • Page 42: Using An Auxiliary Monitor

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 3.1 Right-click Menu Table 3.3 Mouse Operation in Live View Name Description Menu Enter the main menu of the system by right-clicking the mouse. Single Screen Switch to the single full screen by choosing channel number from the dropdown list. Multi-screen Adjust the screen layout by choosing from the dropdown list.

  • Page 43: Main/Aux Output Switching

    User Manual of DS-7200/7300/8100-SH Series DVR • Main Monitor: Switch to the Main Output mode and the operation for the auxiliary output is disabled. Note: In the live view mode of the main output monitor, the menu operation is not available while Aux output mode is enabled.
  • Page 44 User Manual of DS-7200/7300/8100-SH Series DVR Table 3.4 Description of Quick Setting Toolbar Icons Icons Description Icons Description Icons Description Enable Manual Instant Playback Mute/Audio on Record PTZ Control Digital Zoom Image Settings Close Instant Playback Instant Playback only shows the record in last five minutes. If no record is found, it means there is no record during the last five minutes.
  • Page 45 User Manual of DS-7200/7300/8100-SH Series DVR  Outdoor: the image is relatively clearer and sharper. The degree of contrast and saturation is high. Figure 3.5 Image Settings Adjust the image parameters including the brightness, contrast, saturation, hue, sharpness level and denoising level by moving the sliding bar or increasing/decreasing the value.

  • Page 46: Configuring Live View Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 3.3 Configuring Live View Settings Purpose: Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc. Steps: 1.
  • Page 47 User Manual of DS-7200/7300/8100-SH Series DVR Note: The Spot Output 1 is provided for DS-7300-SH and DS-8100-SH models. • Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen. 2. Setting Camera Order Figure 3.8 Live View- Camera Order To set the camera order: Click the View tab to enter the camera order settings interface.

  • Page 48: Channel-Zero Encoding

    User Manual of DS-7200/7300/8100-SH Series DVR 3.4 Channel-zero Encoding Purpose: Sometimes you need to get a remote view of many channels in real time from web browser or CMS (Client Management System) software, in order to decrease the bandwidth requirement without affecting the image quality, channel-zero encoding is supported as an option for you.
  • Page 49 User Manual of DS-7200/7300/8100-SH Series DVR Figure 3.10 Video Quality Diagnostics Notes:  Connect the analog signal to the device for the video quality diagnostics.  Three exception types can be diagnosed: Blurred Image, Abnormal Brightness and Color Cast.  You can enter Menu>...

  • Page 50: User Logout

    User Manual of DS-7200/7300/8100-SH Series DVR 3.6 User Logout Purpose: After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter user name and password to log in again. Steps: 1.

  • Page 51: Chapter 4

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 4 PTZ Controls...

  • Page 52: Configuring Ptz Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 4.1 Configuring PTZ Settings Purpose: Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you control the PTZ camera. Before you start: Check that the PTZ and the device are connected properly through RS-485 interface. Steps: 1.

  • Page 53: Calling Presets

    User Manual of DS-7200/7300/8100-SH Series DVR Menu>Camera>PTZ>More Settings Figure 4.2 PTZ- More Settings 2. Use the directional button to wheel the camera to the location where you want to set preset. 3. Click the round icon before Save Preset. 4. Click the preset number to save the preset. Repeat the steps2-4 to save more presets.

  • Page 54: Customizing Patrols

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 4.4 PTZ- Call Preset 3. Choose the preset number. Call preset in live view mode: Steps: 1. Click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu in live view mode.
  • Page 55 User Manual of DS-7200/7300/8100-SH Series DVR moving on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps above in Customizing Presets. Steps: 1. Enter the PTZ Control interface. Menu>Camera>PTZ>More Settings 2.

  • Page 56: Calling Patrols

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 4.8 KeyPoints Deletion 4.2.4 Calling Patrols Purpose: Calling a patrol makes the PTZ to move according the predefined patrol path. Call patrol in the PTZ setting interface: Steps: 1. In the PTZ setting interface. Menu>...

  • Page 57: Customizing Patterns

    User Manual of DS-7200/7300/8100-SH Series DVR 1. Press PTZ control on the IR remote, or click PTZ Control icon on the quick setting toolbar, to show the PTZ control toolbar. 2. Choose Patrol on the control bar. 3. Click the patrol you want to call. Figure 4.10 PTZ Toolbar- Call Patrol 4.2.5 Customizing Patterns Purpose:...

  • Page 58: Calling Patterns

    User Manual of DS-7200/7300/8100-SH Series DVR under the image to move the PTZ camera. The movement of the PTZ is recorded as the pattern. 4. Click to save the pattern. Repeat the above steps to save more patterns. 4.2.6 Calling Patterns Purpose: Follow the procedure to move the PTZ camera according to the predefined patterns.

  • Page 59: Ptz Control Toolbar

    User Manual of DS-7200/7300/8100-SH Series DVR 4.3 PTZ Control Toolbar In the Live View mode, you can press the PTZ Control button on the IR remote control, or choose the PTZ Control icon to enter the PTZ toolbar. Figure 4.14 PTZ Toolbar Table 4.1 Description of the PTZ toolbar icons Description Description...

  • Page 60: Chapter 5

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 5 Record Settings...

  • Page 61: Configuring Encoding Parameters

    User Manual of DS-7200/7300/8100-SH Series DVR 5.1 Configuring Encoding Parameters Purpose: By configuring the encoding parameters you can define the transmission stream type, the resolution and so on. Before you start: 1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu>HDD>General) Figure 5.1 HDD- General 2.
  • Page 62 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.3(1) Encoding Parameters-Main Stream (Analog Camera) Figure 5.4 (2) Encoding Parameters-Main Stream (IP Camera) 2. Set encoding parameters for main stream Select Record to enter the main stream settings interface. Select the camera for configuration. Configure the following parameters for the Main Stream (Continuous) and the Main Stream...
  • Page 63  The selectable resolution for the IP camera is determined by the camera type (please refer to the Appendix List of Compatible Hikvision IP Cameras); up to 720P resolution is supported by 4-ch HDVR and 1080P resolution by 8-ch/16-ch HDVR.

  • Page 64: Configuring Record Schedule

    User Manual of DS-7200/7300/8100-SH Series DVR DS-8100HWSI-SH models only. Select the Main Stream and Substream for analog camera recording. When the substream is selected, you can record for a longer time with the same storage space. If you want to copy the current main stream settings to other analog camera (s), click Copy to enter the Copy Camera interface.
  • Page 65 User Manual of DS-7200/7300/8100-SH Series DVR 1. Enter the Record Schedule interface. Menu>Record>Schedule 2. Configure Record Schedule 1) Click Schedule to enter the record schedule settings interface. Figure 5.7 Record Schedule 2) Choose the camera you want to configure. 3) Check the check box after the Enable Schedule item. There are two ways to configure the record schedule.
  • Page 66 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.8 Edit Schedule 5) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time and Type. Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each other. Note: Repeat the above steps2)-5) to schedule recording for other days in the week.
  • Page 67 User Manual of DS-7200/7300/8100-SH Series DVR Steps: 1) Click the icon on the right to select a record type. Different recording types are available for different models. DS-7204/7208/7216 –SH, DS-7200-SV and DS-7200HWI-SL: Continuous and Motion. DS-7224/7232–SH, DS-7300-SH and DS-8100-SH: Continuous, Motion, Alarm, Motion/Alarm and Motion &...

  • Page 68: Configuring Motion Detection Record

    User Manual of DS-7200/7300/8100-SH Series DVR 5.3 Configuring Motion Detection Record Purpose: Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the device can analyze it and perform some response actions to handle it. Enabling motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center and so on.
  • Page 69 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.14 Motion Detection- Mask 4) Click the beside Settings and the message box for channel information will pop up. Figure 5.15 Motion Detection Handling Note: IP Camera is supported by HDVR series only. 5) Select the channels which you want the motion detection event to trigger recording.
  • Page 70 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.16 Record Schedule 1) Check the checkbox after the Enable Schedule item. 2) Click Edit. Figure 5.17 Edit Schedule- Motion Detection 3) In the message box, you can choose the day to which you want to set schedule. 4) Set the Type as Motion.
  • Page 71 User Manual of DS-7200/7300/8100-SH Series DVR If you can to copy the same schedule settings to other camera (s), click Copy to enter the Copy Camera interface, and then select the camera (s) you want to copy. Figure 5.19 Copy Schedule to Other Channels...

  • Page 72: Configuring Alarm Triggered Record

    User Manual of DS-7200/7300/8100-SH Series DVR 5.4 Configuring Alarm Triggered Record Note: This section is available for DS-7224/7332-SH, DS-7300-SH, DS-8100-SH and HDVR models only. Purpose: Follow the procedure to configure alarm triggered recording. Steps: Enter the Alarm setting interface. Menu> Configuration> Alarm Figure 5.20 Alarm Settings Click Alarm Input tab.
  • Page 73 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.22 Alarm Handling Note: IP Camera is supported by HDVR series only. 5) Choose the alarm triggered recording channel. 6) Check the checkbox to select channel. 7) Click Apply to save settings. 8) Click OK to back to the upper level menu. 9) Click Apply in the Alarm Input interface to save the settings.
  • Page 74 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.24 Record Schedule...

  • Page 75: Configuring Manual Record

    User Manual of DS-7200/7300/8100-SH Series DVR 5.5 Configuring Manual Record Purpose: Follow the steps to set parameters for the manual record. When using manual record, you need to manually cancel the record. The manual recording is prior to the scheduled recording. Steps: Enter the Manual settings interface.

  • Page 76: Configuring Holiday Record

    User Manual of DS-7200/7300/8100-SH Series DVR 5.6 Configuring Holiday Record Purpose: You may want to have different plan for recording on holiday. Follow the steps to configure the record schedule on holiday. Steps: Enter the Record setting interface. Menu>Record Choose Holiday on the left bar. Figure 5.27 Holiday Settings Enable Edit Holiday schedule.
  • Page 77 User Manual of DS-7200/7300/8100-SH Series DVR 5) Click Apply to save settings. 6) Click OK to exit the Edit interface. Enter Record Schedule settings interface. Menu> Record> Schedule 1) Select Record. 2) Check the checkbox after Enable Schedule. 3) Click Edit. 4) Select Holiday from the Schedule dropdown list.

  • Page 78: Configuring Redundant Record

    User Manual of DS-7200/7300/8100-SH Series DVR 5.7 Configuring Redundant Record Purpose: Enabling redundant recording, which means saving the record files not only in the R/W (read/write) HDD but also in the redundant HDD, will effectively enhance the data safety and reliability. Note: You must set the Storage mode in the HDD advanced settings to Group before you set the HDD property to Redundant.
  • Page 79 User Manual of DS-7200/7300/8100-SH Series DVR Figure 5.32 Encoding Record 2) Select Camera you want to configure. 3) Check the checkbox of the Redundant Record. otes: 1. The Redundant Record option is only available when the HDD mode is Group. 2.

  • Page 80: Configuring Hdd Group For Record

    User Manual of DS-7200/7300/8100-SH Series DVR 5.8 Configuring HDD Group for Record Purpose: You can group the HDDs and save the record files in certain HDD group. Steps: Enter HDD setting interface. Menu>HDD Figure 5.33 HDD-General Select Advanced on the left bar. Check whether the storage mode of the HDD is Group.
  • Page 81 User Manual of DS-7200/7300/8100-SH Series DVR Note: After having configured the HDD groups, you can configure the Recording settings following the procedure provided in Chapter 5.2-5.6.

  • Page 82: Files Protection

    User Manual of DS-7200/7300/8100-SH Series DVR 5.9 Files Protection Purpose: You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten. Protect file by locking the record files: Steps: Enter Playback setting interface. Menu>...
  • Page 83 User Manual of DS-7200/7300/8100-SH Series DVR Protect the record files. Find the record files you want to protect, and then click the icon which will turn to indicating that the file is locked. The record files of which the recording is still not completed can’t be locked. Note: Click to change it as...
  • Page 84 User Manual of DS-7200/7300/8100-SH Series DVR Click OK to save settings and back to the upper level menu. You can’t save any files in a Read-only HDD. If you want to save files in the HDD, change the Note: property to R/W. If there is only one HDD and is set to Read-only, the device can’t record any files.

  • Page 85: Chapter 6

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 6 Playback...

  • Page 86: Playing Back Record Files

    User Manual of DS-7200/7300/8100-SH Series DVR 6.1 Playing Back Record Files 6.1.1 Playing Back by Channel Purpose: Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported. Instant playback by channel: Steps: Choose a channel in live view mode using the mouse and click the button in the quick setting toolbar.
  • Page 87 User Manual of DS-7200/7300/8100-SH Series DVR Figure 6.2 Right-click Menu under Live View Note: The Add IP Camera item is available for the HDVR only. Press PLAY button on the IR remote control to play back record files of the channel under single-screen live view.

  • Page 88: Playing Back By Time

    User Manual of DS-7200/7300/8100-SH Series DVR Check the checkboxes to select the channel(s), and then the video from the selected channels will be played back synchronously. Up to 16 channels can be set for synchronous playback. Click the Max. Camera for Playback tab, and you can play back the video from 16 channels at a time. Click the Min.
  • Page 89 User Manual of DS-7200/7300/8100-SH Series DVR displayed as . Otherwise it is displayed as Figure 6.5 Playback Calendar In the Playback interface: The toolbar in the bottom part of Playback interface can be used to control playing process. Figure 6.6 Interface of Playback by Time Figure 6.7 Toolbar of Playback by Time...

  • Page 90: Playing Back By Event Search

    User Manual of DS-7200/7300/8100-SH Series DVR Table 6.2 Detailed Explanation of Playback-by-time Toolbar Button Operation Button Operation Button Operation Mute/Audio on Start/Stop clipping Save clip(s) Add default tag Add customized tag Tag management Pause/ Digital Zoom Smart Search Play Reverse Stop 30s backward 30s forward...
  • Page 91 User Manual of DS-7200/7300/8100-SH Series DVR Figure 6.8 Video Search by Motion Detection Click Search, and the record files matching the search conditions will be displayed on a list. Figure 6.9 Result of Video Search by Alarm Input 4. Select an click button to play back the record files.
  • Page 92 User Manual of DS-7200/7300/8100-SH Series DVR recording at 10:00, if you set the pre-play time as 5 seconds, the video plays back from 9:59:55. Post-play: The time you set to play back after the event. For example, when an alarm triggered the recording ends at 11:00, if you set the post-play time as 5 seconds, the video plays back till 11:00:05.

  • Page 93: Playing Back By Tag

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 6.12 Toolbar of Playback by Event Table 6.3 Detailed Explanation of Playback-by-event Interface Button Operation Button Operation Button Operation Mute/Audio on Start/Stop clipping Save clip(s) Add default tag Add customized tag Tag management Pause/ Digital Zoom Smart Search...
  • Page 94 User Manual of DS-7200/7300/8100-SH Series DVR Click button to add default tag. Click button to add customized tag and input tag name. Note: Max. 64 tags can be added to a single video file. 2. Tag management. Click button to check, edit and delete tag(s). Figure 6.14 Tag Management Interface Steps: 1.
  • Page 95 User Manual of DS-7200/7300/8100-SH Series DVR 6. Click button to play back the file. You can click the Back button to back to the search interface. Pre-play and post-play time can be set according to actual needs. Note: Pre-play time and post-play time is added to the time point of the tag. Figure 6.16 Interface of Playback by Tag Figure 6.17 Toolbar of Playback by Tag Table 6.4 Detailed Explanation of Playback-by-tag Toolbar...

  • Page 96: Playing Back By Smart Search

    User Manual of DS-7200/7300/8100-SH Series DVR 6.1.5 Playing Back by Smart Search Purpose: The smart playback function provides an easy way to get through the less effective information. When you select the smart playback mode, the system will analyze the video with motion, mark it with green color and play it in the normal speed while the video without motion will be played in the 8-time speed.

  • Page 97: Playing Back By System Log

    User Manual of DS-7200/7300/8100-SH Series DVR 6.1.6 Playing Back by System Log Purpose: You can also play back record file(s) after searching system logs. Steps: 1. Enter Log Information interface. Menu>Maintenance>Log Information>Log Search Figure 6.19 Log Search Interface 2. Specify the start time and end time for search. 3.

  • Page 98: Playing Back External Files

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 6.20 Result of System Log Search 6. Select a log with record file and click button to enter Playback interface. If there is no record file at the time point of the log, the message box “No result found” will pop Note: Figure 6.21 Interface of Playback by Log 6.1.7 Playing Back External Files...
  • Page 99 User Manual of DS-7200/7300/8100-SH Series DVR and s 2. Click elect to enter the External File Playback interface. The files stored in the extrenal device are listed in the right-side list. You can click the Refresh button to refresh the file list. 3.

  • Page 100: Auxiliary Functions Of Playback

    User Manual of DS-7200/7300/8100-SH Series DVR 6.2 Auxiliary Functions of Playback 6.2.1 Playing Back Frame by Frame Purpose: Play video files frame by frame, in order to check image details of the video when abnormal events happen. Steps: • Using a Mouse: Go to Playback interface.
  • Page 101 User Manual of DS-7200/7300/8100-SH Series DVR Figure 6.23 Playback Interface 2. Click the icon on the playback control toolbar to enter Smart Search mode. The smart search toolbar appears at the bottom of the screen. Figure 6.24 Smart Search Toolbar 3.

  • Page 102: Digital Zoom

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 6.26 Smart Search Result 6.2.3 Digital Zoom Steps: 1. Enter the Playback interface and start the playback. For details, see Chapter 6.1. 2. Click the icon on the playback control toolbar to enter Digital Zoom mode. 3.

  • Page 103: Reverse Playback Of Multi-Channel

    User Manual of DS-7200/7300/8100-SH Series DVR 6.2.4 Reverse Playback of Multi-channel Purpose: You can play back record files of multi-channel reversely. Steps: 1. Enter the Playback interface. Menu>Playback 2. Check checkbox to select the channel(s) and double-click to select a date on the calendar. Note: If more than one channel is optional, the synchronous playback will be activated.

  • Page 104: Chapter 7

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 7 Backup...

  • Page 105: Backing Up Record Files

    User Manual of DS-7200/7300/8100-SH Series DVR 7.1 Backing up Record Files Before you start: Please insert the backup device(s) into the device. 7.1.1 Quick Export Purpose: Export record files to backup device(s) quickly. Steps: 1. Enter Video Export interface. Menu>Export>Normal Figure 7.1 Quick Export Interface 2.

  • Page 106: Backing Up By Normal Video Search

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 7.2 Quick Export using USB1-1 3. In the Export interface, choose backup device and click Export button to start exporting. Note: Here we use USB Flash Drive and please refer to the next section Normal Backup for more backup devices supported by the device.
  • Page 107 User Manual of DS-7200/7300/8100-SH Series DVR Steps: 1. Enter Export interface. Menu>Export>Normal Figure 7.4 Normal Video Search for Backup 2. Set search conditions and click Search button to enter the search result interface. 3. Select record files you want to back up. Click button to play the record file if you want to check it.
  • Page 108 User Manual of DS-7200/7300/8100-SH Series DVR Click Export button and start backup. Note: If the inserted device is not recognized: • Click the Refresh button. • Reconnect device. • Check for compatibility from vendor. You can also format USB flash drives or USB HDDs via the device. USB writer, SATA writer and eSATA HDD cannot be formatted.

  • Page 109: Backing Up By Event Search

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 7.8 Checkup of Export Result using USB Flash Drive 7.1.3 Backing up by Event Search Purpose: Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported. Notes: Backup by alarm input search is supported by DS-7224/7232-SH, DS-7300-SH, DS-8100-SH and HDVR models only.
  • Page 110 User Manual of DS-7200/7300/8100-SH Series DVR Figure 7.9 Event Search for Backup 5. Click Search button to enter the Search Result interface. Figure 7.10 Result of Event Search 6. Select record files to export. You can use the following two ways to enter the Export interface. ...
  • Page 111 User Manual of DS-7200/7300/8100-SH Series DVR shown in Figure 7.14. Figure 7.11 Event Details Interface 7. Export the selected record files. Click the Export button and start backing up. Note: If the inserted USB device is not recognized: • Click the Refresh button. •...

  • Page 112: Backing Up Video Clips

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 7.13 Export Finished 8. Check backup result. Choose the record file in Export interface and click button to check it. Note: The Player player.exe will be exported automatically during record file export. Figure 7.14 Checkup of Event Export Result Using USB Flash Drive 7.1.4 Backing up Video Clips Purpose: You may also select video clips to export directly during Playback, using USB devices (USB flash drives,...
  • Page 113 User Manual of DS-7200/7300/8100-SH Series DVR Figure 7.15 Interface of Playback by Time 3. Click the icon to enter the Clips Export interface. Note: A maximum of 30 clips can be selected for each channel. 4. Click the button Export to export the selected video clips to the backup device. Figure 7.16 Export Video Clips Using USB Flash Drive Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.
  • Page 114 User Manual of DS-7200/7300/8100-SH Series DVR Figure 7.17 Export Finished 5. After the backup is complete, the exported record files will be displayed in a list on the Export interface. Note: The Player program player.exe will be exported automatically during record file export. Figure 7.18 Checkup of Video Clips Export Result Using USB Flash Drive...

  • Page 115: Managing Backup Devices

    User Manual of DS-7200/7300/8100-SH Series DVR 7.2 Managing Backup Devices Management of USB flash drive, USB HDD and eSATA HDD. Note: The eSATA HDD is supported by DS-7300-SH and DS-8100-SH models only. Steps: 1. Enter the Export interface of backup device. For details, see Chapter 7.1-7.2. Figure 7.19 Management of USB Flash Drives, USB HDDs and eSATA HDDs Figure 7.20 Management of USB Writers and DVD-R/W 2.
  • Page 116 User Manual of DS-7200/7300/8100-SH Series DVR  Click the button Refresh.  Reconnect device.  Check for compatibility from vendor.

  • Page 117: Chapter 8

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 8 Alarm Settings...

  • Page 118: Setting Motion Detection

    User Manual of DS-7200/7300/8100-SH Series DVR 8.1 Setting Motion Detection Steps: 1. Enter Motion Detection interface and choose a camera you want to set motion detection. Menu> Camera> Motion Figure 8.1 Motion Detection Setup Interface 2. Set motion detection area and sensitivity. Check the checkbox of Enable Motion Detection to enable motion detection, use the mouse to draw detection area(s) and drag the sensitivity bar to set sensitivity.
  • Page 119 User Manual of DS-7200/7300/8100-SH Series DVR Figure 8.3 Set Trigger Camera of Motion Detection 4. Set up arming schedule of the channel. Select Arming Schedule tab to set the channel’s arming schedule. Choose one day of a week and up to eight time periods can be set within each day. Click Apply to save the arming settings of the selected day.
  • Page 120 User Manual of DS-7200/7300/8100-SH Series DVR 7. If you want to set up motion detection for another channel (s), repeat the above steps or copy the above settings to the channel (s). You are not allowed to copy the “Trigger Channel” and “Linkage Action” settings. Note: Figure 8.6 Copy Settings of Motion Detection...

  • Page 121: Setting Sensor Alarms

    User Manual of DS-7200/7300/8100-SH Series DVR 8.2 Setting Sensor Alarms Note: This section is available for DS-7224/7232-SH, DS-7300-SH, DS-8100-SH and HDVR models only. Purpose: You can set handling method of an external sensor alarm. Steps: 1. Enter Alarm Settings interface and select an alarm input. Menu>...
  • Page 122 User Manual of DS-7200/7300/8100-SH Series DVR 8.6). Figure 8.9 Set Arming Schedule of Alarm Input 6. If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input. Set PTZ linking parameters and click Apply to save the settings. Click OK to complete the settings of the alarm input.
  • Page 123 User Manual of DS-7200/7300/8100-SH Series DVR Figure 8.11 Copy Settings of Alarm Input...

  • Page 124: Detecting Video Loss

    User Manual of DS-7200/7300/8100-SH Series DVR 8.3 Detecting Video Loss Purpose: Detect video loss of a channel and take alarm response action(s). Steps: 1. Enter Video Loss interface of Camera Management. Menu> Camera> Video Loss Figure 8.12 Video Loss Setup Interface 2.

  • Page 125: Detecting Video Tampering

    User Manual of DS-7200/7300/8100-SH Series DVR 8.4 Detecting Video Tampering Purpose: Trigger alarm when the lens is covered and take alarm response action(s). Steps: 1. Enter Video Tampering interface of Camera Management. Menu> Camera> Tamper-proof Figure 8.14 Tamper-proof Setup Interface 2.

  • Page 126: Handling Exceptions

    User Manual of DS-7200/7300/8100-SH Series DVR 8.5 Handling Exceptions Purpose: Exception settings refer to the handling method of various exceptions, e.g., • HDD Full: The HDD is full. • HDD Error: Writing HDD error, unformatted HDD, etc. • Network Disconnected: Disconnected network cable. •...

  • Page 127: Setting Alarm Response Actions

    User Manual of DS-7200/7300/8100-SH Series DVR 8.6 Setting Alarm Response Actions Purpose: The alarm response actions will be activated when an exception occurs, including Full Screen Monitoring, Audible Warning, Notify Surveillance Center, and Send Email. Full Screen Monitoring When an alarm event (motion detection/tamper-proof/video loss detection) is triggered, the local monitor (HDMI/VGA or BNC monitor) display in full screen the video image from the alarming channel configured for full screen monitoring.
  • Page 128 User Manual of DS-7200/7300/8100-SH Series DVR Figure 8.18 Alarm Output Settings Interface 2. Set arming schedule of the alarm output. Click to set the arming schedule of alarm output. Choose one day of a week and up to 8 time periods can be set within each day.

  • Page 129: Triggering Or Clearing Alarm Output Manually

    User Manual of DS-7200/7300/8100-SH Series DVR 8.7 Triggering or Clearing Alarm Output Manually Note: This section is available for DS-7224/7332-SH, DS-7300-SH, DS-8100-SH and HDVR models only. Purpose: Sensor alarm can be triggered or cleared manually. If Manually Clear is selected in the dropdown list of dwell time of an alarm output, the alarm can be cleared only by clicking Clear button in the following interface.

  • Page 130: Chapter 9

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 9 Network Settings...

  • Page 131: Configuring General Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 9.1 Configuring General Settings Purpose: Network settings must be properly configured before you operate device over network. Steps (for DS-7200-SH/SV/SL and DS-7300-SH): 1. Enter the Network Settings interface. Menu > Configuration > Network 2. Select the General tab. Figure 9.1 General Network Settings of DS-7200-SH/SV/SL Figure 9.2 General Network Settings of DS-7300-SH Note:...
  • Page 132 User Manual of DS-7200/7300/8100-SH Series DVR Server. If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an IP address and other network settings from that server. Notes:  When the DHCP is failed, the default IP address (192.168.1.64) will be used. ...

  • Page 133: Configuring Advanced Settings

    User Manual of DS-7200/7300/8100-SH Series DVR Load Balance Mode: By using the same IP address, two NIC cards share the load of the total bandwidth, which enables the system to provide two Gigabit network capacity. Figure 9.5 Load Balance Working Mode Net Fault-tolerance Mode: The two NIC cards use the same IP address, and you can select the Main NIC to LAN1 or LAN2.

  • Page 134: Configuring Ddns

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 9.7 PPPoE Settings Interface Check the PPPoE checkbox to enable this feature. Enter User Name and Password for PPPoE access. Note: The User Name and Password should be assigned by your ISP. Figure 9.8 PPPoE Settings Interface Click the Apply button to save and exit the interface.
  • Page 135 User Manual of DS-7200/7300/8100-SH Series DVR Figure 9.10 IPServer Settings Interface • DynDNS: 1) Enter Server Address for DynDNS (e.g. members.dyndns.org). 2) In the Device Domain Name text field, enter the domain obtained from the DynDNS website. 3) Enter the User Name and Password registered in the DynDNS website. Figure 9.11 DynDNS Settings Interface •...
  • Page 136 User Manual of DS-7200/7300/8100-SH Series DVR • HiDDNS: You need to enter the Server Address and Device Domain Name for HiDDNS, and other fields are read only. 1) Enter the Server Address of the HiDDNS server: www.hik-online.com. 2) Enter the Device Domain Name. You can register the alias of the device domain name in the HiDDNS server first and then enter the alias to the Device Domain Name in the DVR;...

  • Page 137: Configuring Ntp Server

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 9.16 Register the Device Only lower-case English alphabet, numeric and ‘-’ can be used in the alias of the device and the Note: alias must be started with letters of the lower-case English alphabet. Click the Apply button to save and exit the interface.

  • Page 138: Configuring Nat

    User Manual of DS-7200/7300/8100-SH Series DVR Purpose: You can use SNMP protocol to get device status and parameters related information. Steps: Enter the Network Settings interface. Menu > Configuration > Network Select the SNMP tab to enter the SNMP Settings interface. Figure 9.18 SNMP Settings Interface Check the SNMP checkbox to enable this feature.
  • Page 139 User Manual of DS-7200/7300/8100-SH Series DVR Menu > Configuration > Network 2. Select the NAT tab to enter the NAT settings interface. Figure 9.20 UPnP™ Settings Interface 3. Check checkbox to enable UPnP™. 4. Select the mapped type to Auto or Manual. Task1: Auto If you select Auto, the Port Mapping items are read-only, and the external ports are set by the router automatically.
  • Page 140 User Manual of DS-7200/7300/8100-SH Series DVR Figure 9.22 External Port Settings Dialog Box Click Apply to save the settings. You can click Refresh to get the latest status of the port mapping. Figure 9.23 UPnP™ Settings Finished-Manual  Manual Mapping If your router does not support the UPnP function, perform the following steps to map the port manually in an easy way.

  • Page 141: Configuring Remote Alarm Host

    User Manual of DS-7200/7300/8100-SH Series DVR 5. Click OK to save the setting for the current port and return to the upper-level menu. 6. Click Apply button to save the settings. 7. Enter the virtual server setting page of router. Input the internal port value in the Internal Source Port textfield, the external port value in the External Source Port textfield, and other required information.

  • Page 142: Configuring Multicast

    User Manual of DS-7200/7300/8100-SH Series DVR 9.2.7 Configuring Multicast Purpose: The multicast can be configured to realize live view for more than the maximum number of cameras through network. A multicast address spans the Class-D IP range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging from 239.252.0.0 to 239.255.255.255.

  • Page 143: Configuring Server And Http Ports

    User Manual of DS-7200/7300/8100-SH Series DVR 9.2.9 Configuring Server and HTTP Ports Purpose: You can change the server and HTTP ports in the Network Settings menu. The default server port is 8000 and the default HTTP port is 80. Steps: Enter the Network Settings interface.
  • Page 144 User Manual of DS-7200/7300/8100-SH Series DVR Figure 9.31 HTTPS Settings OPTION 1: Create the self-signed certificate Click the Create button and a dialog box pops up as follows: Figure 9.32 signed Create Self- Certificate Enter the country, host name/IP, validity and other information. Click OK to save the settings.

  • Page 145: Configuring Email

    User Manual of DS-7200/7300/8100-SH Series DVR 9.2.11 Configuring Email Purpose: The system can be configured to send an Email notification to all designated users if an alarm event is detected, a motion detection event is detected, etc. Before configuring the Email settings, the device must be connected to a local area network (LAN) that maintains an SMTP mail server.
  • Page 146 User Manual of DS-7200/7300/8100-SH Series DVR Configure the following Email settings: Enable Server Authentication (optional): Check the checkbox to enable the server authentication feature. User Name: The user account of sender’s Email for SMTP server authentication. Password: The password of sender’s Email for SMTP server authentication. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

  • Page 147: Checking Network Traffic

    User Manual of DS-7200/7300/8100-SH Series DVR 9.3 Checking Network Traffic Purpose: You can check the network traffic to obtain real-time information of device such as linking status, MTU, sending/receiving rate, etc. Steps: Enter the Network Traffic interface. Menu > Maintenance > Net Detect Figure 9.38 Network Traffic Interface You can view the sending rate and receiving rate information on the interface.

  • Page 148: Network Detection

    User Manual of DS-7200/7300/8100-SH Series DVR 9.4 Network Detection Purpose: You can obtain network connecting status of device through the network detection function, including network delay, packet loss, etc. 9.4.1 Testing Network Delay and Packet Loss Steps: Enter the Network Traffic interface. Menu >...

  • Page 149: Checking Network Status

    User Manual of DS-7200/7300/8100-SH Series DVR 3. Select the backup device from the dropdown list of Device Name. Note: Click the Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, please check whether it is compatible with the device. You can format the backup device if the format is incorrect.
  • Page 150 User Manual of DS-7200/7300/8100-SH Series DVR Figure 9.43 Checking Network Status If the network is normal the following message box pops out. Figure 9.44 Network Status Checking Result If the message box pops out with other information instead of this one, you can click Network button to show the quick setting interface of the network parameters.

  • Page 151: Checking Network Statistics

    User Manual of DS-7200/7300/8100-SH Series DVR 9.4.4 Checking Network Statistics Purpose: You can check the network statistics to obtain the real-time information of the device. Steps: 1. Enter the Network Statistics interface. Menu > Maintenance> Net Detect 2. Click the Network Stat. tab to enter the Network Statistics menu. Figure 9.46 Network Stat.

  • Page 152: Hdd Management

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 1 0 HDD Management...

  • Page 153: Initializing Hdds

    User Manual of DS-7200/7300/8100-SH Series DVR 10.1 Initializing HDDs Purpose: A newly installed hard disk drive (HDD) must be initialized before it can be used with your device. Steps: Enter the HDD Information interface. Menu > HDD>General Figure 10.1 HDD Information Interface Select the HDD to be initialized.
  • Page 154 User Manual of DS-7200/7300/8100-SH Series DVR Figure 10.3 HDD Status Changes to Normal Note: Initializing the HDD will erase all data on it.

  • Page 155: Managing Network Hdd

    User Manual of DS-7200/7300/8100-SH Series DVR 10.2 Managing Network HDD Purpose: You can add the allocated NAS or disk of IP SAN to device, and use it as network HDD. Steps: Enter the HDD Information interface. Menu > HDD > General Figure 10.4 HDD Information Interface Click the Add button to enter the Add NetHDD interface, as shown in Figure 10.5.
  • Page 156 User Manual of DS-7200/7300/8100-SH Series DVR Configure the NAS or IP SAN settings. • Add NAS disk: 1) Enter the NetHDD IP address in the text field. 2) Click Search to search the available NAS disks. 3) Select the NAS disk from the list shown below. Or you can just manually enter the directory in the text field of NetHDD Directory.
  • Page 157 User Manual of DS-7200/7300/8100-SH Series DVR Note: If the added NetHDD is uninitialized, please select it and click the Init button for initialization. Figure 10.8 Initialize Added NetHDD...

  • Page 158: Managing Hdd Group

    User Manual of DS-7200/7300/8100-SH Series DVR 10.3 Managing HDD Group 10.3.1 Setting HDD Groups Purpose: Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings. Steps: Enter the Storage Mode interface. Menu >...

  • Page 159: Setting Hdd Property

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 10.11 Local HDD Settings Interface Select the Group number for the current HDD. Note: The default group No. for each HDD is 1. Click the OK button to confirm the settings. Figure 10.12 Confirm HDD Group Settings In the pop-up Attention box, click the Yes button to finish the settings.
  • Page 160 User Manual of DS-7200/7300/8100-SH Series DVR Figure 10.13 Set HDD Property Set the HDD property to R/W, Read-only or Redundancy. Click the OK button to save the settings and exit the interface. In the HDD Information menu, the HDD property will be displayed in the list. Note: At least 2 disks (HDD or network disk) must be installed or connected on your device when you want to set a HDD to Redundancy, and there is one HDD with R/W property.

  • Page 161: Configuring Quota Mode

    User Manual of DS-7200/7300/8100-SH Series DVR 10.4 Configuring Quota Mode Purpose Each camera can be configured with allocated quota for the storage of recorded files. Steps Enter the Storage Mode interface. Menu > HDD > Advanced Set the Mode to Quota. Note: The device must be rebooted to enable the changes to take effect.

  • Page 162: Checking Hdd Status

    User Manual of DS-7200/7300/8100-SH Series DVR 10.5 Checking HDD Status Purpose: You may check the status of the installed HDDs on device so as to take immediate check and maintenance in case of HDD failure. Checking HDD Status in HDD Information Interface Steps: Enter the HDD Information interface.

  • Page 163: Checking S.m.a.r.t. Information

    User Manual of DS-7200/7300/8100-SH Series DVR 10.6 Checking S.M.A.R.T. Information Purpose: The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures. Steps: Enter the S.M.A.R.T.

  • Page 164: Detecting Bad Sector

    User Manual of DS-7200/7300/8100-SH Series DVR 10.7 Detecting Bad Sector Purpose: The bad sectors of a HDD may cause the system to slow down when reading or writing data. You can detect the bad sectors of the HDD and thus to take immediate measures to repair it. Steps: 1.

  • Page 165: Configuring Hdd Error Alarms

    User Manual of DS-7200/7300/8100-SH Series DVR 10.8 Configuring HDD Error Alarms Purpose: You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal. Steps: Enter the Exception interface. Menu > Configuration > Exceptions Select the Exception Type to HDD Error from the dropdown list. Click the checkbox(s) below to select the HDD error alarm type (s).

  • Page 166: Camera Settings

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 11 Camera Settings...

  • Page 167: Configuring Osd Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 11.1 Configuring OSD Settings Purpose: You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc. Steps: 1. Enter the OSD Configuration interface. Menu > Camera > OSD 2.

  • Page 168: Configuring Privacy Mask

    User Manual of DS-7200/7300/8100-SH Series DVR 11.2 Configuring Privacy Mask Purpose: You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator. Steps: 1. Enter the Privacy Mask Settings interface. Menu > Camera > Privacy Mask 2.

  • Page 169: Configuring Video Parameters

    User Manual of DS-7200/7300/8100-SH Series DVR 11.3 Configuring Video Parameters Steps: 1. Enter the Image Settings interface. Menu > Camera > Image 2. Select the camera to set image parameters. 3. Set the period of a day for configuring independent image parameters so as to satisfy different light conditions, e.g., daylight and night time.

  • Page 170: Configuring Video Quality Diagnostics

    User Manual of DS-7200/7300/8100-SH Series DVR 11.4 Configuring Video Quality Diagnostics Purpose: When the video quality is diagnosed abnormal (e.g., blurred image, abnormal brightness and color cast), the alarm will be triggered and linked with the configured response actions Steps: 1.
  • Page 171 User Manual of DS-7200/7300/8100-SH Series DVR Figure 11.8 Image Settings Interface 7. Click Apply to save the settings. You can click Copy to copy the settings to other analog cameras; or click Restore to restore the values of the Blurred Image, Abnormal Brightness and Color Cast to the default settings.

  • Page 172: Device Management And Maintenance

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 1 2 Device Management and Maintenance...

  • Page 173: Viewing System Information

    User Manual of DS-7200/7300/8100-SH Series DVR 12.1 Viewing System Information 12.1.1 Viewing Device Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Device Info tab to enter the Device Information menu to view the device name, model, serial No. , firmware version and encoding version.

  • Page 174: Viewing Alarm Information

    User Manual of DS-7200/7300/8100-SH Series DVR Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Record tab to enter the Record Information menu to view the recording status and encoding parameters of each camera. Figure 12.3 Record Information Interface 12.1.4 Viewing Alarm Information Note:...

  • Page 175: Viewing Network Information

    User Manual of DS-7200/7300/8100-SH Series DVR 12.1.5 Viewing Network Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Network tab to enter the Network Information menu to view the network information. Figure 12.5 Network Information Interface 12.1.6 Viewing HDD Information Steps: 1.
  • Page 176 User Manual of DS-7200/7300/8100-SH Series DVR Figure 12.6 HDD Information Interface...

  • Page 177: Searching & Exporting Log Files

    User Manual of DS-7200/7300/8100-SH Series DVR 12.2 Searching & Exporting Log Files Purpose: The operation, alarm, exception and information of the device can be stored in log files, which can be viewed and exported at any time. Steps: 1. Enter the Log Search interface. Menu >...
  • Page 178 User Manual of DS-7200/7300/8100-SH Series DVR Figure 12.8 Log Search Results 5. You can click the button of each log or double click it to view its detailed information. And you can also click the button to view the related video files if available. Figure 12.9 Log Details 6.

  • Page 179: Importing/Exporting Configuration Files

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 12.10 Log Export Interface Check checkbox to select the HDD and click Export to enter the export interface. Figure 12.11 Export Log Files 7. Select the backup device from the dropdown list of Device Name. 8.
  • Page 180 User Manual of DS-7200/7300/8100-SH Series DVR Figure 12.12 Import/Export Config File 2. Click the Export button to export configuration files to the selected local backup device. 3. To import a configuration file, select the file from the selected backup device and click the Import button. After the import process is completed, you must reboot the device.

  • Page 181: Upgrading System

    User Manual of DS-7200/7300/8100-SH Series DVR 12.4 Upgrading System Purpose: The firmware on your device can be upgraded by local backup device or remote FTP server. 12.4.1 Upgrading by Local Backup Device Steps: 1. Connect your device with a local backup device where the update firmware file is located. 2.
  • Page 182 User Manual of DS-7200/7300/8100-SH Series DVR Figure 12.14 FTP Upgrade Interface 3. Enter the FTP Server Address in the text field. 4. Click the Upgrade button to start upgrading. 5. After the upgrading is complete, reboot the device to activate the new firmware.

  • Page 183: Restoring Default Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 12.5 Restoring Default Settings Steps: Enter the Default interface. Menu > Maintenance > Default Figure 12.15 Restore Factory Default Click the OK button to restore the default settings. Note: Except the network parameters (including IP address, subnet mask, gateway, MTU and server port), all other parameters of the device will be restored to factory default settings.

  • Page 184: Others

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 1 3 Others...

  • Page 185: Configuring General Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 13.1 Configuring General Settings Purpose: You can configure the BNC output standard, VGA/HDMI output resolution, mouse pointer speed, etc. Steps: Enter the General Settings interface. Menu > Configuration > General Select the General tab. Figure 13.1 General Settings Interface Configure the following settings: •...

  • Page 186: Configuring Rs-232 Serial Port

    User Manual of DS-7200/7300/8100-SH Series DVR 13.2 Configuring RS-232 Serial Port Note: The RS-232 serial port is provided by DS-7300-SH and DS-8100-SH models only. Purpose: The RS-232 port can be used in two ways: • Parameters Configuration: Connect a PC to the device through the PC serial port. Device parameters can be configured by using software such as HyperTerminal.

  • Page 187: Configuring Dst Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 13.3 Configuring DST Settings Steps: Enter the General Settings interface. Menu >Configuration>General Choose DST Settings tab. Figure 13.3 DST Settings Interface You can check the checkbox before the Auto DST Adjustment item. Or you can manually check the Enable DST checkbox, and then set the date of the DST period.

  • Page 188: Configuring More Settings

    User Manual of DS-7200/7300/8100-SH Series DVR 13.4 Configuring More Settings Steps: Enter the General Settings interface. Menu > Configuration > General Click the More Settings tab to enter the More Settings interface. Figure 13.4 More Settings Interface Configure the following settings: •...

  • Page 189: Managing User Accounts

    User Manual of DS-7200/7300/8100-SH Series DVR 13.5 Managing User Accounts Purpose: There is a default account in the device: Administrator. The Administrator user name is admin and the password is 12345. The Administrator has the permission to add and delete user and configure user parameters. 13.5.1 Adding a User Steps: Enter the User Management interface.
  • Page 190 User Manual of DS-7200/7300/8100-SH Series DVR • Operator: The Operator user level has permission of Local Log Search in Local Configuration, Remote Log Search and Two-way Audio in Remote Configuration and all operating permission in Camera Configuration. • Guest: The Guest user has permission of Local Log Search in Local Configuration, Remote Log Search in Remote Configuration and only has the local/remote playback in the Camera Configuration.

  • Page 191: Deleting A User

    User Manual of DS-7200/7300/8100-SH Series DVR • Local Advanced Operation: Operating HDD management (initializing HDD, setting HDD property), upgrading system firmware, clearing I/O alarm output. • Local Shutdown /Reboot: Shutting down or rebooting the device. Remote Configuration • Remote Log Search: Remotely viewing logs that are saved on the device. •...

  • Page 192: Editing A User

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 13.9 Delete a User Click the icon to delete the selected user. 13.5.3 Editing a User Steps: Enter the User Management interface. Menu > Configuration > User Select the user to be edited from the list. Figure 13.10 Edit a User Click the icon to enter the Edit User interface.

  • Page 193: Changing Password Of Admin

    User Manual of DS-7200/7300/8100-SH Series DVR Figure 13.11 Edit User Interface Edit the user information, including user name, password, level and MAC address. Click the OK button to save the settings and exit the menu. 13.5.4 Changing Password of Admin Purpose: The password of the admin user account can be changed in the User Management menu.
  • Page 194 User Manual of DS-7200/7300/8100-SH Series DVR Figure 13.13 Change Password Enter the old password, check checkbox, enter new password and confirm password on the menu. Click to save the settings and exit the menu.

  • Page 195: Appendix

    User Manual of DS-7200/7300/8100-SH Series DVR C H A P T E R 1 4 Appendix...

  • Page 196: List Of Compatible Hikvision Ip Cameras

    User Manual of DS-7200/7300/8100-SH Series DVR List of Compatible Hikvision IP Cameras Max. Type Model Version Sub-stream Audio Resolution √ √ DS-2CD802NF V2.0 build 090522 704× 576 √ √ DS-2CD892NF V4.0 build 090508 704× 576 √ SD Network DS-2CD7133F-E 352× 288 ×...

  • Page 197: Glossary

    4CIF and the sub-stream having a maximum resolution of CIF. • DVR: Acronym for Digital Video Recorder. A DVR is device that is able to accept video signals from analog cameras, compress the signal and store it on its hard drives.

  • Page 198: Faq

    User Manual of DS-7200/7300/8100-SH Series DVR • Why does my device make a beeping sound after booting? The possible reasons for the warning beep on the device are as follows: There is no HDD installed in the device. The HDD is not initialized. HDD error To cancel the beeping sound and use the device without HDD, enter the Exception Settings interface.
