A.

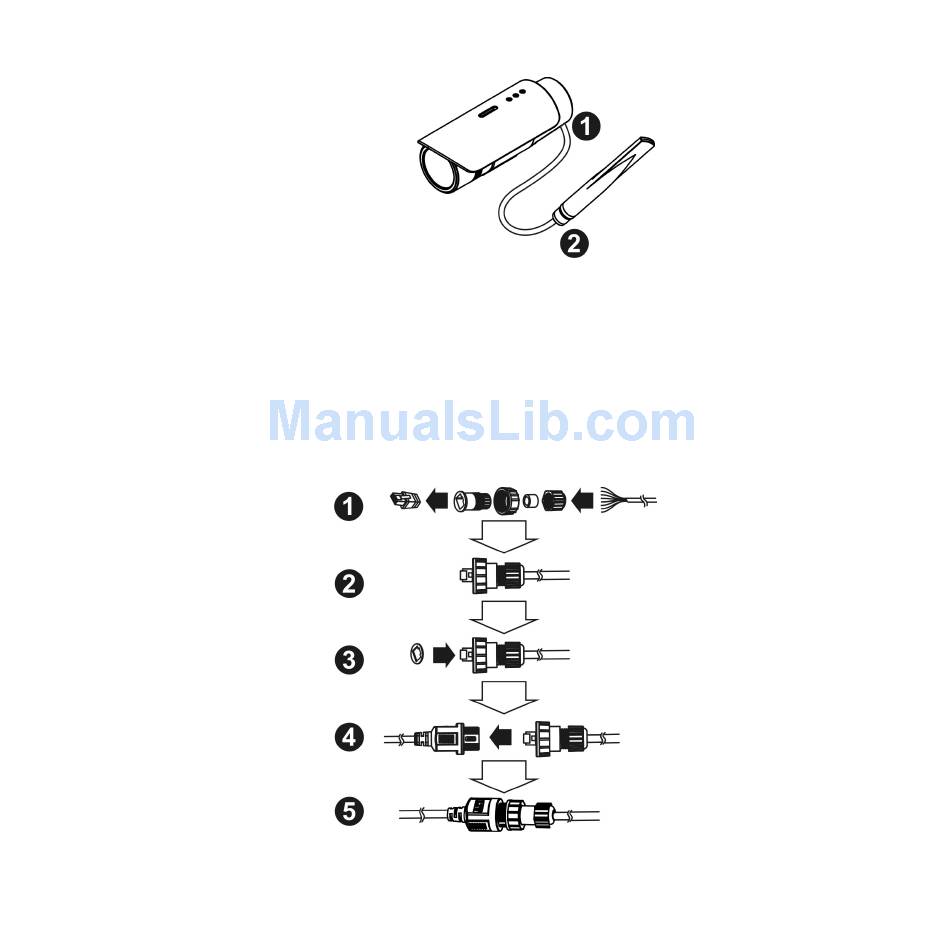

WiFi or 3G Antenna Extension Cable Connection
Pass the Antenna extension cable (1) through and bracket and connect it to the Antenna
connector (2)at the bottom of the camera.
B.
Water Proof Connector
Refer to the installation guide included in the package when installing the Water Proof
connector.
1)
Insert the stripped cable through the sealing nut and the housing. Clamp the cable with
an RJ45 plug.
2)
Push the RJ45 plug into the housing and secure the sealing nut tightly.
3)
Attach the gasket to the front of the housing.
4)
Connect the Ethernet cable to the RJ45 cable.
5)
Secure the connectors tightly.
6
