II.

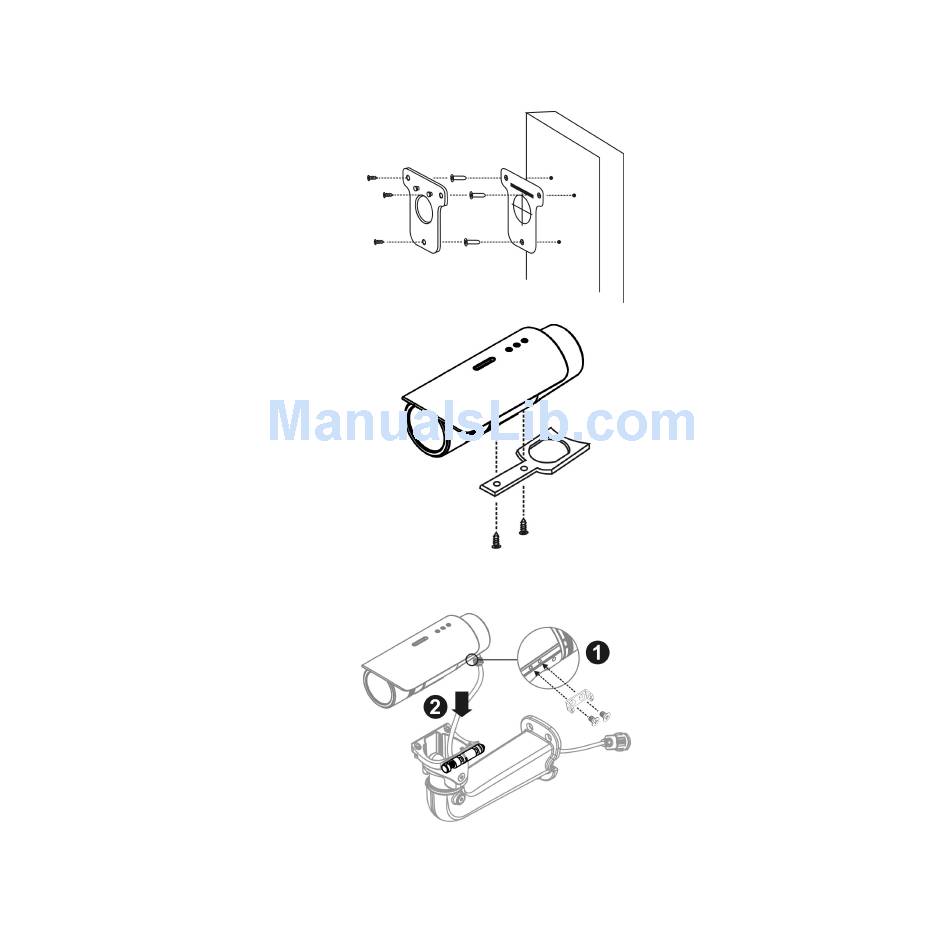

Wall Installation Using the Optional Bracket
1)
Using the Bracket plate as a guide, drill three holes into the wall and hammer the supplied
plastic anchors into the three holes. Use a screwdriver and the supplied screws to secure the
plate to the wall.
2)
Attach the Bracket Assembly Plate to the bottom of the camera using two screws.
3)
(1) Use the two supplied screws to secure the bracket to the side of the camera. (2) Push back
the spring on the mortise lock and hook the camera and attached bracket onto the groove of
the wall mount bracket as shown in the diagram.
4
