4)

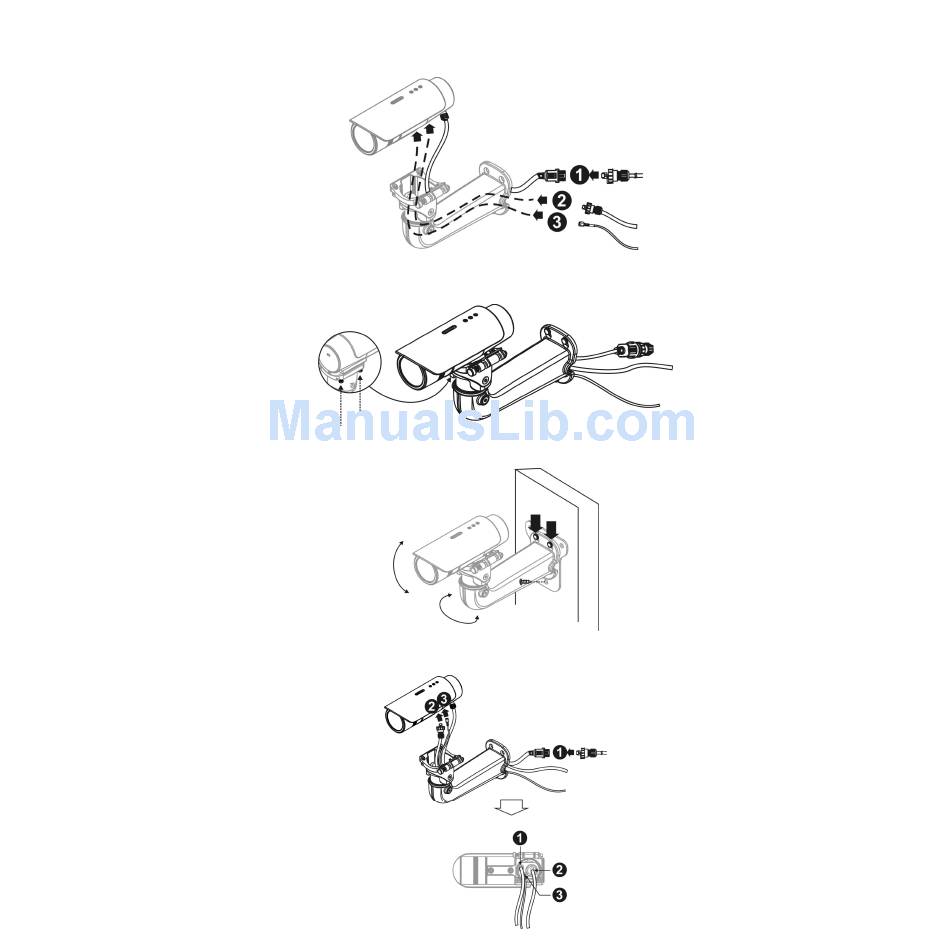

Connect (1) the POE cable; (2) DIDO, Audio In/Out, RS485 cable; and (3) Antenna cable with
the camera. Refer to step 3 for more details installation information.
5)
Secure the two screws on the wall mount bracket.
6)
Place the wall mount bracket on the plate and attach it using the supplied screws. Adjust the
angle of the wall mount bracket towards the area to be monitored.
III. DIDO, Audio In/Out, RS485, and Antenna Connection
5
