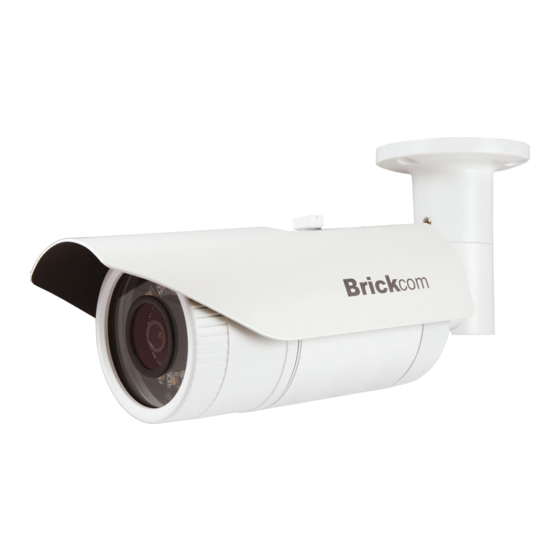

- Page 1 Hardware User’s Manual Megapixel Day & Night Economy Bullet Network Camera English...
-
Page 2: Table Of Contents
Before You Use This Product ..................2 Regulatory Information ....................3 Chapter 1 - Package Contents ..................4 Chapter 2 - Bullet Series Network Camera ..............5 Chapter 3 - Device Appearance Description ............... 6 Chapter 4 - Installation ....................8 4.1 Hardware Installation ................... -
Page 3: Before You Use This Product
Before You Use This Product many countries, there are laws prohibiting or restricting the surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use. -
Page 4: Regulatory Information
Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential... -
Page 5: Chapter 1 - Package Contents
Chapter 1 - Package Contents Please check to make sure the product package contains all the accessories listed below. a. Network Camera b. Screw bag c. Warranty Card d. Dry Bag e. Power Adapter(Optional) f. Product CD g. PoE Injector (Optional) h. -
Page 6: Chapter 2 - Bullet Series Network Camera
Power over Ethernet which enables the camera to use the same cable for power and data transmission, eliminating the need to install an external power supply. With an IP66 certified outdoor enclosure, the Bullet Series is not only water proof, but also dust proof. -
Page 7: Chapter 3 - Device Appearance Description
Chapter 3 - Device Appearance Description < Front Panel > IR LED Lens Light Sensor < Rear Panel > (*) These are optional features. Please refer to the datasheet for the full list of optional features that are available for this product. 1.RJ45 Connector <... - Page 8 <Hardware Reset> FocusEasy / reset button Micro SD Card slot The Reset Button can be used to reboot the camera, restore it to factory default settings, or switch on FocusEasy. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.
-
Page 9: Chapter 4 - Installation
Chapter 4 - Installation 4.1 Hardware Installation WARNING - Do not mount the camera on a soft material. The camera may fall and be damaged. Wall Installation Drill three holes into the wall and (2) hammer the supplied plastic anchors into the three holes.(3) Use a screwdriver and the supplied screws to secure the plate to the wall. -
Page 10: Poe Connection
48V_GND Pin 8 48V_GND 4.3.Camera Connection The Bullet Series PoE compliant. The camera can be connected to a PoE-enabled switch. If using a PoE-enabled switch: Use an Ethernet cable to connect the camera to the PoE switch. If using a non-PoE switch:... -
Page 11: System Requirements
Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch. Use a standard power cable to connect the PoE Injector to a power outlet. iii. 4.4 System Requirements Operating System: Microsoft Windows 8.1/8/7/Vista/XP/2000 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory:... -
Page 12: Software Installation
Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install> and follow the steps to install the EasyConfig wizard on the... - Page 13 B. In the Install Shield Wizard dialog box, click <Next> to continue. C. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
- Page 14 D. Select either “Complete” setup or “Custom” setup to install the system. a. If COMPLETE SETUP is selected: i. All program features will be installed into the default directory. Check the option “Complete” and then click <Next>. ii. Click <Change> to change the appointed folder where installation and program files will be stored.
- Page 15 iii. Select to create shortcuts. Click <Next> to continue. iv. The installation information will be displayed. Click <Next> to continue.
- Page 16 v. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. b. If CUSTOM SETUP is selected: i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s).
- Page 17 iii. Select the features to install. Click <Next> to continue. iv. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue.
- Page 18 v. Select programs to create shortcuts. Click <Next> to continue. vi. The installation information will be displayed. Click <Next> to continue.
- Page 19 E. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
-
Page 20: Easyconfig
If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. A. Click <Start> to continue. The program will automatically search for the camera in the intranet. - Page 22 B. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually.
- Page 23 C. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect. D. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)>...
- Page 24 If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 25 F. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 26 “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X> in the top right corner of the screen to close the installation window. If the user starts the PC-NVR program, please refer to the PC-NVR user manual.
- Page 27 plug-in on the Internet Explorer. Live View...
