5. Configuration
3.
Note:
The following instructions and graphics are based on inverter software version 3.40. Lower
inverter software versions might differ from this.
4.
5.
5
6.
To configure the remotely controlled Power Level Adjustment, choose the 'Active power' subme-
nu.
•
•
•
•
The value entered is set on each inverter and is the maximum percentage of nominal active
power that the inverter is capable of delivering.
12
On the login screen, use:
User: admin
Password: admin
From the footer of the screen, choose 'Security' and log in with minimum security level
1.
Navigate to: Plant level [Setup → Grid management].
Two types of grid management control are available for direct control using the CLX
GM: active power and reactive power.
If both active power control and reactive power control are needed, enable both check
marks and press 'Next' in order to be guided through the configuration screens.

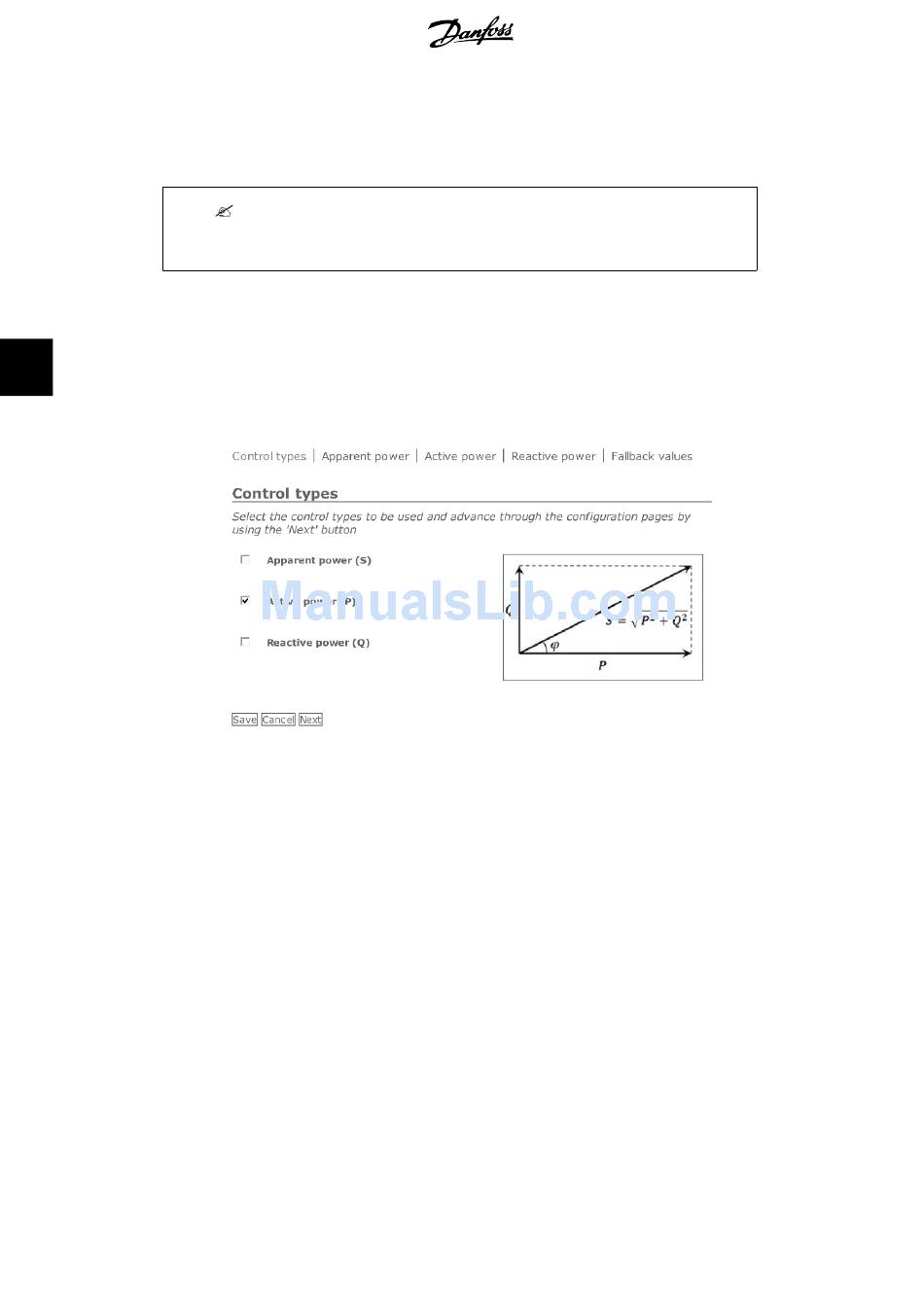

Illustration 5.1: Control Types
Enable the 'Remotely controlled Power Level Adjustment' radio button.
16 possible relay configurations have been preconfigured.
Per default all 4 relay inputs are active.
Following the information provided by your DNO, enter the appropriate power level for
each relay state (0% = off, 30%/60%/100%).
