Cabling Diagram

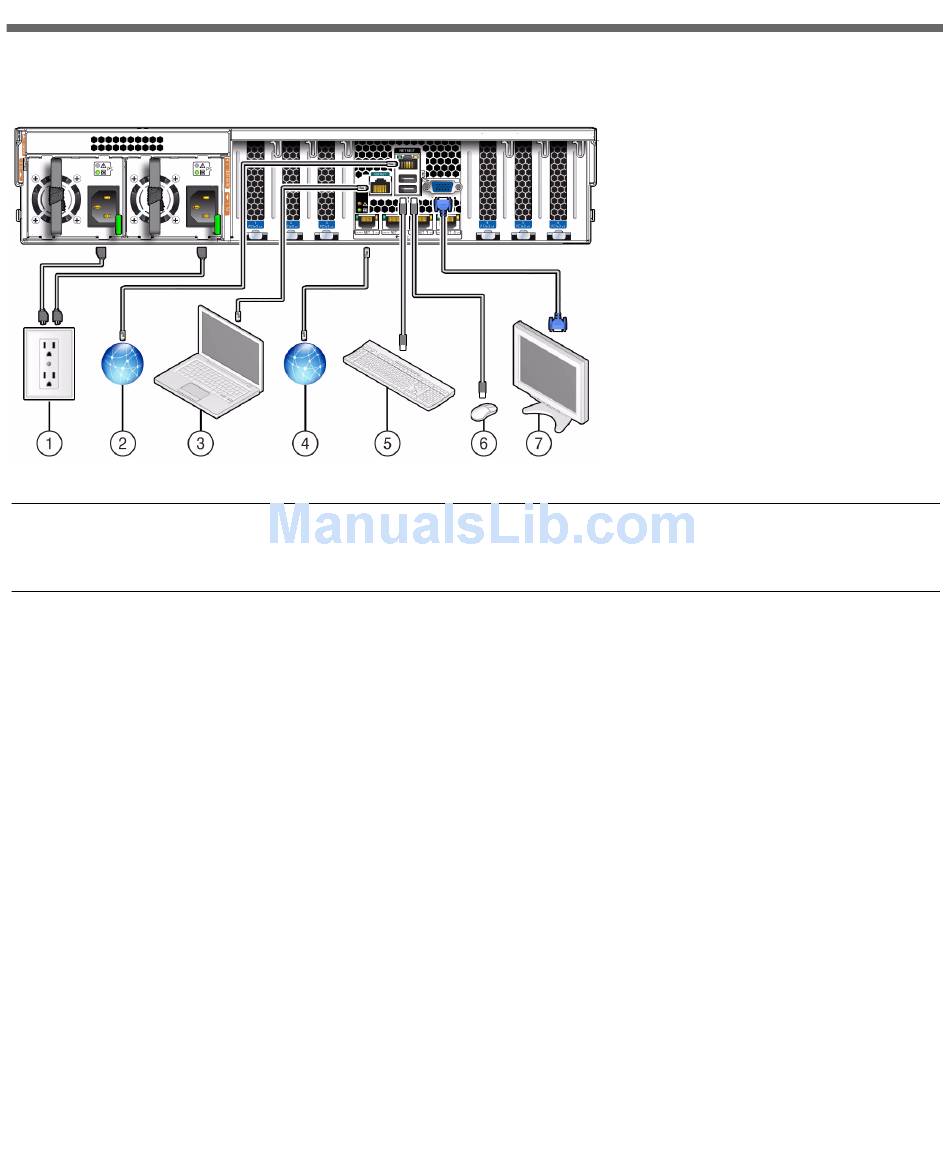

Cabling for the Sun Server X4-2L
FIGURE 1
Figure Legend
1 Power supply 0 input power
Power supply 1 input power
2 Network management port (NET MGT)
3 Serial management port (SER MGT)
▼ 5. Set Up Software and Firmware Using Oracle System Assistant
Oracle System Assistant enables you to update to the latest available firmware and software, easily configure
key server settings, and install an Oracle VM, Linux, or Windows operating system. This is the easiest method
for setting up the server. Oracle System Assistant is embedded in most Sun Server X4-2L systems.
1. Verify that the server is correctly installed in the rack.
2. Verify that a local console connection has been made to the server for Oracle System Assistant;
see "4. Connect the Cables and Power Cords" on page
VGA monitor is connected to the VGA port on the server.
■
Keyboard and mouse are connected to the USB connectors on the server.
■
3. Verify that the server is in standby power mode; see
4. Launch Oracle System Assistant.
a. Press the front panel Power button to power on the server to full power mode.
The server boots, and power-on self-test (POST) and boot messages appear on the monitor.
Be attentive: You need to interrupt the boot process.
b. When prompted in the initial BIOS screen, press the F9 key.
The Oracle System Assistant application boots and the System Overview screen appears, showing system
information, and task buttons in the left pane.
4 Ethernet ports (NET 3, NET 2, NET 1,
NET 0)
5 USB port (USB 0)
6 USB port (USB 1)
3.
"4. Connect the Cables and Power Cords" on page
7 Video port (VGA)
3.
4
