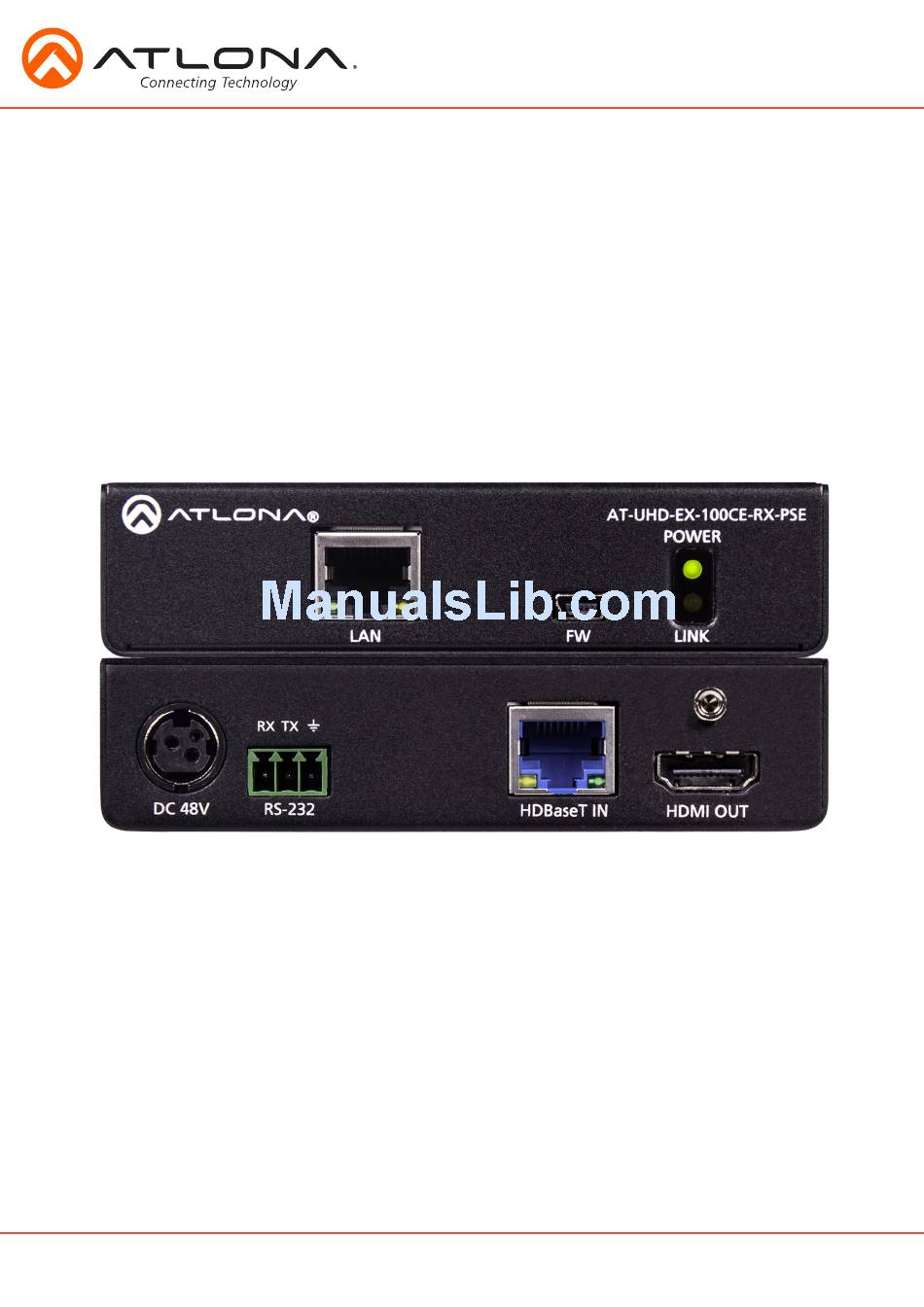

- Page 1 4K/UHD HDMI Over 100M HDBaseT TX/RX with Ethernet, Control, and PoE AT-UHD-EX-100CE-RX-PSE Please check http://www.atlona.com/product/ AT-UHD-EX-100CE-RX-PSE/ for the most recent firmware update or manuals Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Panel Descriptions ................... 5 7. Captive Screw Connectors ................... 5 8. Connection Diagram ................... 6 9. Specifications ................... 7 10. Safety Information ................... 8 11. Warranty ................... 9-10 12. Atlona Product Registration ................... 10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona AT-UHD-EX-100CE-RX-PSE is a 4K/UHD HDMI over 100M HDBaseT™ receiver for AV signals up to 328 feet (100 meters) over category cable with Ethernet pass through, RS-232 and CEC control, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60Hz with 4:2:0 color subsampling, plus embedded multi-channel audio and remote 48V power for the transmitter. -
Page 4: Category Cable
Using the wrong size connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Panel Descriptions
Panel Description AT-UHD-EX-100CE-RX-PSE POWER LINK RX TX DC 48V RS-232 HDBaseT IN HDMI OUT 1. LAN - Connect to a display to pass Ethernet signals 2. FW - Use a Mini-B USB to USB A cable to connect to a computer for updating 3. -
Page 6: Connection Diagram
ETHERNET RESTORE COAX OUT RELAYS WIFI 2 SERIAL 1 AUDIO IN CONTACTS IR OUT VIDEO OUT AUDIO OUT SERIAL 2 Control System AT-UHD-EX-100CE-RX-PSE POWER LINK RX TX DC 48V RS-232 HDBaseT IN HDMI OUT AT-UHD-EX-100CE-RX-PSE Display Video HDBaseT Control SetTop Box... -
Page 7: Specifications
1.06 x 4.69 x 5.00 (inch) Weight Device 0.39 kg 0.86 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC **4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 10: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
