SignaMax OAM Managed Dual Rate Converter Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

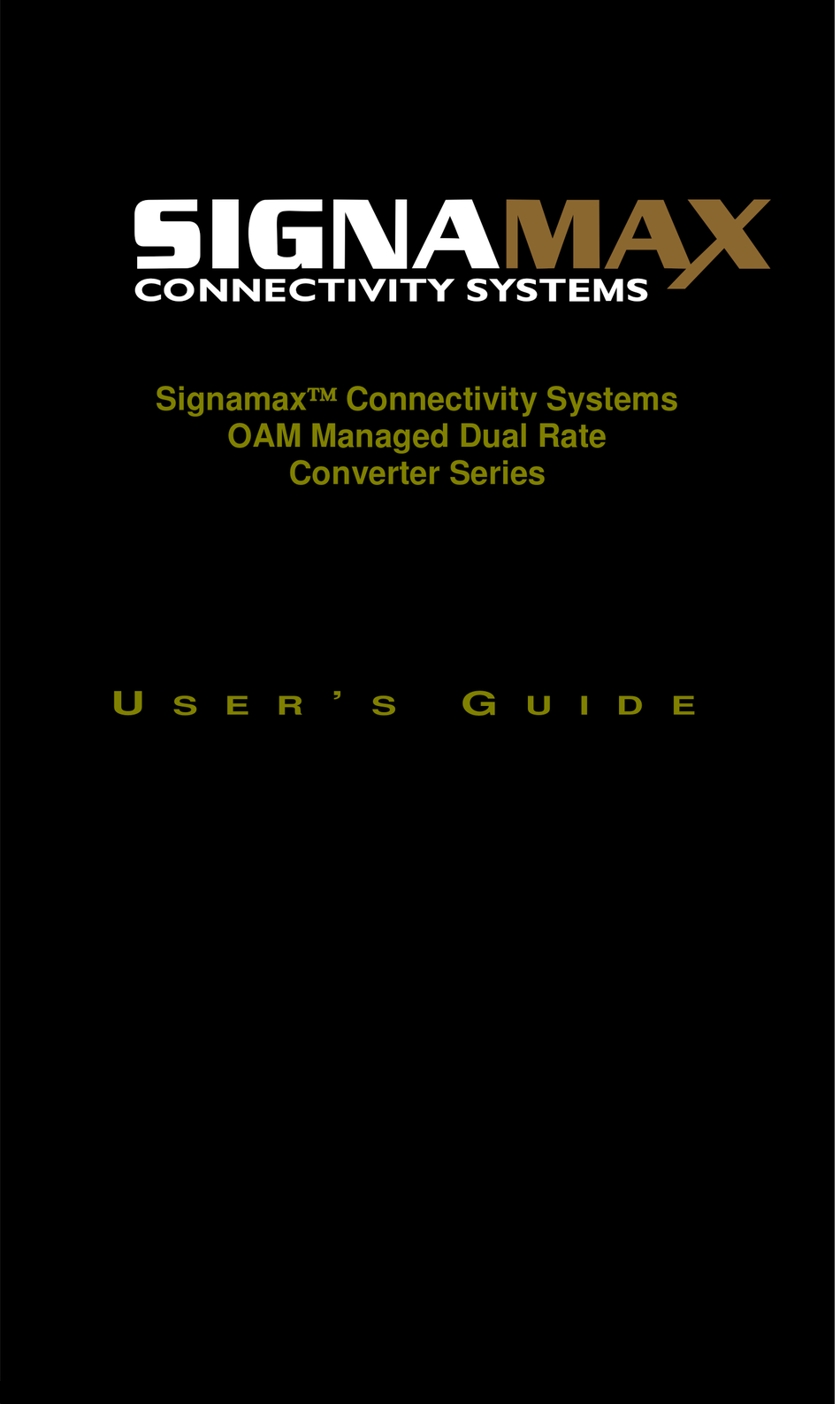

Signamax Connectivity Systems
OAM Managed Dual Rate
Converter Series
U
'
G
S E R
S
U
I
D
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OAM Managed Dual Rate Converter Series and is the answer not in the manual?

Questions and answers

Related Manuals for SignaMax OAM Managed Dual Rate Converter Series

Summary of Contents for SignaMax OAM Managed Dual Rate Converter Series

  • Page 1 Signamax Connectivity Systems OAM Managed Dual Rate Converter Series ’ S E R...
  • Page 2 Signamax Connectivity Systems OAM Managed Dual Rate Converter Series User’s Guide...

  • Page 3: Fcc Warning

    • Ethernet is a trademark of Xerox Corporation. • Microsoft Windows is a trademark of Microsoft Corporation. • Signamax is a trademark of Advanced Electronic Support Products, Inc. User’s Manual...

  • Page 4: Preface

    This OAM Managed Dual Rate Media Converter can be monitored and configured through management via SNMP and Web-based. This manual describes how to install and use the Signamax OAM Managed Dual Rate Media Converter. The Signamax OAM Managed Dual Rate Media Converter introduced here provides one channel media...

  • Page 5: Table Of Contents

    Signamax OAM Managed Dual Rate Media Converter Table of Contents FCC W ............. 1 ARNING CE M ............. 1 ARNING ............... 1 RADEMARKS ............... 2 REFACE ............ 3 ABLE OF ONTENTS ............. 4 NTRODUCTION .......... 4 RODUCT VERVIEW .......... 4...

  • Page 6: Introduction

    Signamax OAM Managed Dual Rate Media Converter Introduction The OAM Managed Dual Rate Media Converter provides one channel for media conversion between 10/100/1000BaseTX to 100Base or 1000Base dual rate fiber interface. Product Overview Product Features • Complies with IEEE802.3 10BaseT, IEEE802.3u 100BaseTX/FX, IEEE802.3ab 1000BaseT, and IEEE802.3z 1000BaseSX/LX.
  • Page 7 Signamax OAM Managed Dual Rate Media Converter • The Media Converter • User’s Manual • AC to DC Power Adaptor User’s Manual...

  • Page 8: One-Channel Media Converter

    Signamax OAM Managed Dual Rate Media Converter One-Channel Media Converter Ports This converter provides one TX port and one dual rate 100BaseFX/BX or 1000BaseSX/LX/BX fiber interface. For the dual rate 100BaseFX/BX or 1000BaseSX/LX/BX fiber interface, it provides options of multi-mode/single-mode or WDM multi-mode/single-mode fiber.

  • Page 9: Reset Button

    Signamax OAM Managed Dual Rate Media Converter Reset Button The reset button is used to reset the web-interface IP or device settings. Reset the device: Insert a paper clip or a similar object into the reset hole to press the reset button.

  • Page 10: Installation

    Signamax OAM Managed Dual Rate Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.
  • Page 11 Signamax OAM Managed Dual Rate Media Converter <NOTE> Never insert any converter into the chassis directly without using the supplied carriers. The carriers allow secure and consistent placement of the converters into the chassis’ backplane without causing any damage. User’s Manual...

  • Page 12: System Configuration

    Signamax OAM Managed Dual Rate Media Converter System Configuration This chapter provides network managers and system administrators with information about how to configure the OAM Managed Dual Rate Media Converter via the Web Browser. Logging on to the Media Converter...

  • Page 13: Main Menu

    Signamax OAM Managed Dual Rate Media Converter Main Menu User’s Manual...

  • Page 14: Network Information

    Signamax OAM Managed Dual Rate Media Converter Network Information It will show local device information and local port status. User’s Manual...

  • Page 15: Local Setting

    Signamax OAM Managed Dual Rate Media Converter Local Setting IP Configuration • DHCP Client: Click “DHCP Client” drop-down menu to choose “Disable” or “Enable” from the “DHCP Client” drop-down list to disable or enable DHCP Client setting for the media converter. You need to set the IP Address, Subnet Mask, and Gateway by self if DHCP Client is disabled.
  • Page 16 Signamax OAM Managed Dual Rate Media Converter Password Setting • Login Name: The factory default login name “admin” can’t be changed. • Old Password: Click in “Old Password” text box and type the old password. You must type the old password into this field if you want to set a new password.
  • Page 17 Signamax OAM Managed Dual Rate Media Converter Converter Configuration • Jumbo Frame (9K): The media converter could pass the max 9KB packet if enable this function. • Link Transparent: If the Link Transparent (Link Fault Signaling) is enabled, the Link Loss Carry Forward will be active.
  • Page 18 Signamax OAM Managed Dual Rate Media Converter queue to guarantee bandwidth when Management Packet High Priority is enabled. Media converter will enable QoS and four queues and set queue 3 as strict priority if enable this function. All management packets such as 802.3ah OAM and SNMP packets will be in...
  • Page 19 Signamax OAM Managed Dual Rate Media Converter Port Configuration • Mode: Click “Mode” drop-down menu to choose “Auto Speed”, “1000 Full”, “100 Full”, “100 Half”, “10 Full”, “10 Half” from the “Mode” drop-down list for TP port. And click “Mode” drop-down menu to choose “Auto Speed”, “1000 Full”, “100 Full”...
  • Page 20 Signamax OAM Managed Dual Rate Media Converter automatically if the ingress rate limit is not divided by 64, for example 65. • Egress Rate Limit (kbps): Click “Egress Rate Limit” drop- down menu to choose the egress rate limit from the “Egress Rate Limit”...
  • Page 21 Signamax OAM Managed Dual Rate Media Converter MIB Counter This page shows local device’s MIB counters. • Clear: All MIB counters will be cleared to zero if click “Clear” button. • Refresh: Click “Refresh” button to show the current MIB counters again.
  • Page 22 Signamax OAM Managed Dual Rate Media Converter SNMP Configuration • SNMP Ability: Click “SNMP Ability” drop-down menu to choose “Disable” or “Enable” from the “SNMP Ability” drop-down list to disable or enable SNMP functions. • Trap Mode: Click “Trap Mode” drop-down menu to choose “Disable”...
  • Page 23 Signamax OAM Managed Dual Rate Media Converter SNMP Community Setting This media converter supports up to 5 SNMP Read/Write Communities. SNMP Read Community: • Add Read Community: Click in “Add Read Community” text box and type a read community name.
  • Page 24 Signamax OAM Managed Dual Rate Media Converter • Clear Write All: Click “Clear Write All” button to clear all write community names. • Apply: Click “Apply” button when you finished SNMP Community Setting. User’s Manual...
  • Page 25 Signamax OAM Managed Dual Rate Media Converter VLAN VLAN Group: • VLAN Mode: Click “VLAN Mode” drop-down menu to choose “Disable” or “Enable” from the “VLAN Mode” drop-down list to disable or enable 802.1Q VLAN Group. User could set 16 VLAN entries if enable 802.1Q VLAN Group functions.
  • Page 26 Signamax OAM Managed Dual Rate Media Converter • Egress Link Type: Replace Tag: The media converter will remove VLAN tags from packets then add new tags to them. The inserted tag is the ingress port’s “Default tag”, which is indexed by port “Port based VLAN index”. This is a replacement processing for tagged packets and an insertion for untagged packets.
  • Page 27 Signamax OAM Managed Dual Rate Media Converter Don’t Touch Tag: Do not insert or remove VLAN tags to/from packet which is output on this port. • Port VLAN Entry: Select Port based VLAN index. The number means VLAN table entry index, not VID.
  • Page 28 Signamax OAM Managed Dual Rate Media Converter Q-in-Q • Q in Q Enable: Click “Q in Q Enable” drop-down menu to choose “Disable” or “Enable” from the “Q in Q Enable” drop-down list to disable or enable Q in Q function.

  • Page 29: Remote Setting

    Signamax OAM Managed Dual Rate Media Converter Remote Setting 802.3ah Functions 802.3ah Configuration: • 802.3ah Function: Choose “Disable” or “Enable” to disable or enable 802.3ah function. • 802.3ah Mode: Choose “Passive” or “Active” to set passive or active 802.3ah mode.
  • Page 30 Signamax OAM Managed Dual Rate Media Converter Loopback Test: • Send Packet Number (1~255): Click in “Send Packet Number” text box and type packet number to be sent. • Packet Length (Not include CRC) (60~1514): Click in “Packet Length” text box and type packet length.
  • Page 31 Signamax OAM Managed Dual Rate Media Converter 802.3ah Status: User’s Manual...
  • Page 32 Signamax OAM Managed Dual Rate Media Converter This page shows 802.3ah Status Information of the media converter. User’s Manual...

  • Page 33: Tools

    Signamax OAM Managed Dual Rate Media Converter Tools System Reboot • OK: Click “OK” button to restart the media converter. • OK: Click “Cancel” button to cancel the media converter restarting. User’s Manual...
  • Page 34 Signamax OAM Managed Dual Rate Media Converter Save and Restore • SaveToFlash: Click “SaveToFlash” button to save all current configurations to media converter as backup. • LoadFromFlash: Click “LoadFromFlash” button to restore to previous backup configuration. The Web Interface may be disconnected for restoration.
  • Page 35 Signamax OAM Managed Dual Rate Media Converter Firmware Upgrade • Browse: Click “Browse” button to select the location and file of the new firmware image file on your computer. • Upgrade: Click “Upgrade” button. The new firmware image file will be burned into the flash. Reset the media converter to use the new firmware.

  • Page 36: Logout

    Signamax OAM Managed Dual Rate Media Converter Logout • OK: Click “OK” button to logout of the media converter. • OK: Click “Cancel” button to cancel the media converter logout. User’s Manual...

  • Page 37: Specifications

    Signamax OAM Managed Dual Rate Media Converter Specifications Applicable Standards IEEE802.3 10BaseT IEEE802.3u 100BaseTX/FX IEEE802.3ab 1000BaseT IEEE802.3z 1000BaseSX/LX Fixed Ports 1 10/100/1000BaseTX port 1 dual rate 100BaseFX/BX or 1000BaseSX/LX/BX fiber interface Speed 10BaseT 10/20Mbps for half/full-duplex 100BaseTX 100/200Mbps for half/full-duplex...

  • Page 38: Contact Information

    Signamax OAM Managed Dual Rate Media Converter Contact Information SIGNAMAX CONNECTIVITY SYSTEMS An AESP Company 999 N.W. 159th Drive Miami, Florida 33169, U.S.A. Phone: 305-944-7710 Fax: 305-949-4483 Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201 Http://www.signamax.com E-mail: info@signamax.com User’s Manual...
