Summary of Contents for SignaMax I-1100 Series

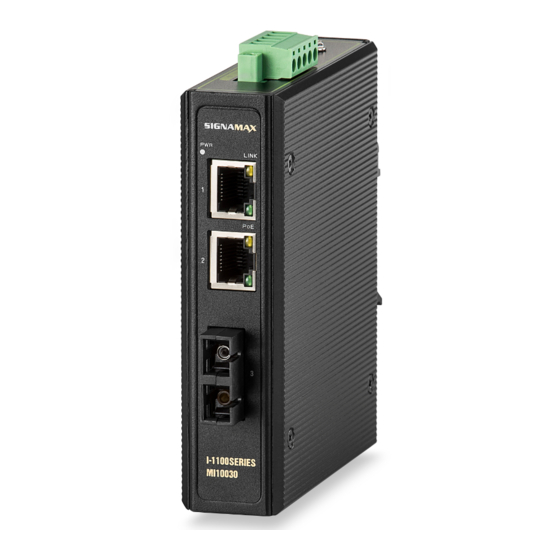

- Page 1 Quick Start Guide I-1100 Series Media Converters...
-
Page 2: Warnings And Cautionary Messages
I-1100 SERIES QUICK START GUIDE Warnings and Cautionary Messages Warning: This product does not contain any serviceable user parts. Warning: Installation and removal of the unit must be carried out by qualified personnel only. Warning: This media converter uses lasers to transmit signals over fiber optic cable. The lasers are compliant with the requirements of a Class 1 Laser Product and are inherently eye safe in normal operation. - Page 3 SC/MM MI10061 2 10/100 SC/SM DIN-Rail Mounting Kit - one bracket and three screws. Documentation—Quick Start Guide (this document) and Warranty Card 1. Screw the DIN-Rail bracket to the media converter. Note: Additional documentation can be obtained from www.signamax.com www.signamax.com...
- Page 4 2. Insert the top of the DIN-Rail bracket to the DIN-Rail 3. Pull down the DIN-Rail bracket to the DIN-Rail track track. and check if it is mounted tightly on the DIN-Rail track. www.signamax.com...
-
Page 5: Connect Power
I-1100 SERIES QUICK START GUIDE Ground the Media Converter Connect Power 1. Ground the device using the ground point in the terminal block and chassis grounding screw PWR 2 PWR 1 (available only on certain models). Contact the appropriate electrical... -
Page 6: Connect Network Cables
I-1100 SERIES QUICK START GUIDE Verify Media Converter Operation 1. Verify basic converter operation by checking the system LEDs. When operating normally, the Power LED should be on and green. Connect Network Cables 1. For RJ-45 ports, connect 100-ohm Category5, 5e or better twisted-pair cable 2. - Page 7 I-1100 SERIES QUICK START GUIDE Status Description Media converter operating normally. No DC power is connected or the media converter has failed. Port has a valid link LINK BLINKING Port has network activity The link is down A PoE device is connected and delivered PoE power...
- Page 8 CONNECT WITH US 999 NW 159th Dr, Miami, FL 33169 www.signamax.com 800.446.2377 / 305.944.7710...
